In the world of industrial filtration, bag filter housings play an essential role in ensuring the quality and purity of liquids and gases. Whether you’re dealing with water, chemicals, or even oil, these housings are designed to trap contaminants, leaving you with a cleaner and safer output.

But like any piece of machinery, a bag filter housing needs to be handled with care and precision. From installation to maintenance, every step is crucial in ensuring its optimal performance. This blog post serves as your comprehensive guide to mastering bag filter housing, empowering you to operate and maintain it with ease.

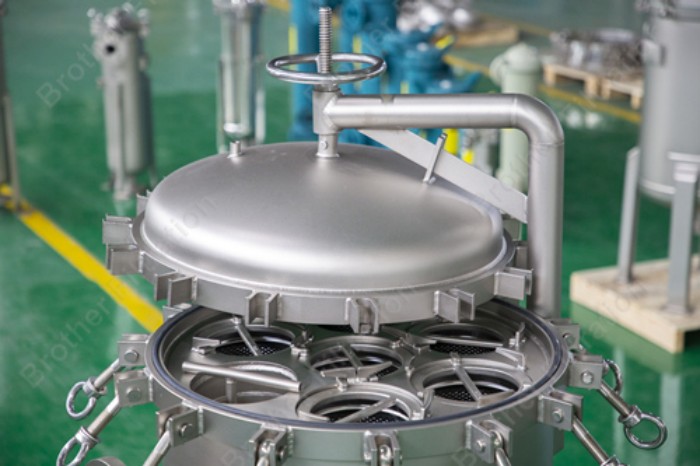

guide to mastering bag filter housing

Understanding Bag Filter Housing

Bag filter housing is a critical component in many industrial processes, ensuring the purity and quality of liquids and gases. This section delves into the mechanics of bag filter housing, explaining its purpose, components, and functionality.

Purpose

The primary purpose of a bag filter housing is to remove contaminants from liquids or gases, ensuring they meet specific purity or quality standards. This process is crucial in industries such as food and beverage, pharmaceuticals, chemicals, and water treatment.

Components

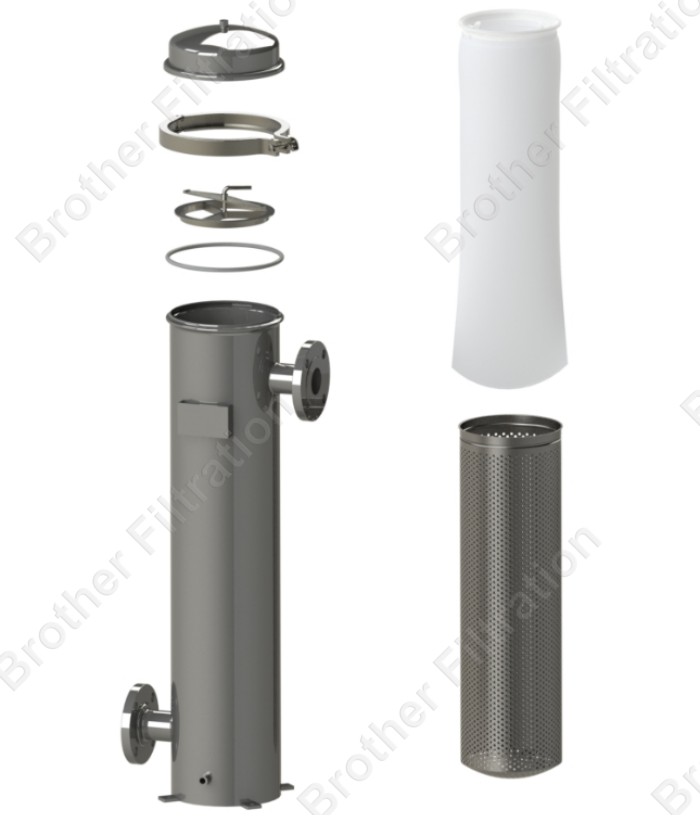

Components of bag filter housing

A bag filter housing consists of several key components that work together to achieve effective filtration:

  • Filter Bags: These are the heart of the system, capturing particles and contaminants as fluids pass through them.
  • Basket: This component supports the filter bag and helps distribute the flow evenly.
  • Inlet and Outlet Connections: These are the entry and exit points for the fluid being filtered.
  • Pressure Gauges: These gauges monitor the pressure drop across the filter, indicating when the bag needs to be replaced.
  • Drain Port: This allows for easy removal of collected debris and contaminants.
  • Mounting Feet: These provide stability and support for the housing.

Functionality

The functionality of a bag filter housing can be broken down into three main steps:

1. Filtration: As the fluid passes through the filter bag, contaminants are captured, leaving behind a cleaner fluid.

2. Accumulation: Over time, the filter bag accumulates debris and contaminants, reducing its efficiency.

3. Replacement: When the pressure drop across the filter reaches a certain level, it indicates that the bag needs to be replaced. This is typically done during routine maintenance.

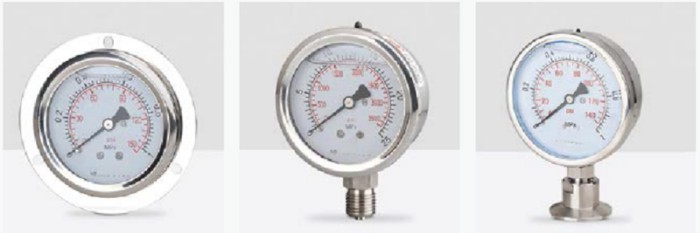

When the pressure drop across the filter reaches a certain level, it indicates that the bag needs to be replaced

Operating a Bag Filter Housing

Operating the bag filter housing is essential for maintaining the efficiency and effectiveness of the filtration process. In the following sections, we will provide guidance on operating the bag filter housing, covering pre-installation checks, installation procedures, operational parameters, and daily maintenance tasks.

Pre-Installation

Before installing a bag filter housing, it is important to follow certain steps to ensure a smooth installation process. These steps may vary depending on the specific manufacturer’s instructions and the type of bag filter housing being used. Pre-installation steps may include:

Review the Manufacturer’s Installation Manual

It is essential to thoroughly read and understand the manufacturer’s installation manual for the specific bag filter housing model. The manual will provide detailed instructions and guidelines for proper installation.

Check the Pre-installation Requirements

Before installing the bag filter housing, ensure that the site has proper infrastructure in place, including suitable space, electrical connections, and piping arrangements. It is important to comply with local regulations and safety standards during installation.

Installation Process

The installation process for a bag filter housing typically involves the following steps:

  • Preparation and positioning: Remove any protective caps from the flanges and/or threads of the bag filter housing. Position the housing so that the fluid enters the inlet connection. Ensure that the housing is securely bolted to the floor or mounting structure.
  • Bag filter insertion: Install the appropriate bag filter into the housing according to the manufacturer’s instructions. Verify that the filter fits correctly and there are no gaps or leaks.
  • Connection and alignment: Connect the inlet and outlet piping to the appropriate connections on the bag filter housing. Ensure proper alignment and secure the connections tightly using suitable fittings.
  • Final checks and testing: Inspect the installation for any visible defects or leaks. Perform a pressure test to verify the integrity of the system.

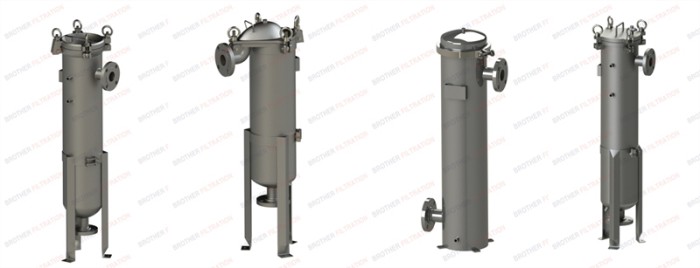

Operating a Bag Filter Housing

Operating Parameters

The operating parameters for a bag filter housing can vary depending on the specific application requirements and the type of bag filter being used. Some common operating parameters include:

Flow rate: The flow rate of the fluid being filtered should be within the recommended range specified by the manufacturer.

Pressure drop: Monitor the pressure drop across the bag filter housing, as increased pressure drop may indicate the need for filter replacement or cleaning.

Operating temperature: The bag filter housing should operate within the specified temperature range provided by the manufacturer.

Routine Operation

To ensure optimal performance and longevity of the bag filter housing, routine operation should include the following:

Periodically inspect the bag filter housing for any signs of damage, leaks, or excessive pressure drop. Replace damaged components and tighten any loose connections.

Replace the bag filter when it becomes clogged or reaches its recommended service life. Follow the manufacturer’s guidelines for proper filter replacement.

Regularly clean and maintain the bag filter housing according to the manufacturer’s recommendations. This may involve flushing the housing, removing any accumulated debris, and checking the seals and gaskets for wear.

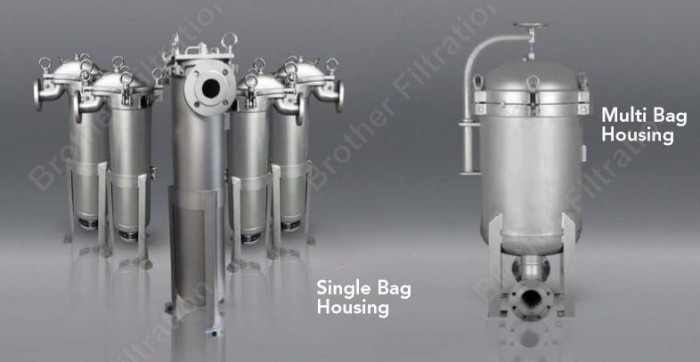

Regularly clean and maintain the bag filter housing

Why Is Maintenance So Important For Bag Filter Housing?

Regular maintenance of bag filter housing is of utmost importance for several reasons. Firstly, maintenance helps to ensure the efficient operation of the filtration system. Over time, the filter bags in the housing can become clogged with debris and contaminants, reducing their effectiveness in removing impurities from the fluid. Regular inspection and cleaning or replacement of filter bags can help restore proper filtration performance and prevent a decline in the efficiency of the system.

Secondly, maintenance contributes to the longevity of the equipment. By keeping the filter housing clean and well-maintained, the risk of damage to the housing and its components is reduced. Regular lubrication of moving parts, checking and tightening gaskets and seals, and replacing worn-out parts can help prevent costly breakdowns and extend the lifespan of the bag filter housing.

Furthermore, proper maintenance helps to ensure the safety and reliability of the filtration process. Regular inspections can detect any potential leaks, damages, or malfunctions that may compromise the integrity of the system1. Timely maintenance and replacement of worn-out parts help to minimize the risk of equipment failure, which could lead to unplanned downtime, production losses, and potentially hazardous situations.

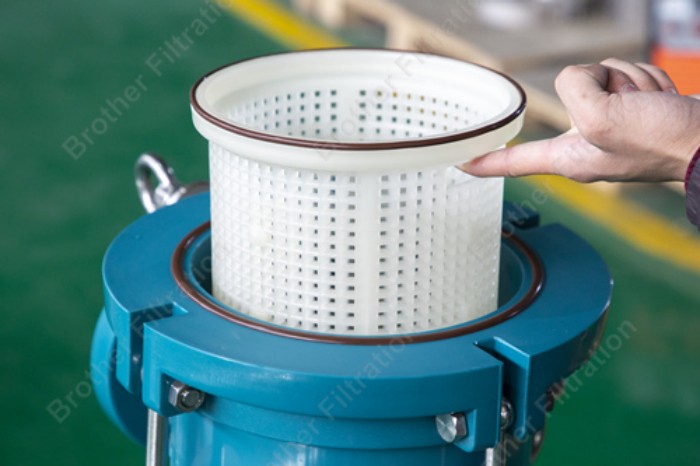

Why Is Maintenance So Important For Bag Filter Housing

Maintenance of Bag Filter Housing

Bag filter housings are equipment used for filtering liquids in many industries, including chemicals, pharmaceuticals, food and beverage, water treatment, and more. Regular maintenance of these housings is crucial to ensure their longevity and optimal performance. Here are some tips for maintaining bag filter housings:

1. Inspect the filter bags regularly. Check if they are torn, damaged, or clogged. Replace any damaged bags immediately.

2. Clean the filter components regularly. Remove the dirt, debris, and contaminants that have accumulated in the system by washing or vacuuming.

3. Check the gaskets and seals. Ensure that they are in good condition and tightly secured to prevent leaks.

4. Lubricate the moving parts. Apply grease or oil to the moving parts of the housing. This will help prevent wear and tear and allow the system to operate smoothly.

5. Replace old or worn-out parts. Identify the parts that are reaching the end of their life span and replace them as required.

Conclusion

Bag filter housings play a critical role in industrial filtration systems, ensuring the effective removal of contaminants from diverse fluids. Proper operation and maintenance of these housings are imperative to achieve peak performance and extend their lifespan.

At Brother Filtration, we offer a diverse range of bag filters featuring various designs, sizes, and types, all tailored to meet your specific needs. With our extensive experience in filtration, we prioritize the quality of our products and services above all else. Get in touch with us today to discover how we can enhance your filtration processes!
