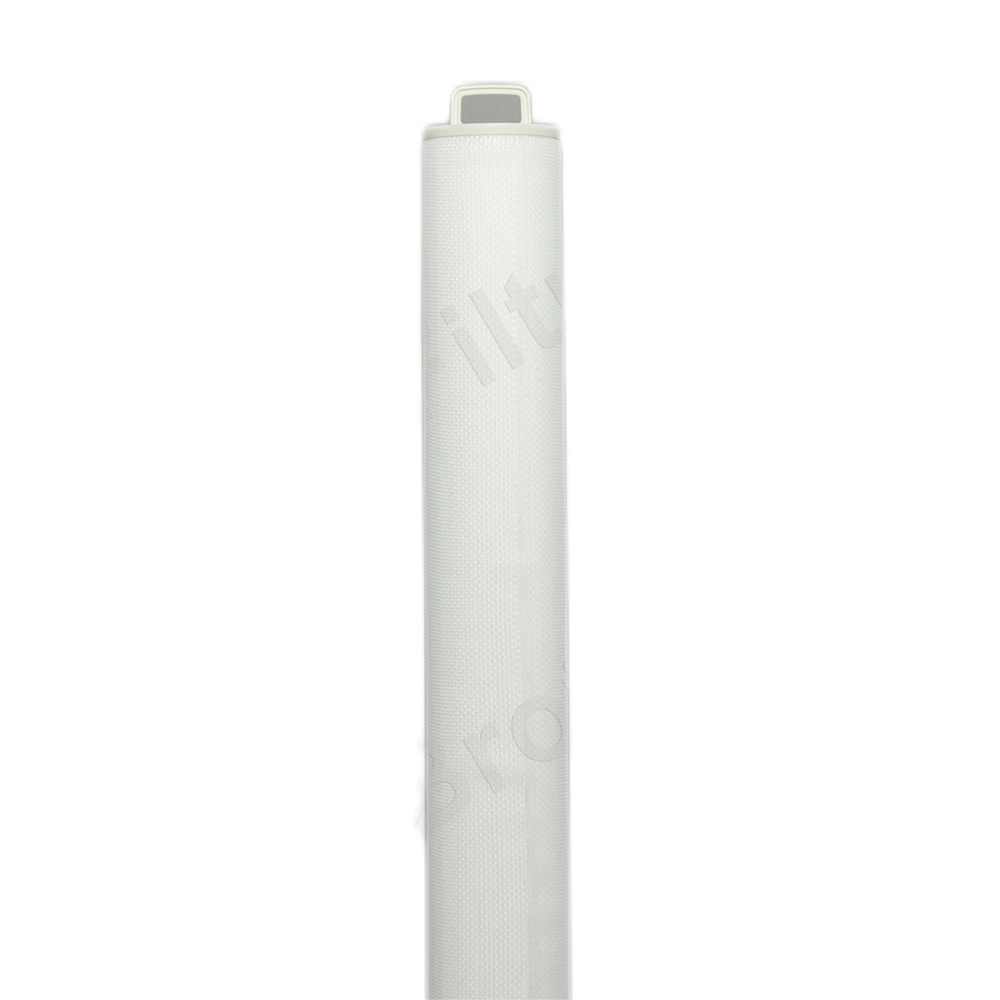

Max-G High Flow Filter Cartridge

Max-G High Flow Filter Cartridge

Description

Features of Max-G High Flow Filter Cartridge

Polypropylene Construction

Ultra lower differential pressure, saving O&M costs

Positive 226 O-ring seal assures filtration integrity Integrated handle makes change-outs fast, easy and safe Manufactured with strict quality control



Applications of Max-G High Flow Filter Cartridge

Deep well injection

Oil & Gas

Commercial water

Petrochemicals

Food & Beverage

More Description

Filter Media Polypropylene/Cellulose resin Filtration Area 5.3㎡@40inch
Outer Netting Polypropylene Max. Temperature ~70℃
Gasket EPDM / Silicone / Buna-N / Viton Recommended Change-out DP 2.1-2.4bar
Length 20/40inch Max. Flow Rate 70m³/[email protected]
Outside Diameter 6inch(152mm) Recommended Flow Rate 40m³/[email protected]
BHFG -P -PP -20 -N -0100 -E
Model Type Media Material Length Filtration Efficency Micron Rating O-ring
 Max-G High Flow Filter Cartridge P=Pleated
S=String Wound
M=Melt Blown
PP=Polypropylene
CE=Cellulose resin
20=20inch
40=40inch
N=Nominal        A=Absolute(1-20um) 0100=1um
0500=5um
1000=10um
1500=15um
2000=20um
4000=40um
7000=70um
10000=100um
E=EPDM
S=Silicon
V=Viton
B=Buna-N



1 inch =25.4 mm
Notice: Due to filter has variety in design, please contact with BROTHER sales for more information
