Different Types Of Industrial Cartridge Filters

Industrial cartridge filters are essential components in many manufacturing and processing plants. They are used to remove impurities and contaminants from liquids and gases, ensuring that the final product meets the required quality standards.

Understanding the different types of industrial cartridge filters can help you select the right filter for your specific needs, ensuring optimal performance and cost-effectiveness. So, let’s dive in and explore the world of industrial cartridge filters!

What Is Filter Cartridge?

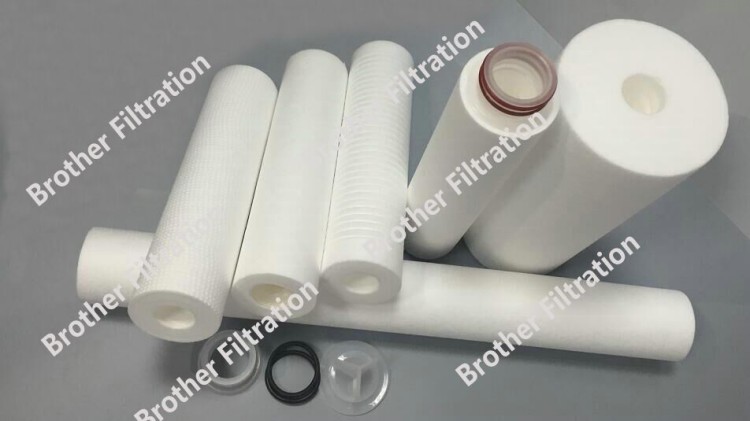

A filter cartridge is an essential part of a filtration system, designed to effectively remove impurities from liquids or gases. They’re usually made of materials such as paper, polyester, or activated carbon and are able to capture particles and contaminants that flow through the fluid. Replacing a filter cartridge regularly is necessary for optimal performance and the prolonged lifespan of any filtration system.

Filter cartridges are commonly used in a variety of applications, including water filtration systems, air purifiers, and industrial processes where clean fluids are required. They come in different shapes and sizes, and the specific type of filter cartridge needed depends on the type of filtration system and the application.

Pleated cartridge filters are used in various industries such as food and beverage, pharmaceutical, and chemical. They are also used in water filtration systems. Pleated cartridge filters are made of pleated paper or cloth to trap contaminants.

Another type of industrial cartridge filter is the wire wound cartridge filter. Wire-wound cartridge filters are made of wire wound to trap contaminants. They are commonly used in water filtration systems as well as in the food and beverage industry.

DOE vs. SOE Cartridge Filters

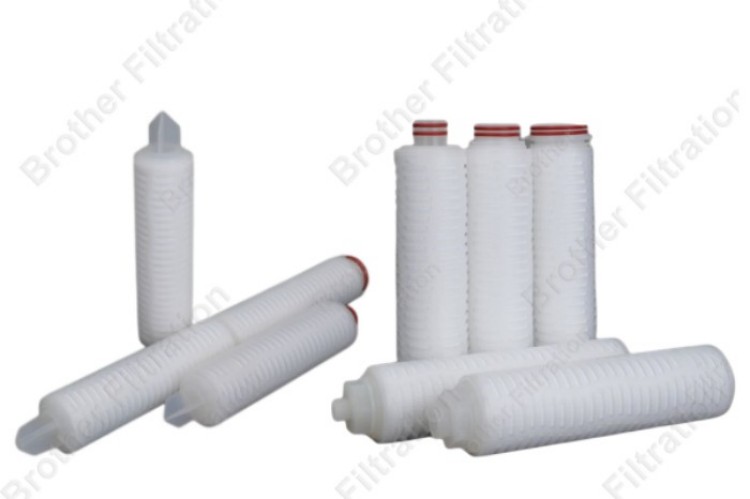

DOE stands for Double Open End. This design is differentiated from other cartridge configurations by its two open ends, which enable a higher flow rate. Sealing of the DOE cartridges is typically executed with an o-ring or gasket. This design is used predominantly in environments where a high flow rate is necessary.

Single Open End (SOE) cartridges are a type of cartridge used for higher filtration levels. They feature one open end and one sealed end, usually with a cap or plug to ensure an air-tight seal. That makes them ideal for applications requiring higher filtration standards.

The main differences between DOE and SOE cartridges are their sealing mechanisms and their filtration capabilities. DOE cartridges are relatively simple to install and replace, they may not be as effective as SOE cartridges at capturing contaminants. On the other hand, SOE cartridges provide more advanced filtration, though may require greater effort when it comes to installation and replacement.

SOE cartridges, on the other hand, provide a higher level of filtration but may be more difficult to install and replace. The choice between DOE and SOE cartridges depends on the specific application and the level of filtration required.

Cartridge Filter Naming Terminology

Cartridge filters are named based on their specific characteristics and properties. Here are some common naming terminologies used for cartridge filters:

Type 222: These elements are usually open at one end and capped at one end. And it has dual gaskets that, when sealed inside a cartridge filter housing, provide better bypass protection than typical DOE cartridges.

Type 226: These elements are sanitary cartridge filters that also have the same double gasket as the Type 222 and also have locking fins to ensure proper filter installation.

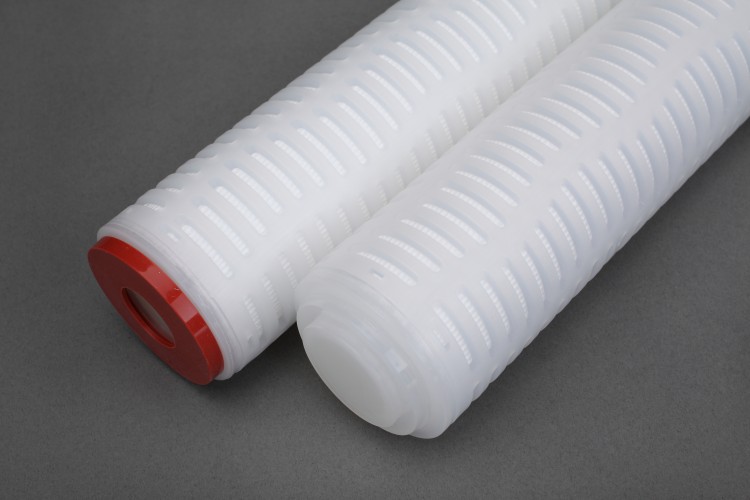

Plat End: These elements are SOE, but are typically used with DOE and Type 222 compatible cartridge filter housings. It also has a flat plastic cover that can be used to seal.

Spear: This is SOE and has a pointed cap instead of a flat one. It utilizes a bracket to eliminate the ability of the cartridge to sway, allowing it to maintain a seal. Type 226 cartridges may also have this end configuration.

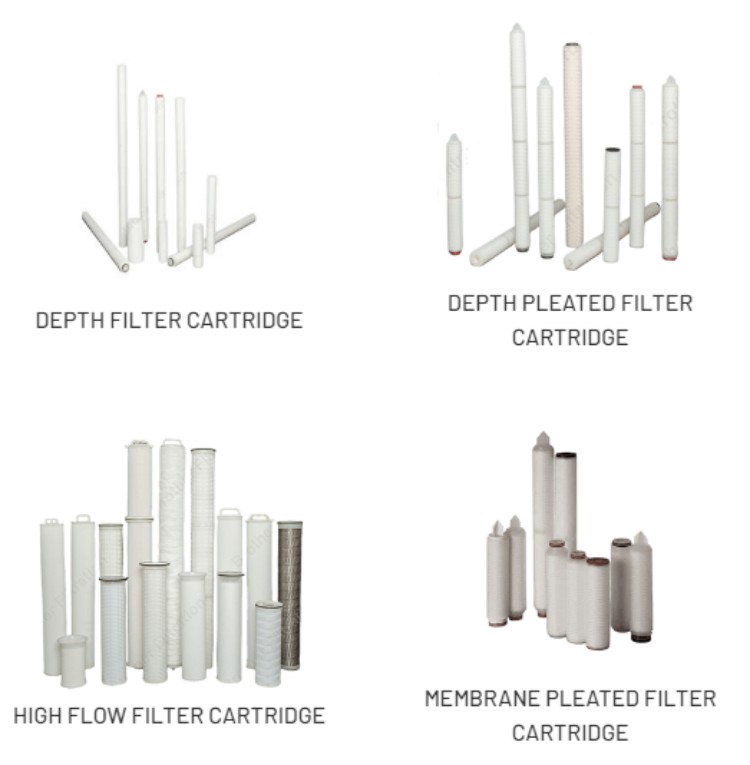

High flow cartridge filters: Those are designed for high flow rates and have a much larger surface area than standard cartridges. They are typically 6.5″ in diameter and 40″ long, with a maximum flow rate of 350 gpm.

Advantages of Industrial Cartridge Filters

Industrial cartridge filters offer several advantages over other types of filtration systems. Here are some of the key advantages:

High Efficiency

Industrial cartridge filters are designed to remove a wide array of unwanted elements from fluids, ranging from sediment and rust to chlorine and other chemicals. By taking out these impurities, our cartridge filters can be used to purify water and other liquids effectively and efficiently.

Cost-Effective

Cartridge filters are a great choice for filtration systems due to their affordability and low maintenance costs. An easier installation process makes them a time- and cost-effective option compared to other systems, such as reverse osmosis or ultraviolet.

Versatile

Cartridge filters can be deployed across a variety of industries and applications, as they come in many different sizes, types, and materials. Through their versatility, these filters are capable of filtering water, chemicals, oils, and other fluids.

Easy to Replace

Cartridge filters are designed to be easy to replace, with many models featuring a simple twist-and-lock mechanism. This makes it easy to replace the filter when it becomes clogged or dirty, without the need for special tools or training.

Environmentally Friendly

Cartridge filters offer a number of advantages for filtration systems, especially when it comes to environmental sustainability. These filters are usually composed of polypropylene or polyester and they can be easily recycled, which makes them an eco-friendly option.

Applications Of Filter Cartridge

Cartridge filters are used in a wide range of applications across different industries to remove impurities and contaminants from fluids, ensuring that the end product is safe and of high quality. Here are some of the most common applications of cartridge filters:

Water Treatment: Cartridge filters are commonly used in water treatment applications to remove sediment, chlorine, and other impurities from water. They are used in both residential and commercial applications, such as in homes, restaurants, and hospitals.

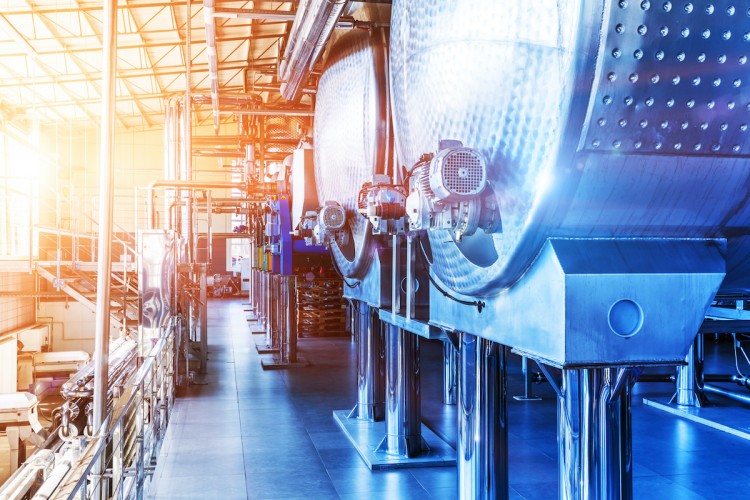

Chemical Processing: Cartridge filters are used in the chemical processing industry to filter chemicals and other fluids. They help to remove contaminants and impurities from the fluids, ensuring that the end product is of high quality.

Food and Beverage: Cartridge filters are used in the food and beverage industry to filter water, juices, and other beverages. They help to remove sediment, bacteria, and other impurities from the fluids, ensuring that the end product is safe and of high quality.

Pharmaceuticals: Cartridge filters are used in the pharmaceutical industry to filter liquids and gases. They help to remove bacteria, viruses, and other contaminants from the fluids, ensuring that the end product is safe for human consumption.

Oil and Gas: Cartridge filters are used in the oil and gas industry to filter oil, gas, and other fluids. They help to remove sediment, sand, and other impurities from the fluids, ensuring that the end product is of high quality.

Conclusion

There are several different kinds of industrial cartridge filters, including SOE, DOE, Type 222, Type 226, flat end, spear, and high flow cartridges. They are highly effective, economical, versatile, and simple to replace. Many industries employ cartridge filters.

With many years of filtration experience, Brother Filtration can design and manufacture all kinds of cartridge filters for diverse industries and applications. Click here to contact Brother Filtration today to discover which cartridge filter is right for you and your application.
