Selecting the right components for an industrial liquid filtration system can be challenging, especially with so many factors influencing its performance. At its core, filtration is about separating impurities from liquids, leaving behind clean filtrate while removing contaminants like dirt, bacteria, or chemicals.
Liquid filtration plays a critical role across industries—from chemical manufacturing to wastewater treatment and beyond. Understanding your system’s specific needs is the first step toward making the right choice.
In this article, Brother Filtration, a trusted leader in filtration solutions, outlines the key factors to consider when choosing a liquid filtration system. Let’s simplify the process and help you find the ideal solution tailored to your requirements.
Industrial liquid filters are components used in industrial processes to remove contaminants from liquids. They separate particles, debris, and harmful substances, ensuring liquids meet required standards. They are used in chemicals, oils, water, and other liquids to protect equipment and maintain liquid quality.
Their function is to capture contaminants, such as dirt, bacteria, or sediments. This keeps liquids clean and suitable for their intended use. In industries, impurities can affect product quality or damage machinery, making filtration essential.
Industrial liquid filters also protect equipment by preventing wear, clogging, or corrosion caused by contaminants. By removing these particles, filters help extend the lifespan of equipment, improve operational efficiency, and reduce the need for frequent maintenance. This contributes to smoother processes and lower operational costs.
Liquid filtration is the process of separating impurities and particles from liquids using a filter medium. The quality and performance of filtration depend on factors such as particle characteristics, filter medium properties and application requirements. Key considerations include:
Particles in liquids vary in size, measured in microns (µm). Larger particles (1 µm or above) tend to remain suspended, while smaller particles (below 1 µm) may settle. Colloidal solutions, with particles ranging from 0.01 to 1 µm, require specialized filtration techniques due to their unique behavior.
The filter media (e.g., mesh, membrane, or depth filters) and its micron rating are critical. A lower micron rating captures finer particles but may reduce flow rates, while a higher rating allows faster flow but may miss smaller contaminants. Balancing these factors ensures efficient filtration.
High-quality filters consistently remove contaminants while maintaining stable flow rates and system pressure. Efficiency depends on the filter’s ability to capture target particles and adapt to varying liquid conditions.
The choice of liquid filtration method depends on the specific needs of the task. Some industries frequently seek the assistance of filtration companies because they specialize in this area. To maximize efficiency, operators must use the correct filtration mode.

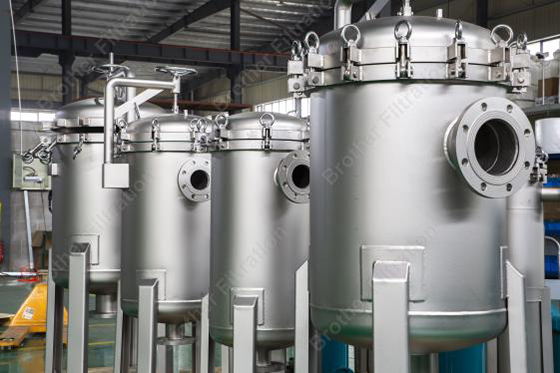

Liquid Filtration systems are divided into two main categories:
Continuous Filtration allows for uninterrupted operation, enabling continuous filtering without stopping the process. Companies engaged in long-term operations often adopt this method because it allows them to clean and purify liquids without halting production. Maintenance and cleaning are performed after the filtration process is complete, ensuring minimal disruption to operations.

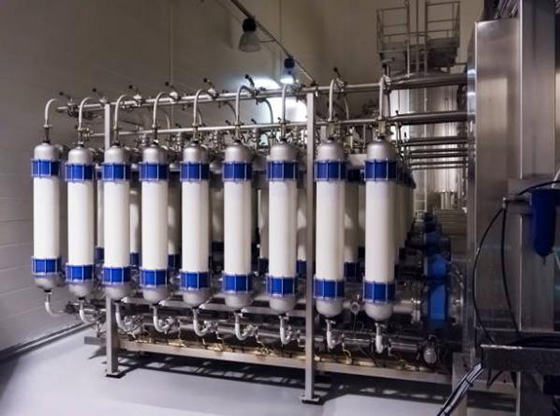

Batch filtration involves processing liquids in separate batches. This method makes it faster and easier to clean and replace damaged components. It is particularly useful for operations that require frequent maintenance or adjustments, as it allows for more flexibility and control over the filtration process.
Operators must ensure compatibility between the filtration media and the liquids being filtered. Industries should follow safety measures and guidelines to prevent harm to plant and animal species, human health, and the environment. This helps reduce contamination risks and industrial accidents.
Operators need to determine if the filtration media and liquid are compatible. Industries must adhere to all provided safety precautions and guidelines. These guidelines aim to reduce industrial injuries and environmental pollution that could affect plant and animal species, as well as humans.
When selecting a filter or filtration technology, consider factors like compatibility, industry standards, and application requirements. Using the wrong filter can damage machinery, increasing costs and risks.
The right filter reduces these risks and ensures efficiency. Filters may also need to meet specific standards, such as NSF/ANSI for water or FDA for food and beverage applications.
When selecting a liquid filter, understanding the operating conditions—particularly pressure and flow rate—is needed for performance and system compatibility. Here’s what to consider:
Every filter has a maximum pressure rating, indicating the highest pressure it can handle before failing. While filters can operate at low pressures without issues, exceeding this limit can cause damage or failure. For self-cleaning or automated filters, staying within this limit helps avoid operational risks.
The flow rate of the liquid determines whether a filter is suitable for the process. Operators should ensure the filter’s maximum flow rate matches the system’s requirements. For example, a filter rated for 200 GPM cannot handle a system operating at 500 GPM, as this will likely cause filter failure. High-flow filters are designed for larger volumes, but always check manufacturer specifications to ensure compatibility.

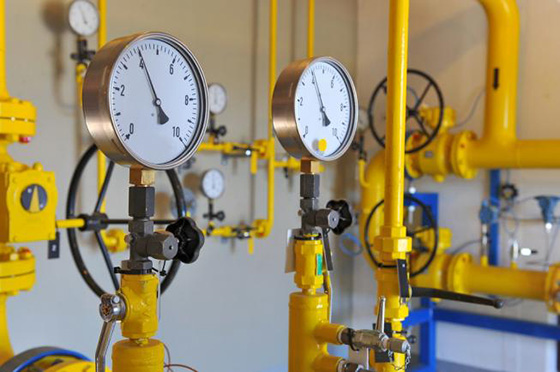

During filtration, resistance to liquid flow, known as pressure drop, occurs. Excessive pressure drop can reduce system efficiency and increase energy costs. Choosing a filter with an acceptable pressure drop ensures smooth operation without compromising performance.
Flow capacity refers to the volume of liquid a filter can handle within a specific time. The filter must accommodate the required flow without causing excessive pressure drop, which can hinder the filtration process and affect system performance.
When selecting an industrial liquid filter, factor in maintenance and replacement costs. Self-cleaning filters reduce labor but may cost more upfront. Disposable filters, like bag filters, are cheaper to replace but may need more frequent changes, raising long-term costs.
Include disposal costs for used filters. Bag filters are less costly to replace than cartridge or reverse osmosis systems. Screen filters, used to protect machinery, require regular cleaning, which can be a concern for smaller teams.
Account for downtime, labor for replacements, and manual cleaning. While cheaper options may seem appealing, balancing price and quality is key. Evaluating total costs—purchase price, maintenance, and operational expenses—helps make better decisions. Investing more upfront can save money by reducing downtime and extending equipment life.
Filters that are easier to clean and last longer reduce maintenance costs and downtime. While initial cost matters, consider total ownership costs, including maintenance frequency, replacements, and potential downtime. Reputable manufacturers provide details on filter lifespan and maintenance, aiding cost-effective choices.
Both strainers and filters remove contaminants from liquids, but they serve different purposes. Choosing the right one depends on the required level of filtration.
Strainers capture larger particles like dirt and debris, preventing clogging and damage to pumps, valves, and pipelines. They are commonly used in high-pressure, high-temperature environments and are made from durable materials such as carbon steel, stainless steel, bronze, or iron. Strainers are easy to clean and maintain, featuring removable mesh or perforated screens.
Use Strainers When:
Filters remove smaller particles and microscopic impurities, ensuring high liquid purity. Industries such as pharmaceuticals, food and beverage, and chemical processing rely on filters for precise filtration. Filters come in various types, including cartridge, bag, and membrane filters, designed for different particle sizes and flow rates.
Use Filters When:
Choosing the right liquid filtration system requires careful consideration of factors such as filtration efficiency, material compatibility, operating conditions, and maintenance needs.
Selecting the appropriate system ensures optimal performance, equipment protection, and regulatory compliance. If you need expert guidance in finding the best solution for your application, contact Brother Filtration today!
