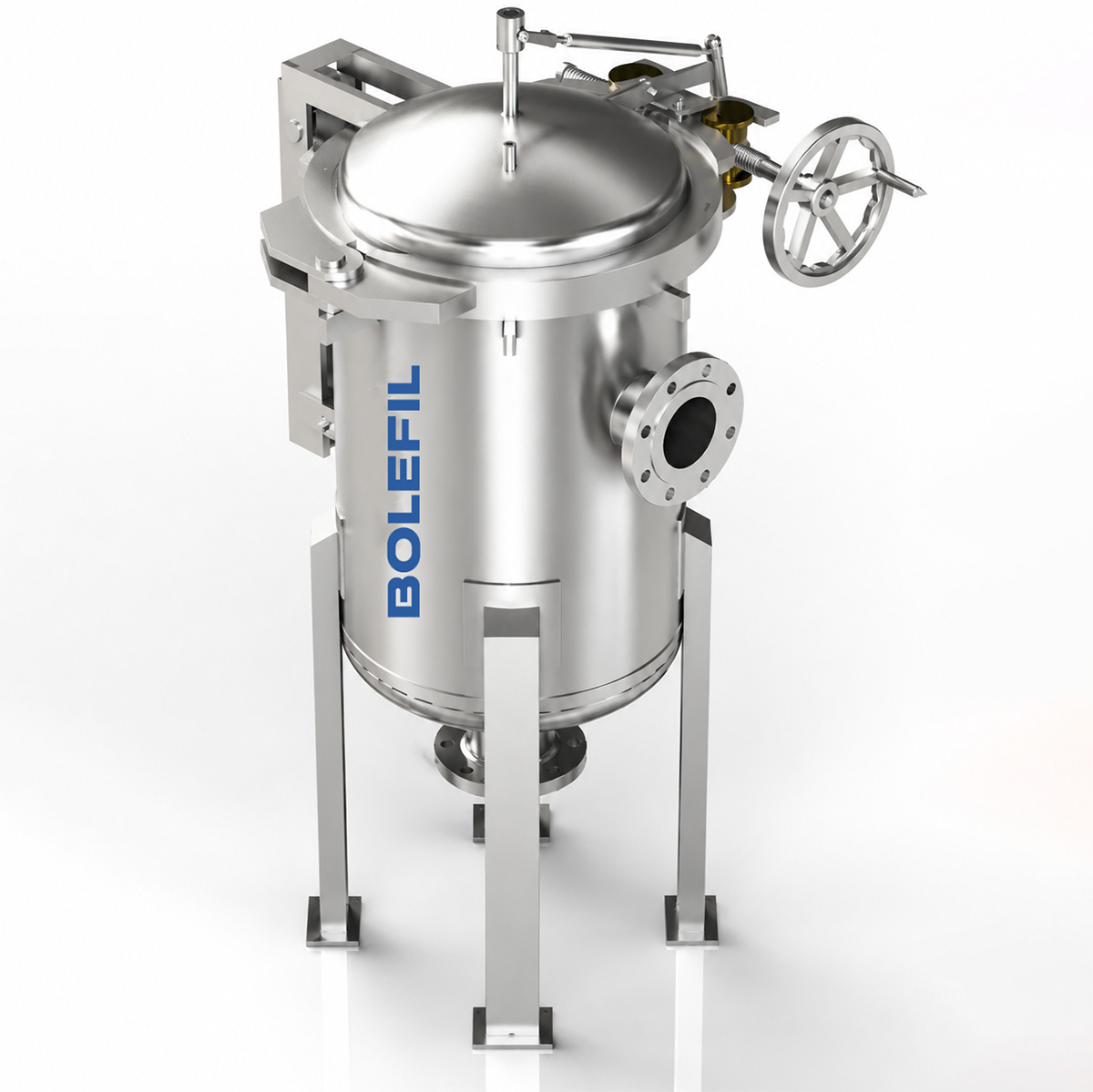

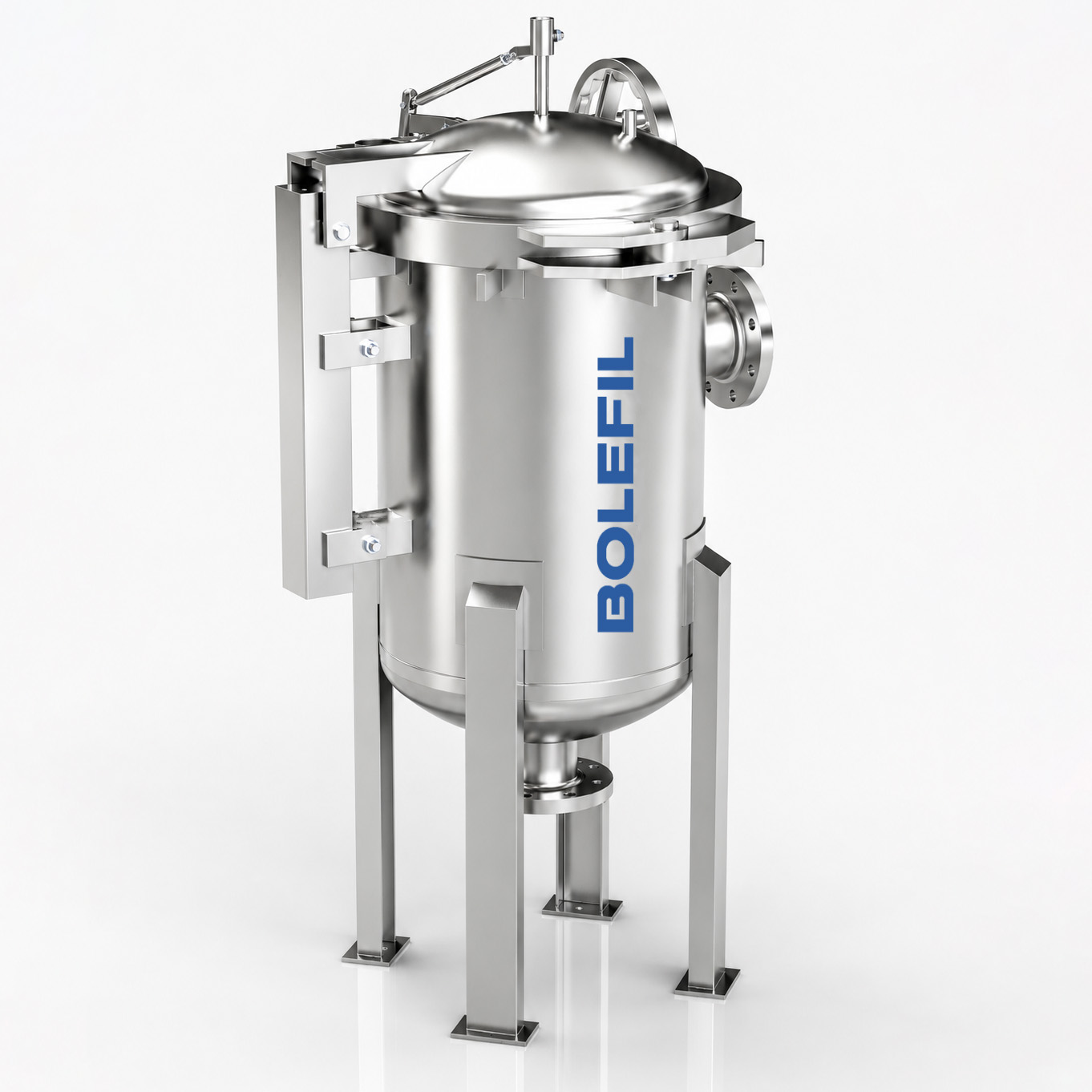

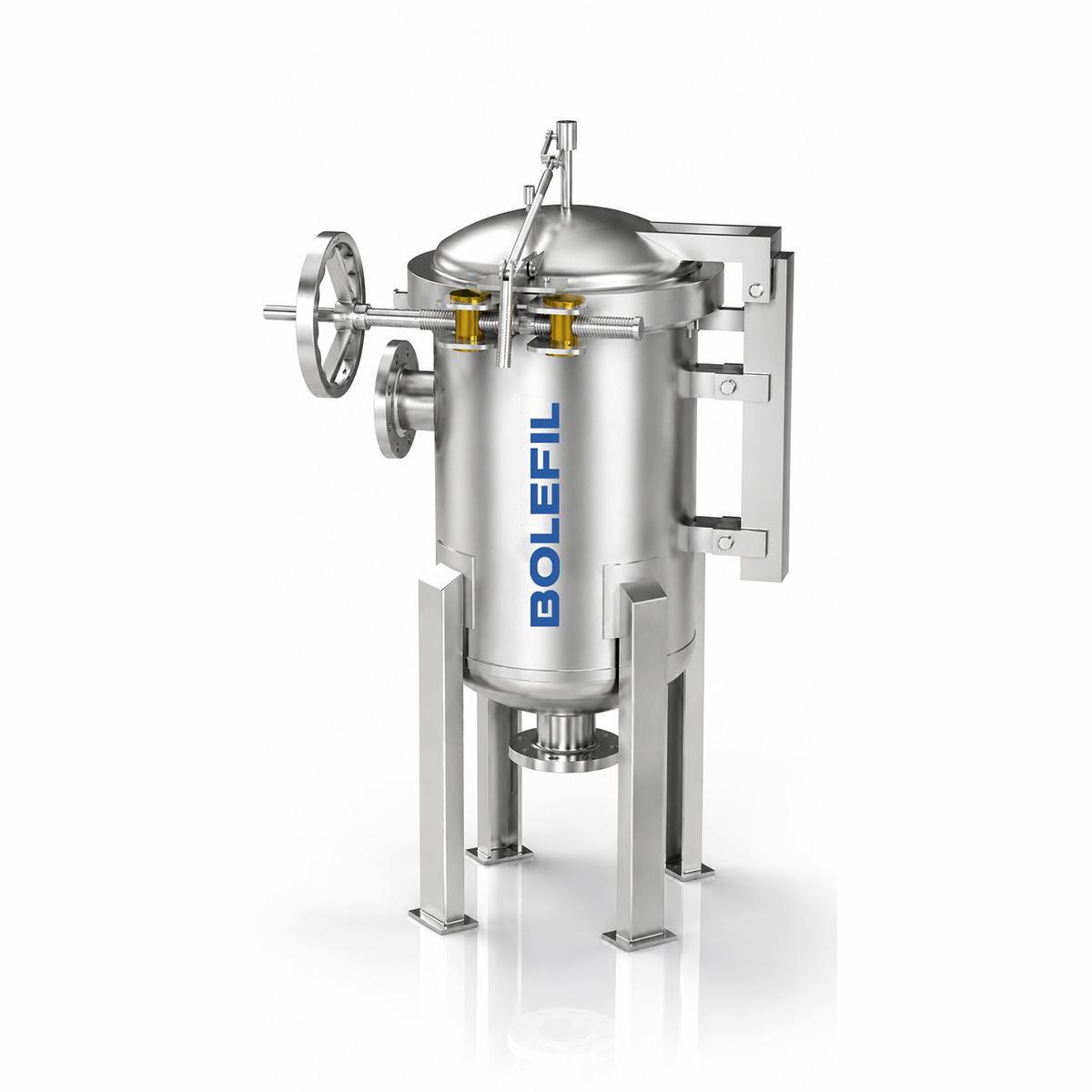

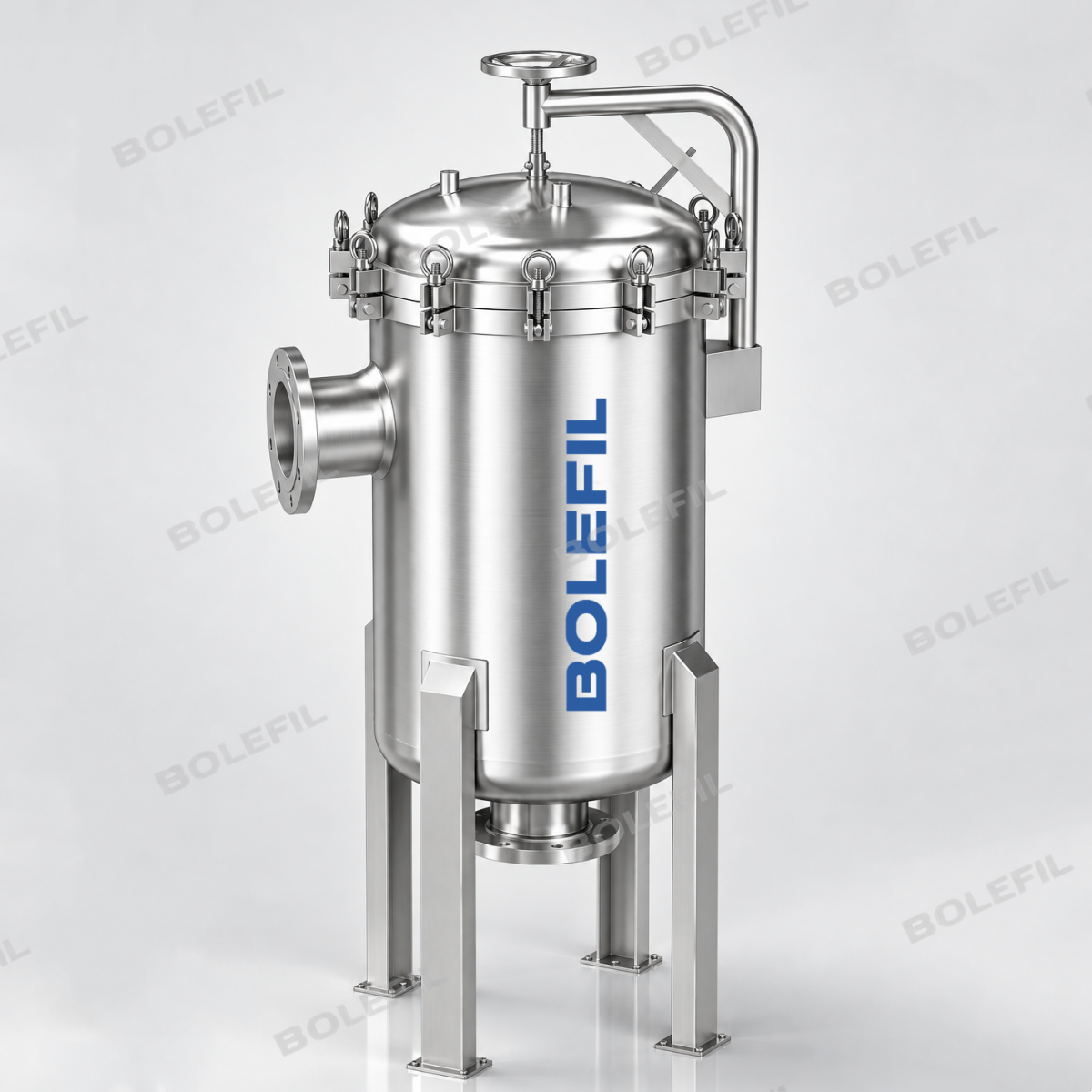

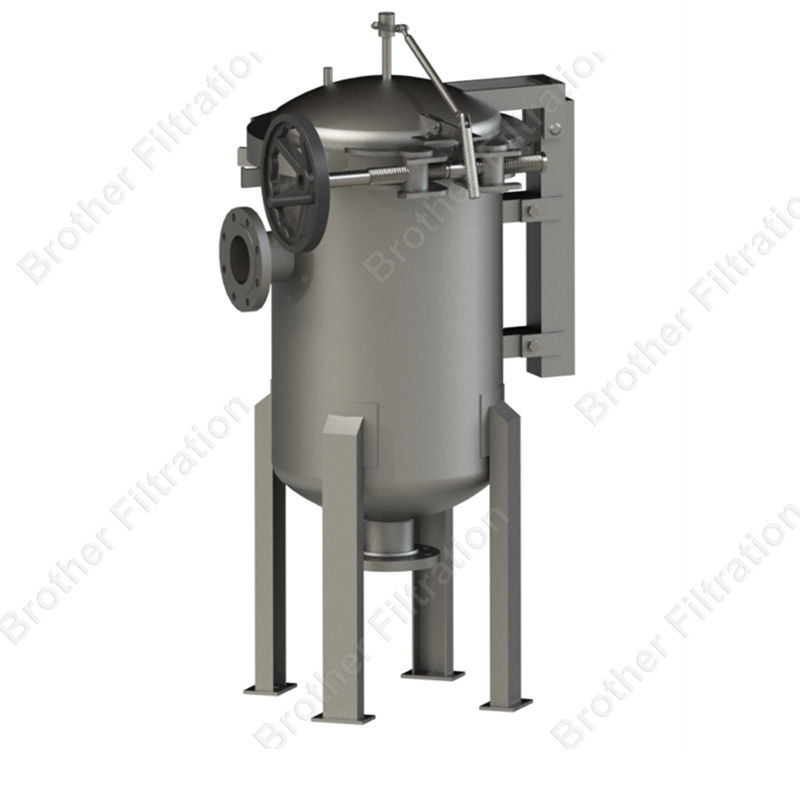

Multi Round Bag Filter Housing

Overview

Typically, the housing of a bag filter is composed of stainless steel, and the inside filter element is filled with PP or PE filter bags or other filter elements. An innovative filtering technology that supports bag filter housing is pressure filtration.

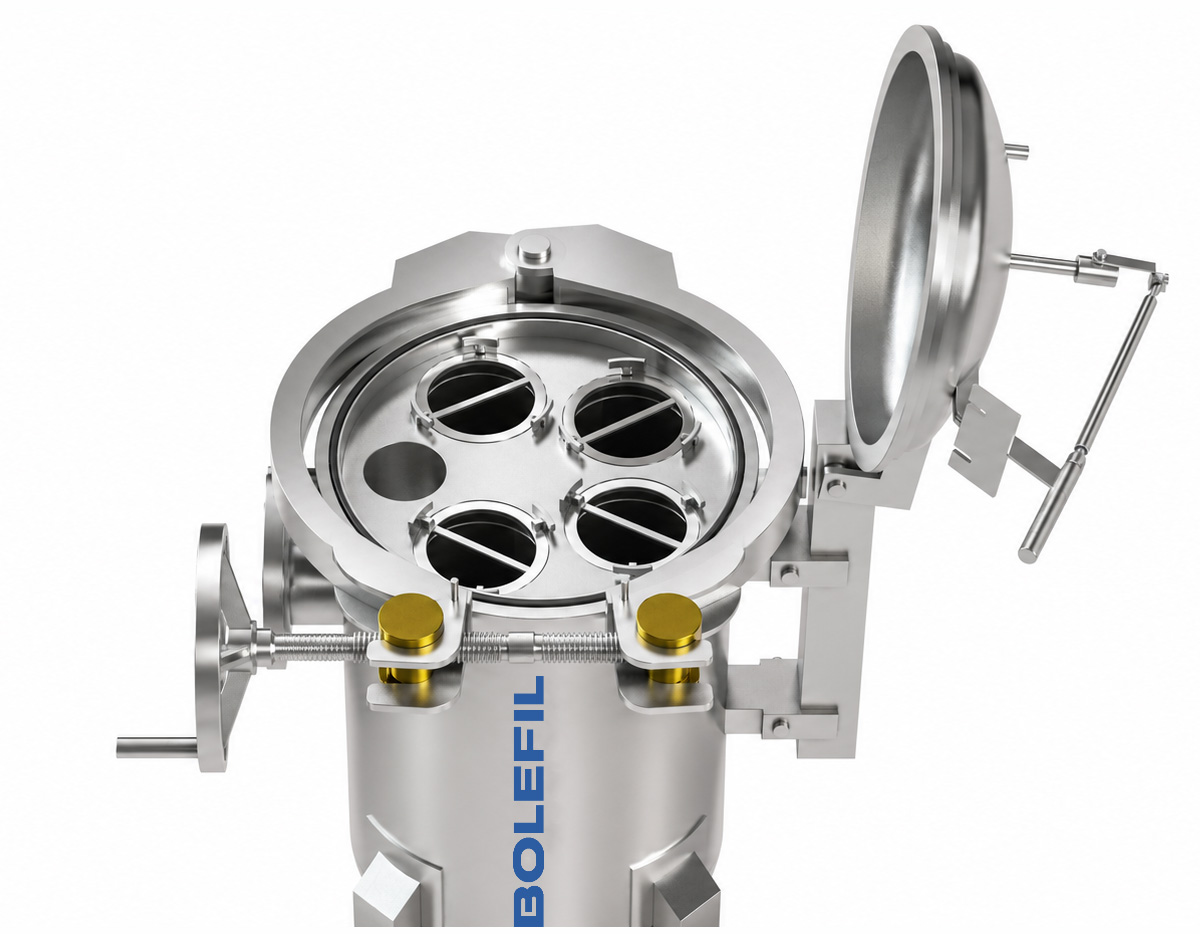

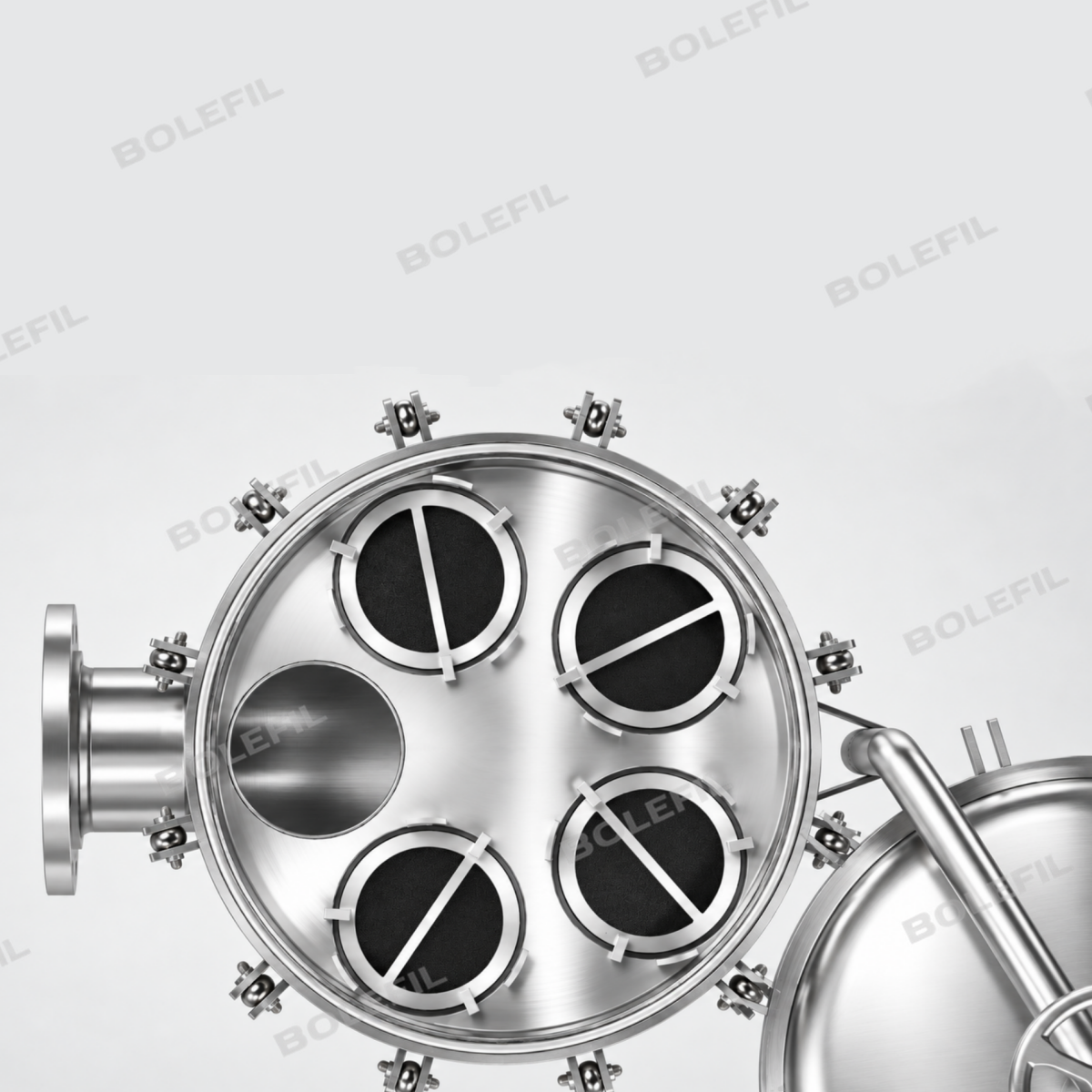

The metal mesh basket holds up the filter bag inside the housing. After passing through the filter bag, the liquids exit through the outlet after entering through the inlet.

Classic Multi Bag Filter Housing is designed for optimum filtration performance. Its range provides filtration solutions for a broad variety of fluid applications in the process industry.

They are particularly useful for filtering large volumes of high viscosity liquids. A bag filter is constructed of the filter housing, and an internal cage can support bags.

The internal support ensures bags will not burst as high differential pressures build up during operation. Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are collected on the inside of the filter bag for easy removal. The filtered fluid then exits through the outlet pipe.

If the original water quality is not very clean, and particles are superabundant, we suggest that the filter can go with only the basket inside without the bag filter element inside. Also,  if the water is very dirty and with too many solids, it is better to go with one strainer as prefiltration before bag filter housings.

No matter the basket strainers or bag filter housings, they both offer a wide range of flow capacities and dirt-holding capabilities. The number of the bag filter element inside is from 2 to 23 pcs.

Brother Filtration always takes the real operation condition into account, that ·permanently piped housing is opened without special tools and without disturbing the piping. And the appropriate design enables it easy and quick to be cleaned. In consideration of seawater treatment, carbon steel (Sprayed with halar) and duplex filter housing is available.

One of the key points of the filter housing is seal performance, we use machined cover gasket groove to provide positive O-ring sealing. Brother Filtration also offers optional hinged filter housings. Additionally, our Classic Multi Bag Filter Housing can accept all major competitive brands of bags.

Brother Filtration all-powerful and competitive Classic Multi Bag Filter Housing that can be widely used in industries such as prefiltration for RO systems, oil & gas, desalination, petrochemicals, food & beverage, and pulp & paper.

Highlights

Brother Filtration always deeply involve in filtration industry, especially high flow filtration. The Classic Multi Bag Filter Housing is one of the typical great solutions for high flow filtration. With its competitive ability, we believe it can satisfy your needs.

  • Accepts all major competitive brands of bags
  • Permanently piped housing is opened without special tools and without disturbing the piping
  • Machined cover gasket groove provides positive O-ring sealing
  • Appropriate design and fabrication make it easy to clean
  • Optional hinged filter housings
  • Optional carbon steel (Sprayed with halar) and duplex filter housing for seawater or corrosion applications

Brother Filtration designs and manufactures our products with heart, the Classic Multi Bag Filter Housing is perfectly suitable for the most of high flow filtration, which can be applied to various applications when matched with all kinds of optional parts.

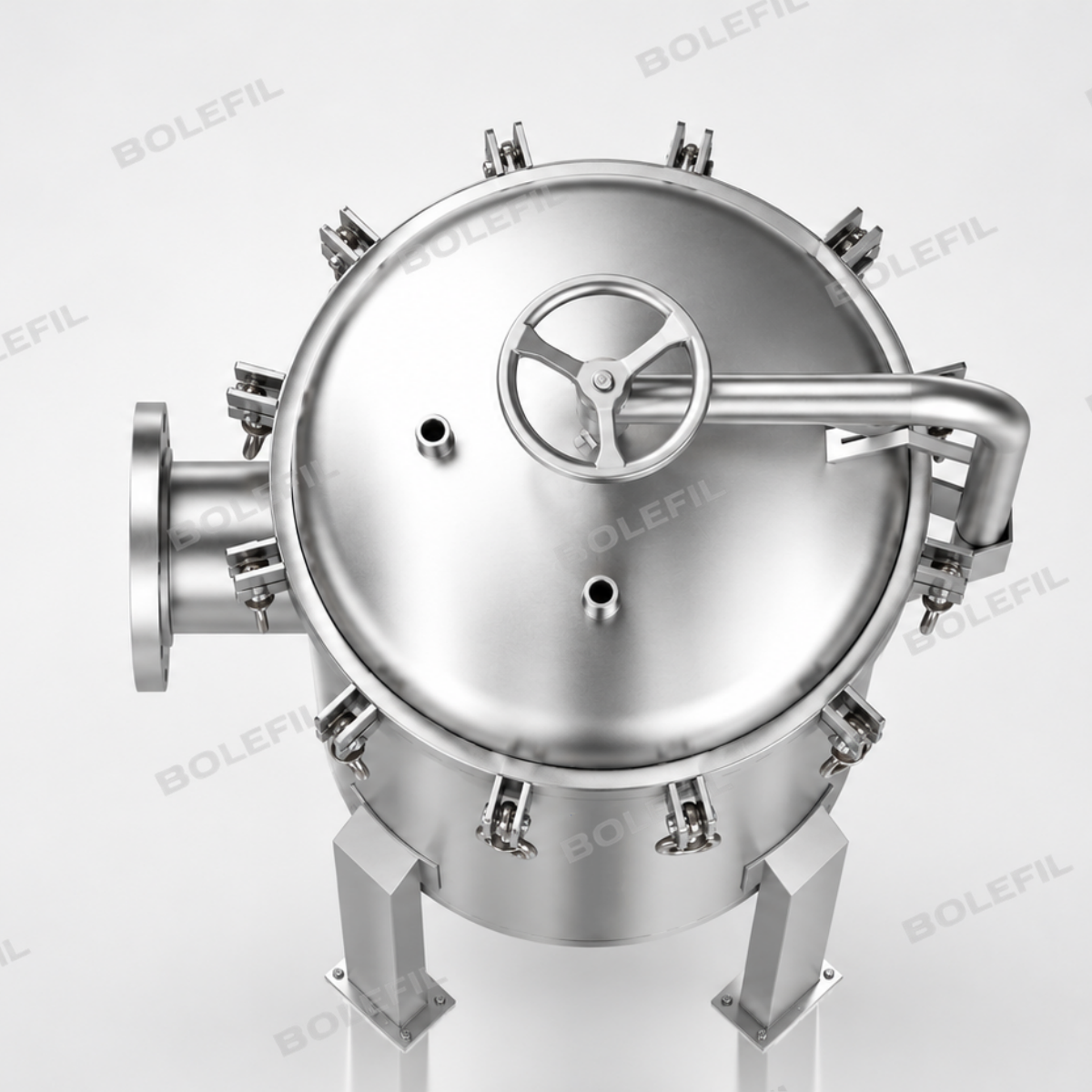

  • Swing bolt with lifting davit ideal for large flow applications
  • Able to contain 2-23 filter bags
  • Thread or Flange inlet & outlet connections allow for easy piping and drain connections permit quick evacuation of housing
  • Design flowrates based on element safety flow rate, liquid type, and viscosity
  • Better seal performance and optimum filtration performance
  • Designed for high flow rates and large volumes
Multi Bag Filter Housing Options Corrosion allowances
Steam jackets
Special connection locations
Bag hold down assembly (standard on Q design)
Inner baskets for dual-stage straining or filtering
Cleanable wire mesh lined or perforated strainer baskets
Special alloy materials
The hydraulic cover lifting assembly
Sanitary fittings
Differential pressure indicators
PED certificated
ASME VIII Section
Corrosion allowances
Special connection locations
Higher Pressure Ratings
Other material Gasket



Material of constructions

Head/Shell/Connections 304L or 316L stainless steel
Optional Carbon Steel, duplex 2205
Davit Handle and Eye Nuts 304L Stainless Steel
Mounting Legs 304L Stainless Steel
Baskets 304L, or 316L stainless steel
Maximum operating pressures 150psi(10 bar)
250psi(16 bar)
Max temperature 120℃ as standard Optional
Standard Inlet/Outlet SORF ANSI #150 Flanges
Optional DIN,JIS,GB
Standard Drain/Vent Ports PT
Optional NPT,BSP
Gaskets Standard EPDM
Optional Silicone, Buna N, Viton
Surface Finishing Interior: Acid/Polishing
Exterior:  Shot blasting/Polishing

Order Information

CMC -E -2 -02 -T -B
Model Material No. of filter bag Filter Bag Sizes Inlet/Outlet connection Gasket materials
Classic Multi Bag Filter Housing E=SS 304L S=SS 316L C=Carbonsteel
D=DuplexL
2
5
8
10
15
18

24
02=Size 2 F=Flange B=Buna N
E=EPDM
S=Silicon
V=Viton
