25 Micron vs. 50 Micron Filters for CDU Systems

In a data center liquid cooling system, the CDU keeps coolant moving between the cooling loop and the heat loads. The coolant is not always as clean as it looks. Small particles can enter the loop during manufacturing, installation, filling, or maintenance, and continue circulating with the coolant.

Cold plates, manifolds, valves, and other components are all part of that coolant path. Particle buildup can become an issue in tighter passages, where there is less room for contamination to pass through without affecting flow.

This is where the choice between 25 micron vs. 50 micron filters starts to matter. A 25 µm filter provides finer particle control. The trade-off can show up in flow and pressure drop, depending on the filter and operating conditions.

What Does a 25 Micron or 50 Micron Rating Mean?

The micron number is only one part of how a filter is specified. A 25 µm filter, for example, does not necessarily perform the same way as another filter with the same rating. Media, construction, filtration area, and the way the rating is established all matter.

Two filters with the same micron rating can have different particle-retention performance depending on their media, construction, filtration area, and rating method. A 25 µm filter should not automatically be understood as removing every particle larger than 25 µm.

The rating needs to be considered together with the filter’s actual efficiency and how that efficiency was determined. Depending on the product, the rating may be described as nominal or absolute, or supported by Beta ratio data under a defined test method.

For data center liquid cooling, the micron rating needs to be considered together with filtration performance and the hydraulic requirements of the system.

Why Particle Size Matters in CDU Coolant Filtration

Particles can enter a liquid cooling system during manufacturing, installation, commissioning, coolant filling, maintenance, or component wear. Once particles get into the coolant, they can remain in circulation throughout the CDU cooling loop. Where they end up matters.

Cold plates are a good example. Their internal channels are relatively small, and the same is true of some manifolds, valves, fittings, and quick disconnects. Particle buildup in these areas can interfere with the intended coolant flow.

The goal of CDU filtration is not simply to remove the smallest particle possible. It is to control the contamination that matters to the system and its downstream components.

25 Micron vs. 50 Micron: What Changes?

The type of contamination in the coolant is a useful starting point. If smaller particles are present and need to be controlled, a 25 µm filter may be considered. Where the main concern is larger particulate, 50 µm filtration may be sufficient.

The filter itself can make a difference too. Filter construction and available filtration area are part of the picture. Flow rate, coolant properties, and contamination levels can change the way pressure drop develops as the filter loads. Pressure drop and filter life can change with those conditions.

For that reason, 25 µm and 50 µm options are better compared using actual efficiency and pressure-drop data, rather than the micron rating by itself.

When Might a 25 Micron Filter Be Considered?

A 25 µm filter is suited to finer particle control. For a CDU coolant circuit, that may be useful around cold plates and other areas where flow passages are relatively tight.

Cold plates and certain manifolds are examples where particle accumulation may affect the coolant path. In these cases, the filter needs to provide the required level of retention without putting too much restriction on flow.

Pressure-drop margin and available filtration area should therefore be checked along with the filter rating.

When Might a 50 Micron Filter Be Considered?

50 µm filtration can be a practical option when the coolant mainly contains larger particulate.

This can also be useful where maintaining flow and extending filter service intervals are important considerations. The actual filter performance still needs to be checked against the system requirements.

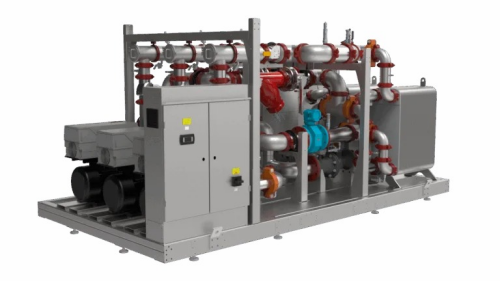

How Does Pressure Drop Affect CDU Filtration?

Filtration is part of the coolant flow path, so the filter contributes to the overall pressure loss within the cooling circuit.

Clean pressure drop provides the starting point, but loaded pressure drop is also important. As particles build up in the filter, resistance can increase and eventually approach the allowable differential pressure.

Pressure-drop data should be reviewed at the expected flow rate and coolant conditions.

The important point is whether the selected filter can provide the required particle control within the available hydraulic margin.

What About CDU Filter Service Life?

The service life of a CDU filter depends largely on how quickly contamination accumulates and the filter approaches its allowable differential pressure.

Particle concentration, particle-size distribution, filtration area, media structure, coolant properties, flow rate, dirt-holding capacity, and allowable differential pressure can all affect loading behavior.

Micron rating alone therefore cannot predict how frequently a filter will need to be replaced.

A 25 µm filter may retain a greater proportion of smaller particles when its efficiency supports that level of filtration. A higher concentration of smaller particles can also change how quickly the 25 µm filter loads compared with a 50 µm filter.

However, this does not mean that a 25 µm filter will necessarily have a shorter service life. A properly sized filter with sufficient filtration area and dirt-holding capacity may still provide an acceptable service interval.

Actual loading data are more useful than assumptions based only on the nominal micron rating.

A Practical Approach to 25 µm and 50 µm Selection

A useful way to evaluate filtration for a CDU cooling system is to consider the relationship:

Particle size → Critical passage → Filtration efficiency → Pressure drop → Filter loading → Service life

Particle size helps establish what type of contamination needs to be controlled. Critical passages and sensitive components indicate where that contamination could create problems.

Filtration efficiency then shows how effectively the proposed filter can retain those particles. Pressure drop should be checked at the actual operating flow rate, not just under clean-filter conditions. As the filter collects particles, the pressure drop will change, so loading data can also help estimate how long the filter can remain in service.

The final selection should fit the CDU’s actual flow conditions, component requirements, and expected contamination load.

What Should You Ask a CDU Filter Supplier?

A 25 µm or 50 µm rating is only the starting point. Check how the rating was established and what the test data actually show. The test method matters, as does the filtration efficiency behind the stated rating. Beta ratio data can provide another useful reference for particle retention.

The expected operating flow rate is important when reviewing pressure-drop data. Clean pressure drop is only part of the picture. Loaded pressure drop is worth checking as well.

The filter materials and seals should also be checked for compatibility with the coolant and operating temperature. For service planning, dirt-holding capacity and allowable differential pressure can give a better indication of expected filter life.

Choosing Between 25 µm and 50 µm Filters

There is no single micron rating that fits every CDU cooling system. A 25 µm filter is generally used when finer particle control is needed. A 50 µm filter can be suitable when the main concern is larger particulate. The right option can also vary with the downstream components, available pressure-drop margin, and how quickly the filter loads.

It is worth looking beyond the micron rating when comparing the two. Actual coolant conditions, filtration performance, and the CDU’s operating limits all have a role in how the filter performs in the system.
