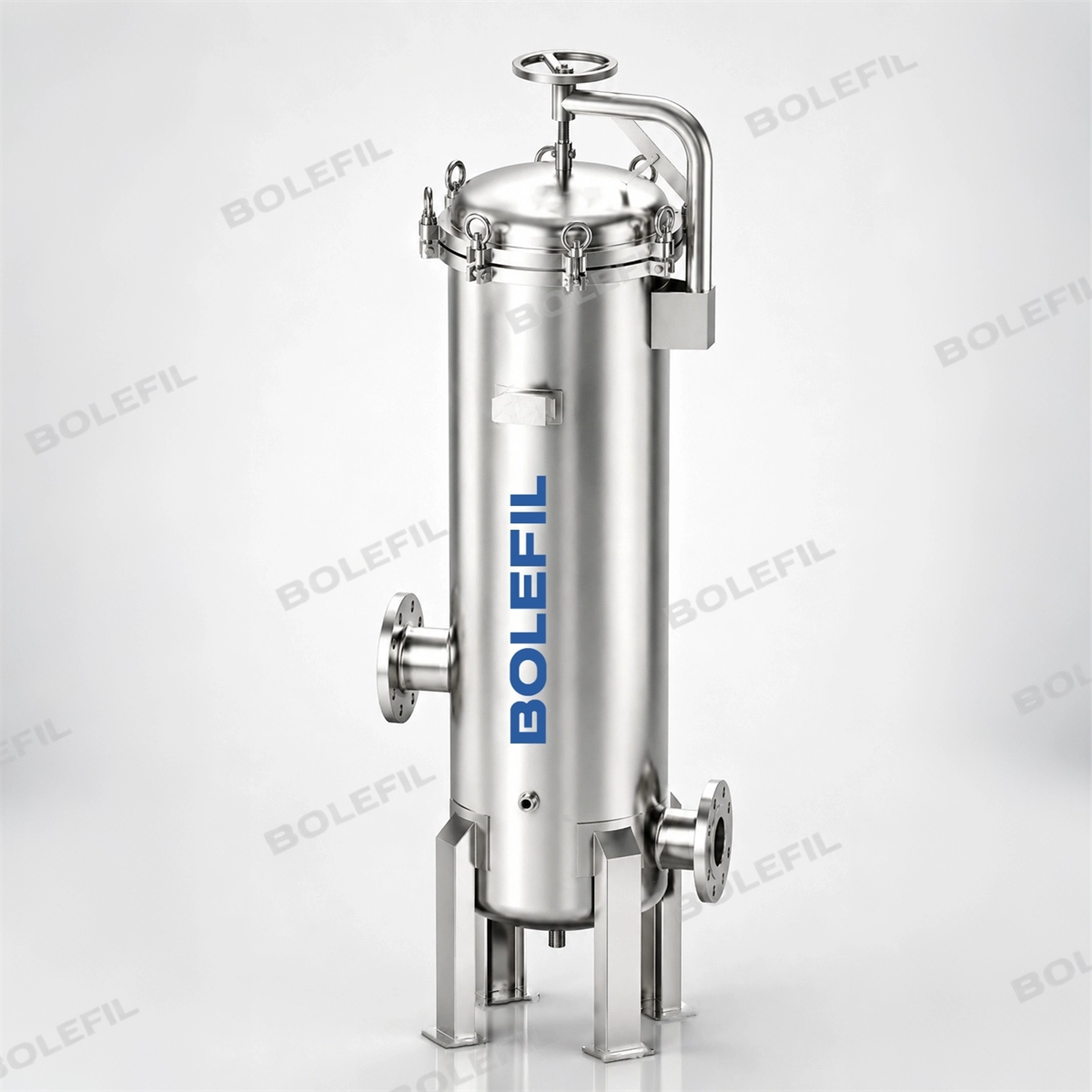

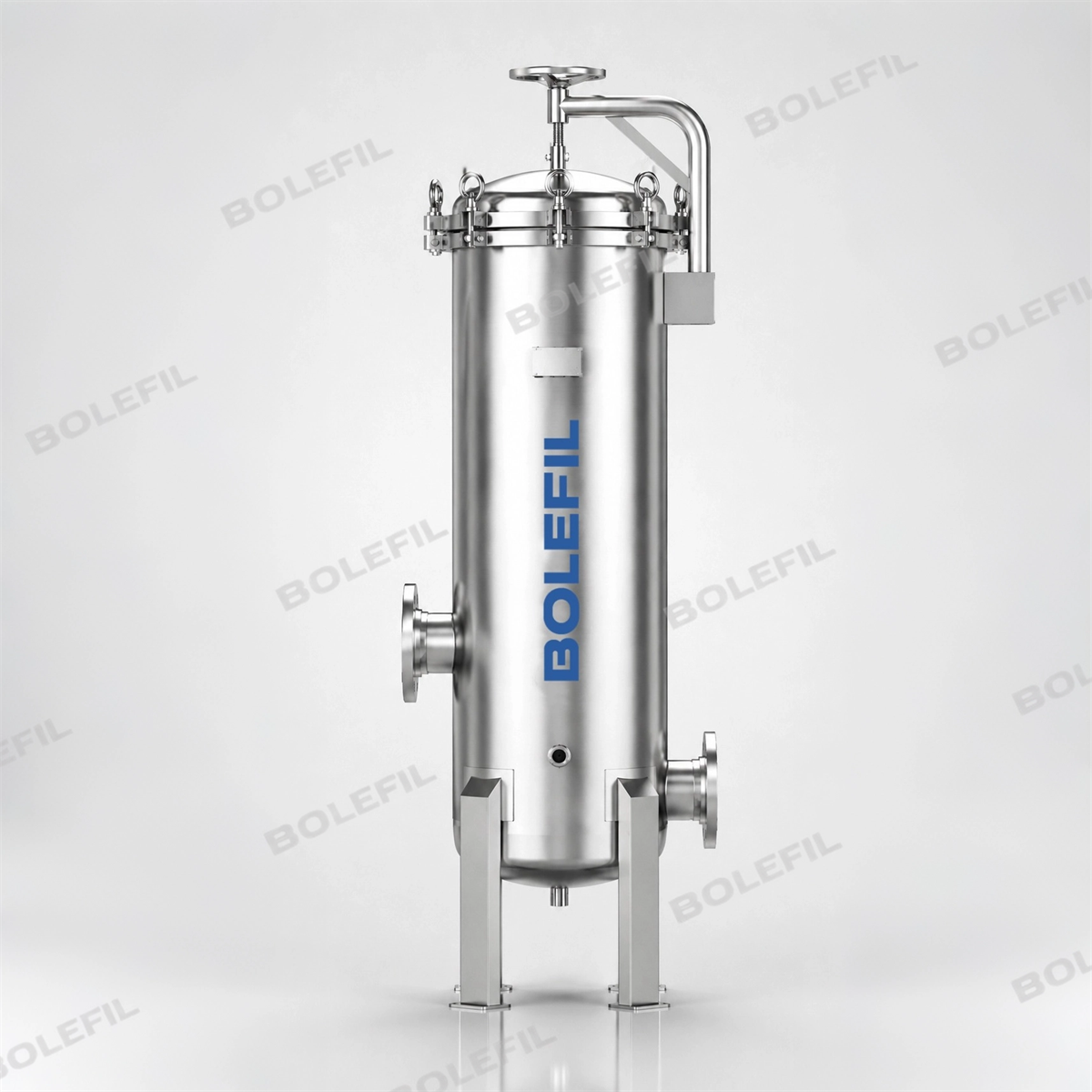

Classic Multi Cartridge Housing

Description

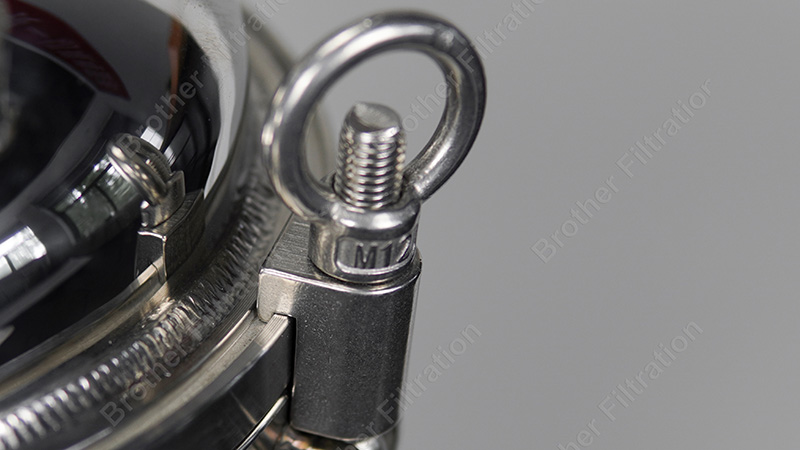

  • Permanently piped housing are opened without special tools and without disturbing the piping

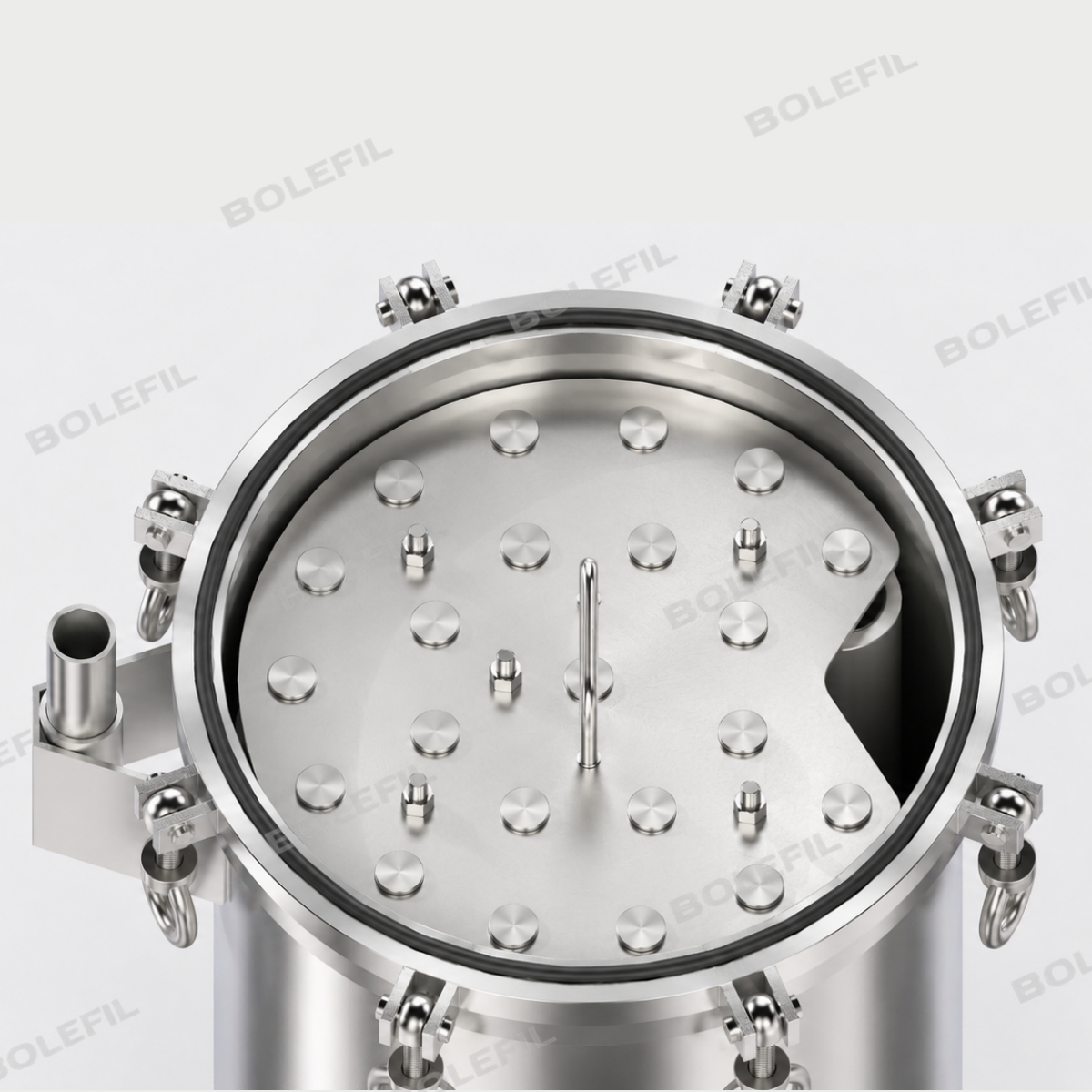

  • Machined cover gasket groove provides positive O-ring sealing
  • Appropriate designing and fabrication makes it easy to clean
  • Optional carbon steel (Sprayed with halar) and duplex filter housing for seawater or corrosion applications
  • Swing bolt with lifting davit ideal for large flow applications
  • Thread or Flange inlet & outlet connections allow for easy piping and drain connections permit quick evacuation of housing
  • Optional hinged filter housings
  • Design flowrates based on element safety flow rate, liquid type and viscosity



Applications:

Prefiltration for RO

Oil & Gas

Desalination

Petrochemicals

Food & Beverage

Pulp & Paper

Automotive

More Description

Head/Shell/Connections304L or 316L stainless steel
OptionalCarbon Steel, duplex 2205
Davit Handle and Eye Nuts304L Stainless Steel
Mounting Legs304L Stainless Steel



Gaskets

Standard EPDMSurface Finishing
Optional Silicone, Buna N, Viton Shot blasting/ Polishing



Maximum Operating Pressures

150psi(10 bar) 250psi(16 bar)



Max temperature

120℃ as standard Optional



Connections

Standard Inlet/OutletSORF ANSI #150 Flanges
OptionalDIN,JIS,GB
Standard Drain/Vent PortsPT
OptionalNPT,BSP



Options:

PED certificated

ASME VIII Section

Special connection locations

Corrosion allowances

Higher Pressure Ratings

Other material of construction

Other material Gasket

CMC-E-1R-20-T-B
ModelMaterialNo. of cartridgeCartridge filter SizesInlet/Outlet connectionGasket materials
Classic Multi Cartridge HousingE=SS 304          S=SS 316 C=Carbonsteel
D=DuplexL
2R=2 PCS
3R=3 PCS
4R=4 PCS
5R=5 PCS
6R=6 PCS
7R=7PCS
14R=14 PCS
16R=16 PCS
18R=18 PCS
20R=20PCS
 20=20inch
30=30inch
40=40inch
50=50inch
60=60inch
70=70inch
T=Thread
F=Flange
B=Buna N
E=EPDM
S=Silicon
V=Viton
