Industrial filtration plays a pivotal role in ensuring product quality, process efficiency, and regulatory compliance across countless industries. Among the various filtration solutions available today, depth filter cartridges have established themselves as the gold standard for applications requiring superior particle retention, cost-effectiveness, and long-term reliability.
In this in-depth guide, we’ll explore what makes depth filter cartridges indispensable for modern industrial processes. We’ll examine their unique design advantages, compare them to alternative filtration methods, highlight their diverse applications, and explain why Brother Filtration stands out as a premier manufacturer in this space.
Let’s understand the depth of filtration technology
Unlike surface filters that only capture particles on their exterior, depth filters utilize a multilayered, gradient density structure that traps contaminants throughout the entire media thickness. This sophisticated design provides several distinct advantages:
Three-Dimensional Particle Capture
Particles are retained at different depths within the filter matrix, which prevents premature clogging compared to surface-only filtration.
This depth filtration mechanism enables a significantly higher dirt-holding capacity, allowing the filter to hold up to 10 times more contaminants than surface filters.
By distributing particles throughout the filter media rather than just at the surface, the system maintains efficiency for longer periods and reduces the need for frequent replacements or cleanings.
Progressive Filtration Mechanism
The multi-layered filtration system is designed to maximize efficiency by allowing the outer layers to capture larger particles, while the inner layers progressively filter out smaller contaminants.
This staged approach ensures that each layer targets specific particle sizes, ultimately resulting in exceptionally clean effluent. By effectively removing impurities at varying levels, the system delivers high-quality output suitable for demanding applications.
Optimized Flow Dynamics
The system maintains lower pressure drops, typically 20-30% less than alternative options, which enhances overall efficiency. By reducing pressure losses, it also decreases energy consumption in pumping systems, leading to cost savings and improved sustainability.
Additionally, the extended service intervals between changes minimize downtime and maintenance requirements, further optimizing operational performance.
Today’s advanced depth filter cartridges incorporate cutting-edge materials that enhance performance:
Polypropylene MeltBlown Media
Thermally bonded fibers create a consistent pore structure, ensuring reliable filtration performance. These fibers are resistant to most chemicals and solvents, making them suitable for harsh environments.
Additionally, they operate effectively across a wide temperature range, from 0°C to 80°C, providing versatility in various industrial and laboratory applications.
Precision StringWound Construction
The product features multiple yarn layers wound at precise angles, making it ideal for handling viscous fluids and high particulate loads.
It is available in various materials, including cotton, polypropylene, and glass fiber, to suit different application needs.
Activated Carbon Composite
This product combines mechanical filtration with chemical adsorption to effectively remove chlorine, odors, and organic compounds from various applications. Additionally, special grades are available to meet the stringent requirements of pharmaceutical applications, ensuring high purity and performance.
Depth filter cartridges play multiple critical roles in food production:
Clarification of Edible Oils
Beverage Production
Dairy Applications
The stringent requirements of pharma production make depth filtration ideal for:
Biopharmaceutical Processing
Active Pharmaceutical Ingredients (APIs)
Chemical manufacturers benefit from the depth filters’ robust performance with:
Acid and Alkali Filtration
Solvent Recovery
Catalyst Separation
Municipal and industrial water systems utilize depth filtration for:
Pretreatment for Reverse Osmosis
Wastewater Polishing
Cooling Tower Protection
As a leading manufacturer of industrial filtration solutions, Brother Filtration has established itself through:
Proprietary manufacturing processes
Advanced quality control systems
Continuous R&D investment

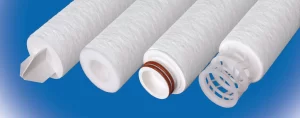

MeltBlown Cartridges
It features a gradual density structure designed to enhance filtration efficiency, offering a 1100-micron rating for effective particle retention while maintaining high flow rates for optimal performance.
String Wound Cartridges
The product offers absolute ratings for precise filtration, along with chemically resistant options to ensure durability in harsh environments. Additionally, it features a high dirt capacity, allowing for extended use and reduced maintenance.
Activated Carbon Cartridges
Activated carbon filters can be made from either coconut shell or coal-based materials, offering iodine values ranging from 800 to 1100, which indicates their adsorption capacity.
For applications requiring higher flow rates, pleated filter options are available to enhance performance and efficiency. These variations ensure suitability for different filtration needs while maintaining effective contaminant removal.
Understanding that every application has unique requirements, we offer:
Material Customization
Size Variations
Performance Enhancements
To maximize the performance and lifespan of your depth filter cartridges:
Always inspect O-rings and seals to ensure they are intact, and follow the recommended flow directions to optimize performance. Additionally, avoid dry starts in pleated filters to prevent damage.
Regularly track pressure differentials and monitor flow rate changes to detect potential issues early. Conducting visual inspections can also help identify wear or contamination before it affects performance.
Replace filters when ΔP (pressure differential) exceeds manufacturer specifications, flow rate drops by more than 20%, or if there are noticeable deviations in product quality. Following these guidelines ensures efficient and reliable operation.
Depth filter cartridges are the top choice for industrial filtration due to their superior particle retention, cost-effectiveness, and reliability. Unlike surface filters, they trap contaminants throughout their multi-layered structure, offering higher dirt-holding capacity, lower pressure drops, and extended service life.
Advanced materials like polypropylene, meltblown, and activated carbon enhance their performance. They are indispensable across industries like Food & Beverage, Pharma, Chemical, and Water Treatment.
Brother Filtration stands out as a leading manufacturer, offering engineered, diverse, and customizable solutions for optimal filtration.
They trap contaminants throughout their entire thickness, not just on the exterior, preventing clogging and holding up to 10x more dirt.
They offer lower pressure drops (20-30% less), saving energy and reducing downtime with longer service intervals.
Think polypropylene meltblown (chemical/temp resistant), precision string-wound (for viscous fluids), and activated carbon (for chemical adsorption).
Absolutely! Manufacturers like Brother Filtration offer custom materials, sizes, and performance enhancements like hydrophobic treatments.
Proper installation (checking seals, flow direction), regular monitoring of pressure/flow, and replacing filters when ΔP or flow drops significantly are key.
