In the realm of filtration, the choice of filter cartridges can significantly impact the efficiency and effectiveness of a filtration system. Two commonly used types are string wound and melt blown filter cartridges. While both serve the purpose of filtering contaminants from liquids, they have distinct differences in their construction, performance, and applications.

Deciphering the optimal choice hinges upon a clear understanding of the specific application and filtration requirements. Let’s delve into the intricacies and disparities between string wound and melt blown filter cartridges.

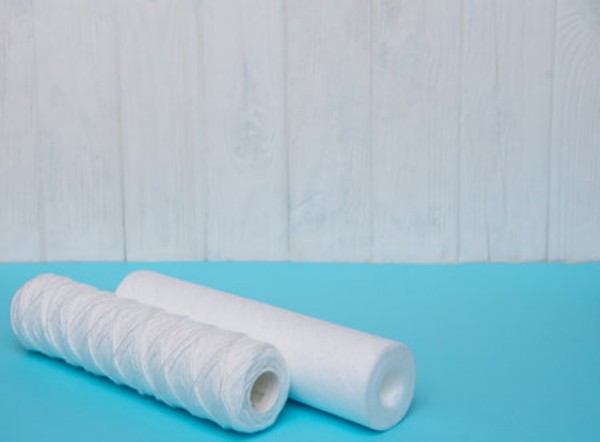

Between A String Wound And Melt Blown Filter Cartridges

What Is A String Wound Filter Cartridge?

A string wound filter cartridge is a type of filter commonly used for fluid filtration applications. It consists of a core made of a sturdy material, such as plastic or metal, around which string-like material, such as cotton, polypropylene, or fiberglass, is tightly wound in a spiral fashion. The winding pattern creates a dense, layered structure that effectively captures and retains particulate matter from the fluid passing through it.

String wound filter cartridges are known for their durability and versatility. They are capable of effectively filtering a wide range of fluids, including water, chemicals, oils, and gases, depending on the material of the winding and the core. These cartridges are widely used in various industries, including water treatment, chemical processing, pharmaceuticals, and food and beverage production, among others.

The design of string wound filter cartridges allows for customizable filtration capabilities, as the material type, winding density, and core size can be tailored to suit specific filtration requirements. Additionally, their relatively low cost and ease of installation make them a popular choice for many filtration applications.

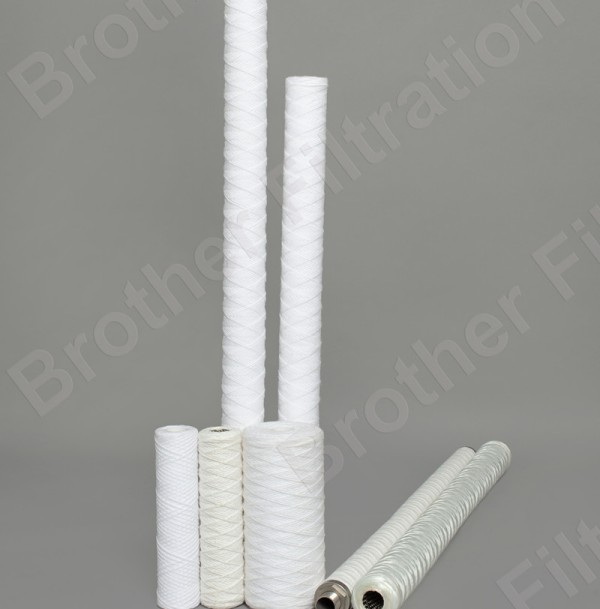

What Is A String Wound Filter Cartridge

What Is A Melt Blown Filter Cartridge?

A melt blown filter cartridge is a type of filter commonly used for filtration applications in various industries such as water treatment, food and beverage, pharmaceuticals, and more. It is made from a specialized manufacturing process called melt blowing.

In the melt blowing process, thermoplastic resins are melted and extruded through a die to form microfibers. These microfibers are then blown by hot air onto a rotating drum, where they form a randomly entangled mat-like structure. This structure creates a fine mesh with a high surface area, allowing for effective filtration of particles from liquids or gases.

Melt blown filter cartridges are known for their high dirt-holding capacity, efficiency in removing particles of various sizes, and relatively low pressure drop. They can be used for removing sediment, particles, and contaminants from fluids, ensuring cleaner and safer processes.

These filter cartridges come in a range of sizes, designs, and micron ratings to meet diverse filtration needs. Typically employed as pre-filters or final filters within filtration systems, they enhance the quality of filtered fluids.

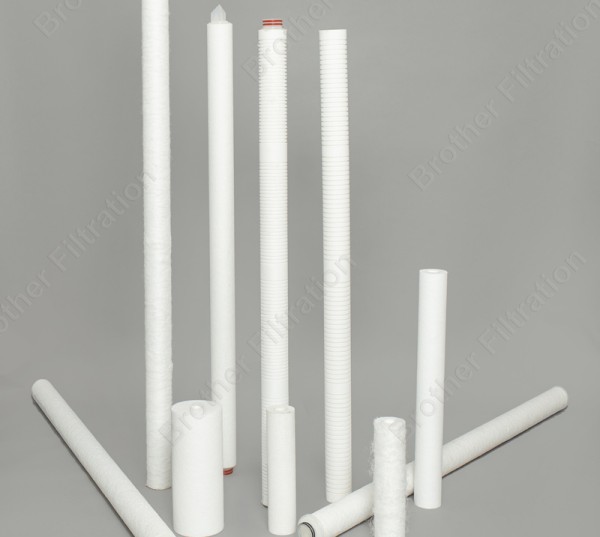

What Is A Melt Blown Filter Cartridge

Differences Between Melt Blown Filters and String Wound Filters

Melt blown filters and string wound filters are both types of filters used for various applications, particularly in water filtration. Here are the key differences between them:

1. Structure

Melt blown filters: These filters are made by blowing molten polymer through a die to create a fine fiber matrix. The fibers are randomly oriented and then compressed to form a porous structure.

String wound filters: These filters are made by winding synthetic or natural fibers, such as polypropylene, polyester, or cotton, around a core. The fibers are wound tightly in a helical pattern, providing depth filtration.

2. Filtration Mechanism

Melt blown filters: The filtration mechanism relies on the interception, impaction, and diffusion of particles within the dense matrix of fine fibers. Particles are trapped as they collide with the fibers or get stuck in the passages between them.

String wound filters: Filtration primarily occurs through the physical entrapment of particles within the gaps between the wound fibers. The winding pattern and density determine the size of particles that can be effectively captured.

3. Filtration Efficiency

Melt Blown Filters: These filters generally provide superior filtration efficiency compared to string wound filters. This is owed to their finer fiber diameter and the haphazard arrangement of fibers, resulting in a compact filtration matrix.

String Wound Filters: Although string wound filters offer commendable filtration efficiency, they may not match the effectiveness of melt blown filters in trapping smaller particles. This is attributed to their larger pore sizes and less consistent structure.

4. Particle Retention

Melt Blown Filters: Melt blown filters are effective at capturing a wide range of particle sizes, including fine particles and sediment.

String Wound Filters: String wound filters are also capable of capturing various particle sizes, but they may not be as efficient as melt blown filters for capturing very fine particles.

5. Pressure Drop

Melt Blown Filters: Due to their dense structure, melt blown filters may have a higher pressure drop across the filter media, which can affect flow rates.

String Wound Filters: String wound filters typically have a lower pressure drop compared to melt blown filters, allowing for higher flow rates.

6. Compatibility and Durability

Melt Blown Filters: Melt blown filters may be more susceptible to chemical degradation compared to string wound filters, depending on the materials used in their construction.

String Wound Filters: String wound filters are generally more durable and resistant to chemical degradation, making them suitable for a wider range of applications.

7. Cost

Melt Blown Filters: Melt blown filters may be more expensive than string wound filters due to their manufacturing process and higher filtration efficiency.

String Wound Filters: String wound filters are often more cost-effective, making them a preferred choice for some applications where high filtration efficiency is not critical.

melt blown filters may have a higher pressure drop across the filter media

Applications of Melt Blown Filter Cartridges

Melt blown filter cartridges find widespread applications across industries due to their versatile filtration capabilities. Primarily utilized for fine particle filtration, these filters play a crucial role in ensuring the purity and quality of various processes and products.

In water treatment and purification, melt blown filter cartridges are instrumental in removing sediment, contaminants, and microorganisms from water sources. This application extends from household water filtration systems to large-scale industrial processes, including wastewater treatment plants and beverage production facilities.

Moreover, in industrial settings such as pharmaceutical manufacturing and chemical processing, melt blown filter cartridges are indispensable for maintaining the integrity of critical processes. Whether it’s filtering active pharmaceutical ingredients (APIs), purifying process fluids, or ensuring air quality in cleanroom environments, these filters provide reliable and consistent performance.

melt blown filter cartridges are indisp

Applications of String Wound Filter Cartridges

String wound filter cartridges are commonly employed in various industries for their efficient filtration capabilities, catering to diverse needs across different processes and products.

String wound filters are extensively used in both residential and industrial settings, including applications such as municipal water treatment plants, residential water filtration systems, and industrial process water treatment.

String wound filter cartridges are integral components in the filtration systems of oil and gas industries, where they help in the removal of impurities, particulates, and sediment from hydrocarbon fluids.

Additionally, string wound filter cartridges are utilized in the food and beverage industry for applications such as clarifying liquids, removing particulates, and achieving desired levels of filtration in processes like juice clarification, syrup filtration, and beer and wine production.

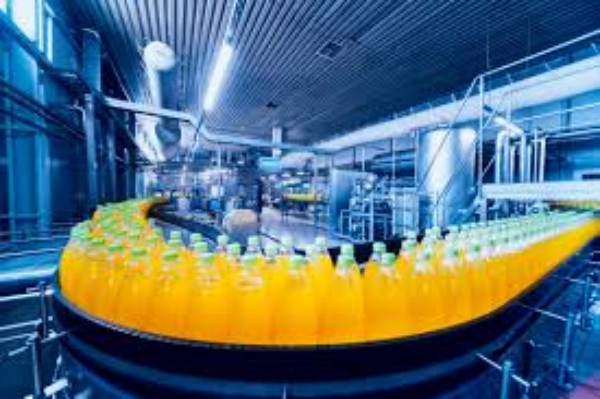

string wound filter cartridges are utilized in the food and beverage industry for applications such as clarifying liquids

Conclusion

The choice between string wound and melt blown filters is pivotal for filtration systems, impacting efficiency and safety across diverse applications. Understanding their distinctions facilitates informed decisions based on specific needs, industry standards, and budget constraints.

As experts in filter cartridges, Brother Filtration offers tailored solutions to meet unique filtration requirements. By partnering with Brother Filtration, industries can optimize their filtration systems for enhanced efficiency, reliability, and safety across a wide range of applications.
