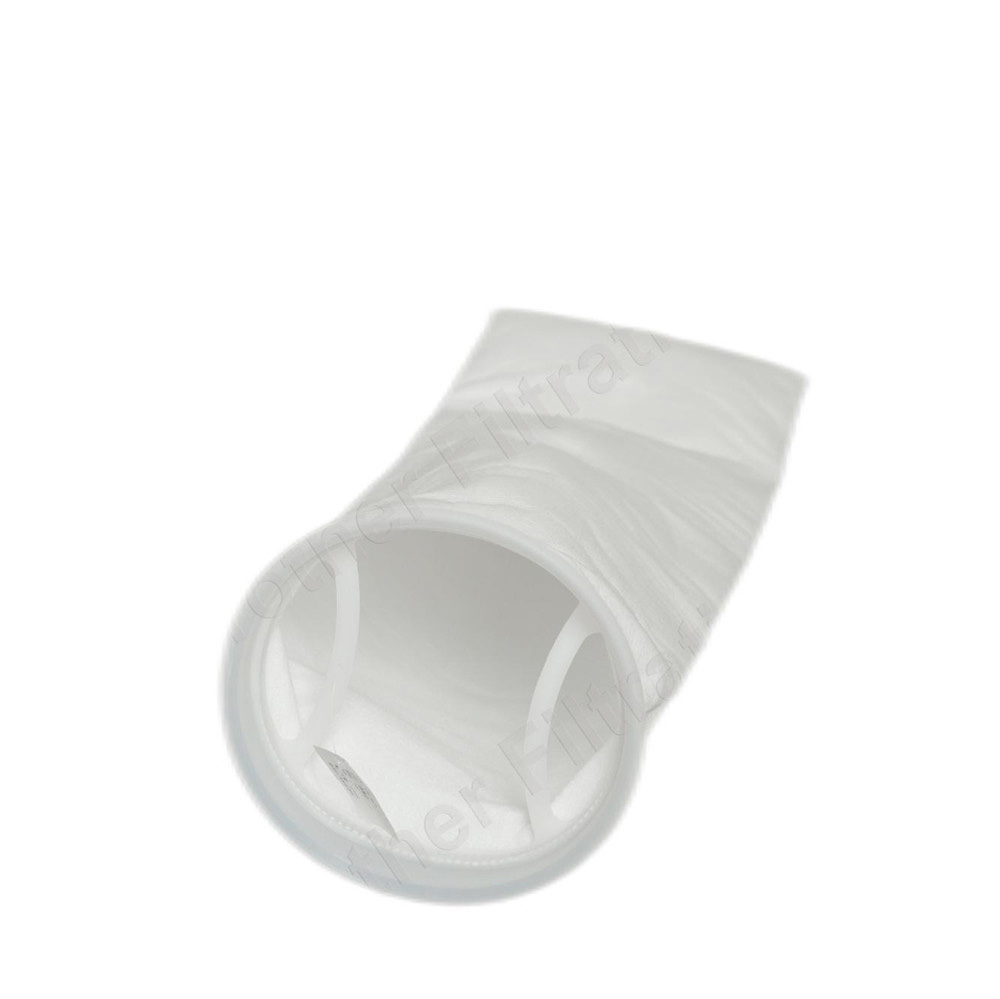

The Thermal welded type filter bags feature 100% welded fabrication. This construction eliminates the bypass which can occur in standard sewn filter bags. BROTHER proprietary Thermal welding technology produces a super-strong seam that will stand up to even the most demanding applications without failure.
Bag filters often have the lowest equipment investment costs, and can usually with a wide range of process conditions, making them an ideal choice for many applications.
Feel free to contact us if you need to select more suitable filter bags, free advice is waiting for you.
Filter Media | Polypropylene/Polyester/Nylon |
Ring type | Polypropylene/SUS304 |
1# | 7”(178mm) dia*17” L |
2# | 7”(178mm) dia * 32” L |
3# | 4”(102mm) dia * 8” L |
4# | 4”(102mm) dia * 14” L |
5# | 4”(102mm) dia * 20” L |
Max. Temperature | ~80 ℃ |
Recommended DP for | 1.2-1.6bar |
change-out |
Size | Max. Flow Rate | Recommended Flow Rate | Filtration area |
1# | 20m³/hr | 13m³/hr | 0.25m² |
2# | 40m³/hr | 26m³/hr | 0.5m² |
3# | 6m³/hr | 4m³/hr | 0.09m² |
4# | 12m³/hr | 8m³/hr | 0.16m² |
5# | 18m³/hr | 12m³/hr | 0.2m² |
BCFB | -01 | -PP | -0100 | -PE | -S |
Product | Size | Media Material | Micron Rating | Ring Material | Technique |
ProClean
Normal Filter Bag |
01=Size 1
02=Size 2 03=Size 3 04=Size 4 |
PP=Polypropylene
PE=Polyester |
0100=1um 4000=40um
0500=5um 7000=70um 1000=10um 10000=100um 1500=15um 20000=200um 2000=20um 25000=250um |
PE=Plastic E Type Ring
PF=Plastic F Type Ring S=Stainless Steel |
S=Seam
W=Welding |
10 inch =25.4 cm
Notice: Due to the filter having variety in design, please contact BROTHER sales for more information |
