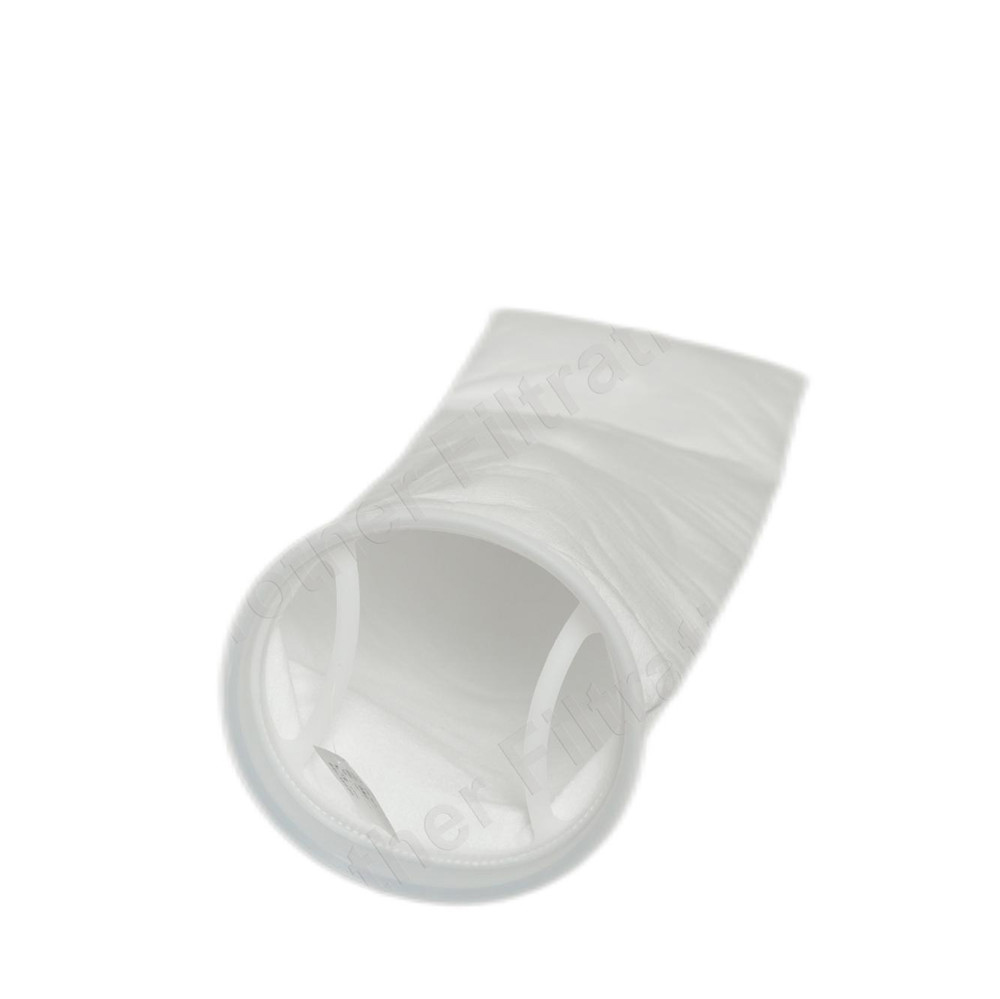

ProClean Nylon Filter Bag

Description

ProClean Nylon Filter Bag is welded and fused with nylon mesh made of a single fiber. With fixed aperture, the Monofilament Nylon filter bag owns a filtering accuracy range from 25UM-1250UM and can effectively intercept all kinds of hard larger particles. At the same time, Nylon material can resist higher operating temperature, fiber is not easily deformed and has good tensile strength.



Monofilament Nylon Filter Bag has the characteristics of high rate, and it is suitable for the occasions where the filtration accuracy is not high, such as filtering large particles of impurities, pre-filtration, and coarse filtration.



Products Features of ProClean Nylon Filter Bag

  • Good welding technology, not easy be deformed, with high tensile strength.
  • Mesh structure with fixed pore size, fixed value filtration, with good stability.
  • Strengthen the outer edge sealing to make the seal structure more stable.
  • Suitable for high viscosity boring and hard particulate impurities filtration.
  • Full size1,size2,size3,size4 bags are available for customer’s actual operating environment.
  • Plastic sealing rings, durable stainless steel rings and carbon steel rings can be selected for customer’s application with good sealing performance.
  • Other designs can be provided according to the customer’s actual operating environment.



Applications of ProClean Nylon Filter Bag

  • Raw water
  • Pre-filtering
  • Coarse filtering
  • Car degreasing
  • Anticorrosive paint
  • Cutting fluid
  • Recycled water



Specification of ProClean Nylon Filter Bag

Model Surface area(m2) OD(mm) Length(mm)
Size1 0.25 178 420
Size2 0.5 178 810
Size3 0.09 102 230
Size4 0.16 102 410

Ordering Information of ProClean Nylon Filter Bag

BCNFB -2 -NY -2500 -PE
Model Bag Size Material Micron Rating Ring Material
ProClean
Monofilament
Nylon Filter Bag
01=Size1
02=Size2
03=Size3
04=Size4
NY=Nylon 2500=25um
5000=50um
7500=75um
10000=100um
12500=125um
15000=150um
17500=175um
PE=Plastic E Type
PF=Plastic F Type
S=Stainless Steel

10inch=25.4cm
Notice: Due to the filter having variety in design, please contact BROTHER sales for more information
