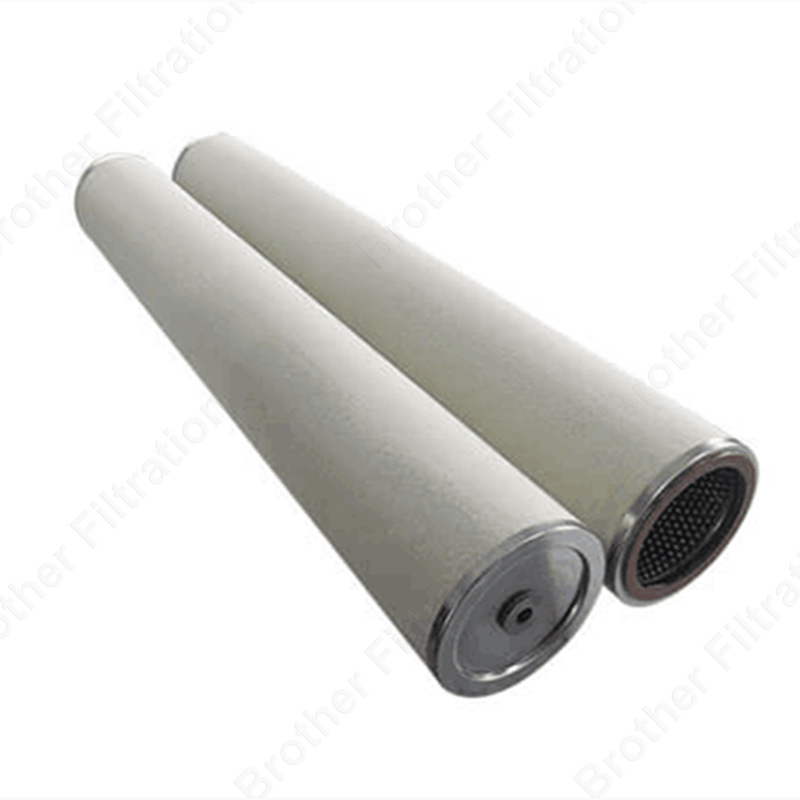

CLG1.0 Coalescer Filter Cartridge-Liquid from Gas


The CLG1.0 series element is designed to coalesce extremely fine liquid particles from natural gas (the main components of the droplet are water,oil and hydrocarbon compounds). The flow pattern through the element is from the inside to the outside.

The C1.0 filter cartridge is more efficient to filter the solid particles and liquid mists. The additional surface area can also reduce differential pressure at high flow rates.

Oil, water and other fluid particles will be captured by superfine fiber inside the coalesce machine. These microfiber guides the air flow to move sinusodially, forcing solid and mist particles to collide with one another, capturing them in the process. The surface tension allows smaller particulates to coalesce into bigger ones and fall into the collecting reservoir below due to gravatational pull.


Brother Filtration CLG1.0 coalescer filter cartridge is designed for oil, water and other fluid particles with efficiency and high accuracy.

  • Equipped with superfine fiber
  • Able to remove fine liquids particles from natural gas
  • Filter direction is from inside to outside
  • Efficient to filter solid particles and liquid mists

Brother Filtration CLG1.0 coalescer filter cartridge can resistant high differential pressure and has high dirt-holding capacity. With its high quality, it is a good choice for coalescing fine liquid particles.

  • Beta ratios in excess of 99.9%, high filtration accuracy
  • Large dirt holding capacity
  • Robust construction to withstand over 15 PSI differential pressure
  • High quality components


Length 18/36/72 inches
Removal Rating 0.3 Micron Absolute
Outside Diameter 4.5 inches
Inside Diameter 3.13 inches
Center Core Carbon Steel(standard), Stainless(available)
Outer Core Carbon Steel(standard), Stainless(available)
End Cap Carbon Steel(standard), Stainless(available)
Gaskets Buna-N
Gasket Adhesive Polyurethane
Prefilter Media Pleated paper
Final High Efficiency Media Pleated micro fiberglass
Outer sock Needled polyester


Operating conditions

Initial Differential Pressure <0.5 psi
Recommended Change-Out Differential Pressure 15 psi (max)
Maximum Element Operating Life 1 year
Maximum Operating Temperature 300℉
Minimum Operating Temperature -60℉
Note: Special metallic materials are available according to customers requests. Do not hesitate to contact us for future details

Order Information

Flow rate (MMSCFD) Dimensions (inches)
Module 100 PSI 100 PSI 100 PSI length Inner diameter Outer diameter
BF-CLG1.0-0.3-18 1.7 3.3 8 18 3.13 4.5
BF-CLG1.0-0.3-36 2.1 4.1 10 36 3.13 4.5
BF-CLG1.0-0.3-36-2 2.5 4.8 11.7 36 4.25 5.5
