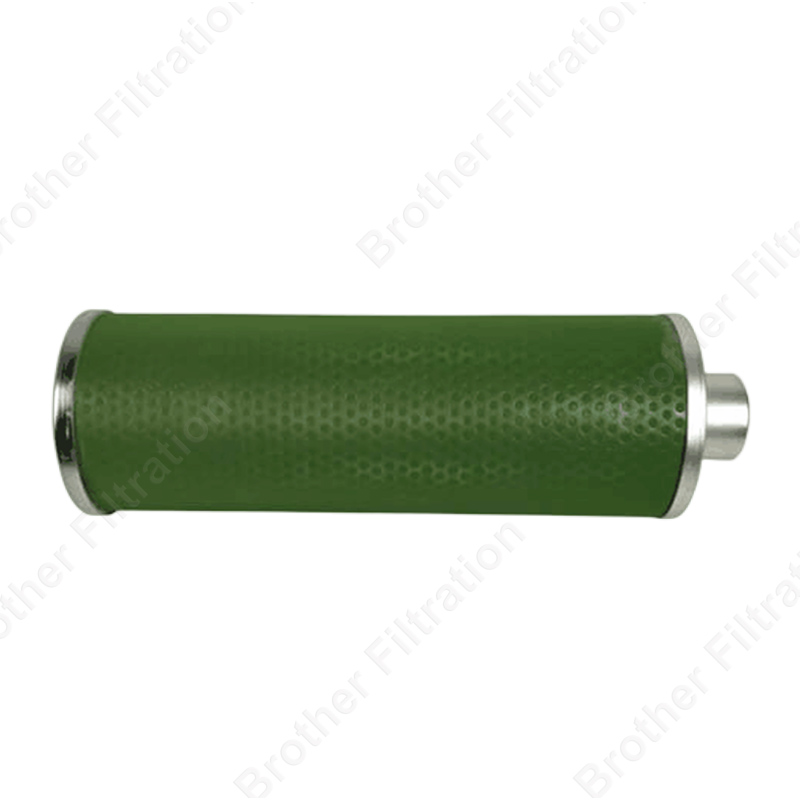

SP2.0 Separator Filter Cartridge

Overview

SP 2.0 separator cartridges can provide efficient separation of water in a wide range of fluid process streams. These separator cartridges are used in applications where API certifications are not required. The SP2.0 separator cartridges are effective in reducing operation costs and improving product quality.

Brother Filtration SP2.0 separator filter cartridge can be applied to wide range of applications, such as Chemicals, Resins & Solvents, Hydraulic Oil, Petroleum Refineries, Hydrocarbons, Power Generation, Pulp & Paper Production, Transformer Oil and Turbine oil.

Highlights

Product Highlights

SP2.0 separator cartridge can be applied to diverse applications and industries, it is good at removing particles in fluid process streams.

  • Suitable for wide range of fluid process streams
  • Suitable for no requirement for API certifications
  • Improve product quality
  • Wide range of applications

Standard Features

Brother Filtration SP2.0 separator cartridge has outstanding and superior benefits, which are suitable for fluid process streams. It can save costs and improve the efficiency, is a good choice for many applications.

  • High performance proprietary filter media for a wide range of applications
  • Continuous lengths minimize process downtime
  • Reducing cartridge change-out costs and eliminating filter bypass concerns
  • Designed for balanced flow through cartridge
  • Compound or Coating end cap are both available

Data Detail

Specifications

Clean Pressure Drop 1 psid
Recommended Replacement Pressure Drop 8 psid
Max. Operating Temperature 240°F / 115°C
Separation Efficiency 98%
pH 5-9



Filter rating

Filter rating 5μm 25μm 50μm 75μm
Cellulose/Pleated paper (S) ● ●
Synthetic hydrophobic mesh(M) ●
Teflon® Coating mesh (T) ●

Order Information

Module Filter element Filter rating Cartridge inner diameter Cartridge length Connection type Core material Seal material
SP 2.0 T-Teflon® Coating mesh 75-75μm A=2-3/4″
B=3-3/4″
C=4-1/4″
D=6″		 10=10″
20=20″
30=30″
40=40″		 7-DOE
O-Outer O-ring
I-Inner O-ring		 S-S30408
S-31603		 B-Buna
V-Viton
E-EPDM
S-Si. Rubber
