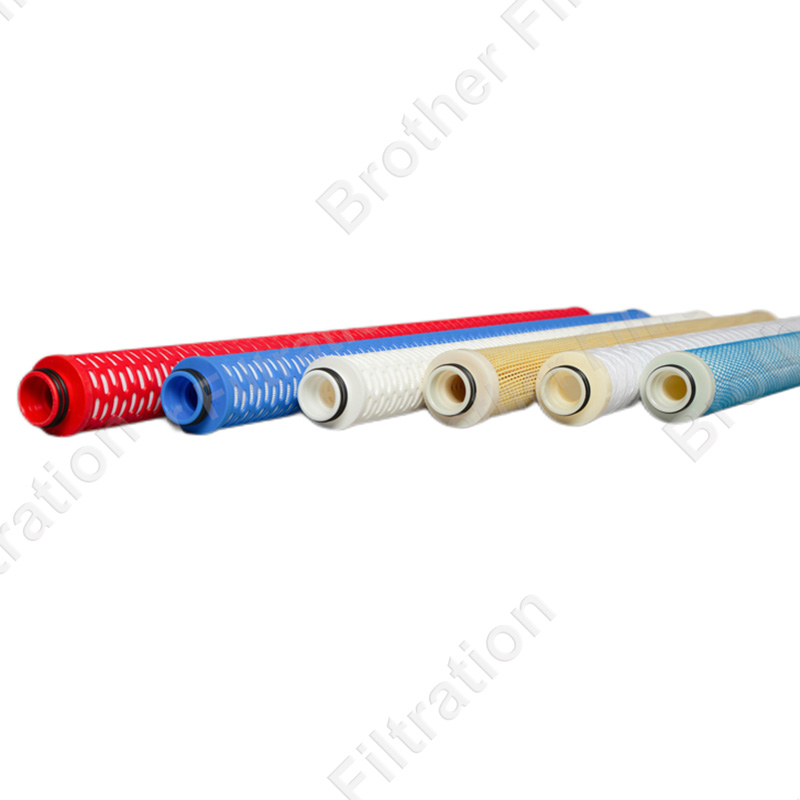

Oltek™ Pleated Filter Cartridge

Overview

A designed pleated filter cartridge especially for oilfields and well injection.

Oltek™ Pleated Cartridge Filter will reliably and effectively resolve the contaminants present in well injection fluids that can lead to formation blockage ultimately decreasing productivity. The high-quality cartridge is specifically manufactured for the filtration of oilfield fluids and its fully thermal welded construction ensures safe operation and optimum filtration performance.

Oilfield wastewater mostly relates to drilling, well-washing, and oil (gas) sewage. It has the characteristics of having a high salt and oil content. And oilfield water injection has recently emerged as one of the key strategies for enhancing oilfield recovery.

The effectiveness of oilfield development as well as the life of the oilfield development depend on the quality of the injection of water into the oilfield. To ensure that the water injection meets the necessary water quality criteria, the filtering procedure for oilfield water injection must be carefully planned.

Brother Filtration Oltek™ pleated filter cartridge can filter a variety of oilfield fluids, including drilling fluids, workover fluids, well completion fluids, gravel pack fluids, injection & generated water, and diesel, thanks to their wide chemical compatibility. The Oltek™ cartridge’s distinctive design enables it to function at high flow rates while creating a little pressure drop and a high capacity for pollutant loading.

The Oltek™ pleated filter cartridge is made of PP and glass fiber. In comparison to depth media of micron rating filters, the pleated design of Oltek™ has superior flow characteristics and a very low-pressure drop, which increases the filtration area.

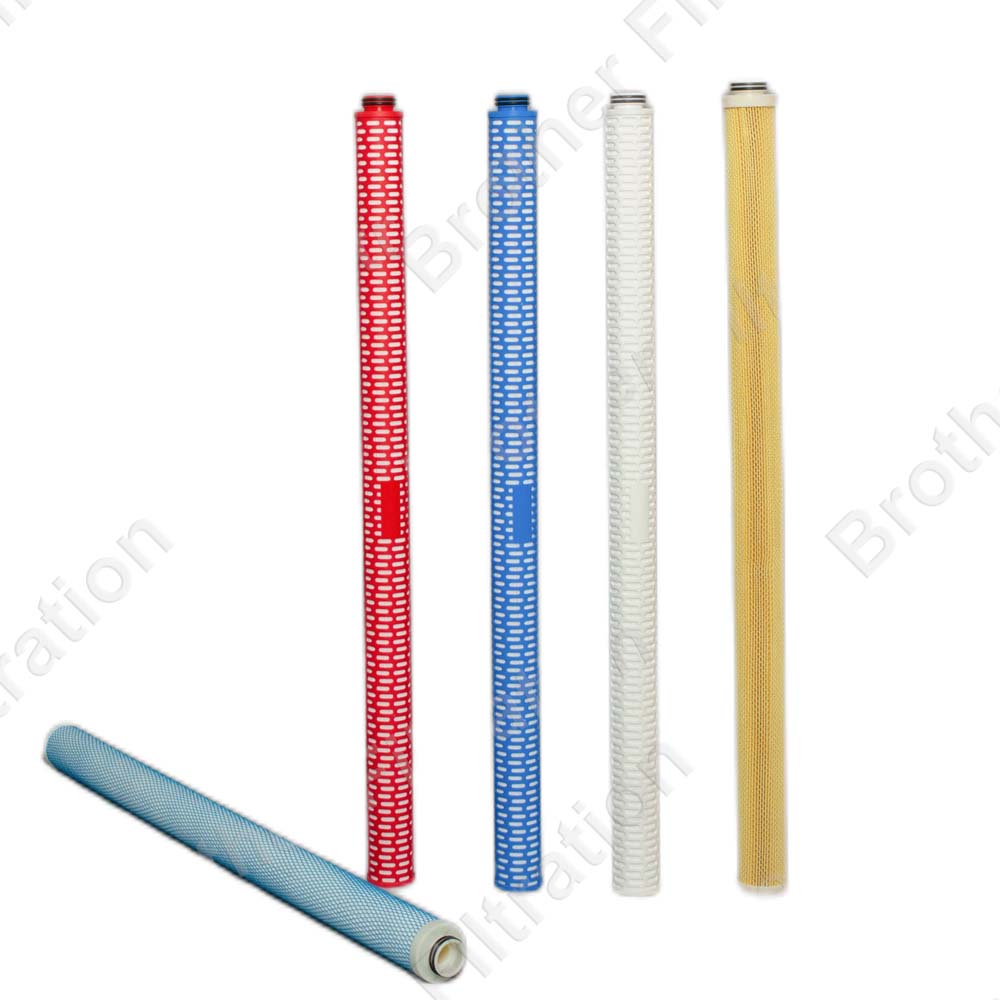

Our special designed Oltek™ pleated filter cartridge has a one-piece rigid outer case and is available for outer netting. And it has a standard size, which makes it fit for different brands.

Highlights

As filtration specialist, Brother Filtration provides professional pleated filter cartridge specifically for oilfield fluids and well injection. Our Oltek™ would be a great choice for the needed industries with a strong competitive force.

  • Especially designed for oilfield fluids and desalination
  • Standard size, suitable for different brands
  • One-piece rigid outer cage
  • Optional outer netting
  • The assistance of keeping productivity

Brother Filtration Oltek™ pleated filter cartridge has superior advantages for applications like well completion fluids, workover fluids, injection water, petrochemicals and desalination.

  • Large filtration area and high flow rate
  • Low-pressure drop
  • Excellent contaminant loading capacity
  • Broad chemical compatibility

Equipment

Filter Media Polypropylene/ Glass Fiber
Inner core& Outer Cage Polypropylene/PE&GF filled PP
End caps Polypropylene/PE&GF filled PP
End caps type SOE (222flat)
Length 20’’, 30’’,40’’
OD Netting 2.75inch (69mm) Cage (64mm)
Gasket EPDM / Silicone / Buna-N / Viton
Max. Temperature ~80℃/~120℃
Recommended DP for change-out 2.1-2.4bar

Order Information

BOTK -T -PP -20 -0100 -E -0 -P -H
Product Type Material Length Micron Rating O-ring Connection Inner Core Surface Treatment
Oltek™ Pleated Cartridge Filter T=Pleated
S=String Wound
M=Melt Blown
PP=Polypropylene
GF=Glass Fiber
20=20inch
30=30inch
40=40inch
0100=1um
0200=2um
0500=5um
1000=10um
1500=15um
2000=20um
E=EPDM
S=Silicon
V=Viton
B=Buna-N
0=DOE
1=222 Flat
2=222 Fin
3=226 Flat
4=226 Fin
P=PP Core
S=SUS 304
U=SUS 316
H=Hard Cage
N=Netting
1 inch =25.4mm
Notice: Due to the filter has variety in design, please contact BROTHER sales for more information
