BROMEN™ PP Pleated Filter Cartridge

Overview

Pleated cartridge filters are surface filters that prevent sediments from passing through the surface. The cartridge media is pleated so that the surface area of the filter increases and holds a large number of sediments. The pleated media is engineered to form layers that enable absolute filtration while also allowing it to capture particles of different sizes.

BROMEN™ Pleated Cartridge Filter is 100% Polypropylene constructed filters with broad Absolute micron ratings. Its uniform pleated structure delivers maximum filtration surface, and extend service life. In addition, welded seams and thermally treated exterior surfaces eliminate particle by-pass.

With a rigid outer cage and strengthened inner core, BROMEN™ Pleated Cartridge Filters can hold higher operation pressure than others.

BROMEN™ Pleated Filter Cartridge is made of 100% FDA standard Polypropylene material without adhesive or organic binder, which makes it safe enough for the food & beverage industry. Also, it has wide chemical compatibility, which is suitable for the pharmaceutical industry.

The absolute filtration rating of BROMEN™ can reach 99.9% from 0.22-100 um, with its graded-porosity multi-layer structure, it can handle prefiltration and municipal water treatment. It is also a great choice for oil & gas, power generation condensate system, and the petrochemicals industry.

Just like another pleated filter cartridge, the BROMEN™ filter cartridge has pleated media and a large filtration surface. And it uses welding technology to eliminate particles by-pass.

Brother Filtration manufactures BROMEN™ series in different size, and different types of end caps, different filter media and gasket. We provide multiple choices for our customers, because we take consideration for the actual needs from customers, design and produce practical and competitive products for the market.

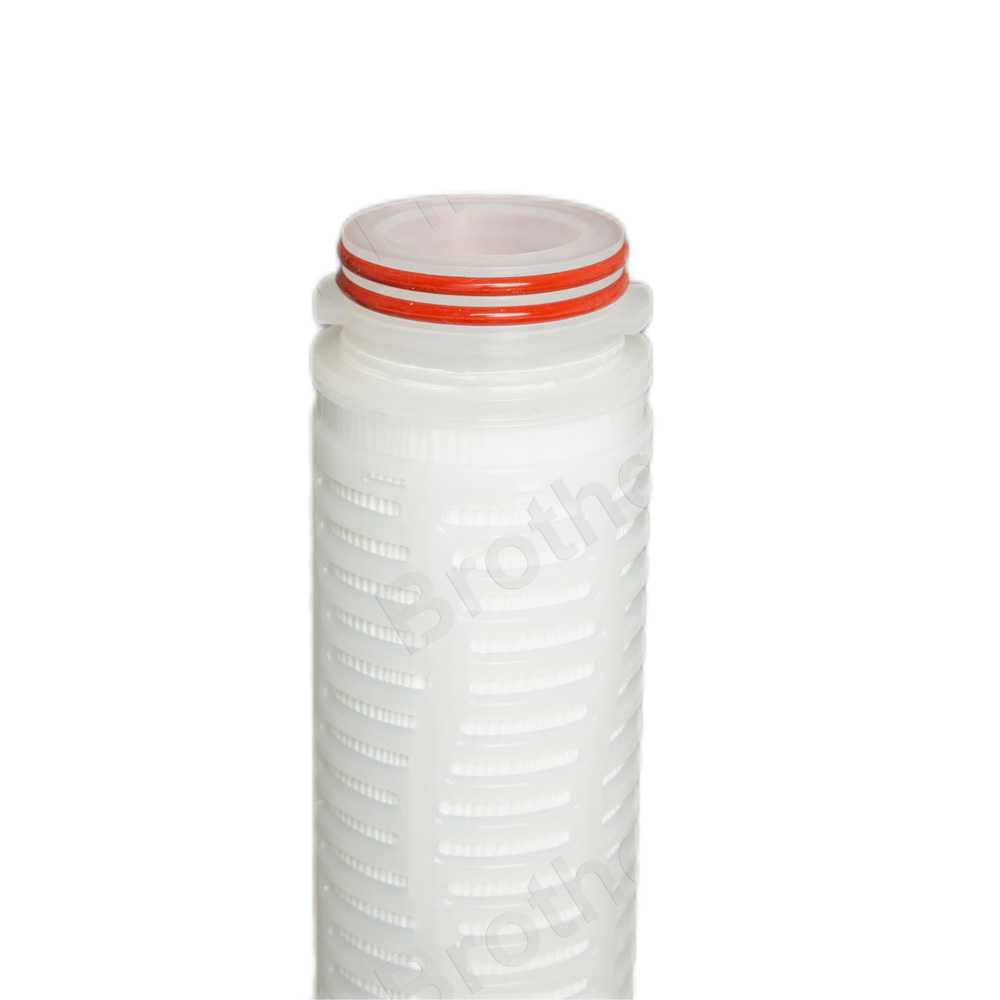

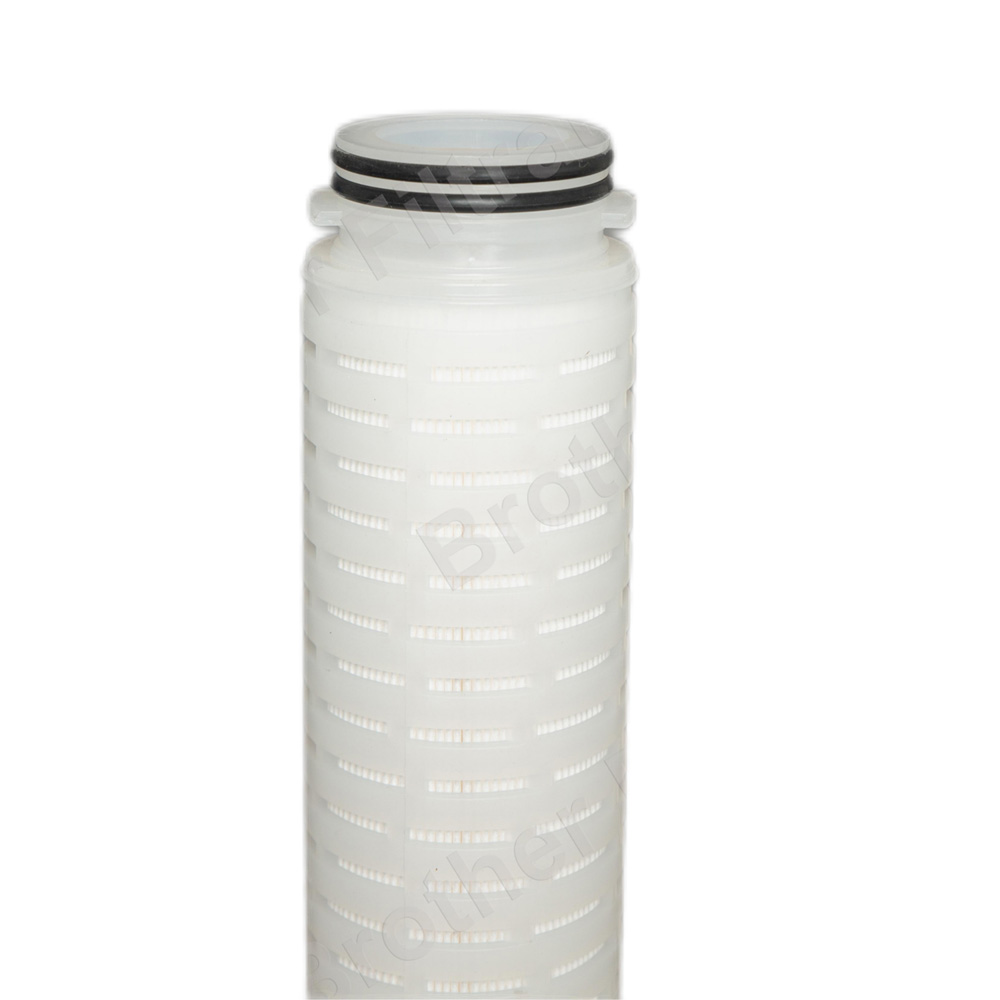

Gallery

Highlights

Product Highlights

Providing high-quality filtration performance is the basic of Brother Filtration’ products, our BROMEN™ series has many other highlights, which make it so competitive.

100% all Polypropylene material without adhesive or organic binder
Silicone-free construction
Polypropylene materials in compliance with FDA regulations for food contact under CFR2
Suitable for a wide range of applications
Welded seams and thermally treated

Standard Features

Brother Filtration BROMEN™ pleated filter cartridge provides higher loading capacity for longer filter life and increased particle removal.

Absolute filtration rating 99.9% from 0.22-100um
Broad chemical compatibility
Graded-porosity multi-layer
Consistent filtration performance and long service life
Large filtration area

Data Detail

Equipment

Filter Media	Polypropylene/Glass Fiber
Inner core & Outer Cage End caps	Polypropylene
Gasket	EPDM/Silicone/Buna-N/Viton
End caps type	DOE, SOE (222 Flat/222 Fin/226 Flat/226 Fin)

Order Information

BROMEN	-PP	-5	-A	-0200	-E	-0	-P	-H
Product	Material	Length	Filtration Efficency	Micron Rating	O-ring	Connection	Inner Core	Surface Treatment
BROMEN™ Pleated Cartridge Filter	PP=Polypropylene	5=5 inch 10=10inch 20=20inch 30=30inch 40=40inch 50=50inch 60=60inch 70=70inch	N=Nominal A=Absolute	0020=0.22um 0045=0.45um 0100=1um 0500=5um 1000=10um 1500=15um 2000=20um 4000=40um 7000=70um 10000=100um	E=EPDM S=Silicon V=Viton B=Buna-N	0=DOE 1=222 Flat 2=222 Fin 3=226 Flat 4=226 Fin	P=PP Core S=SUS 304 U=SUS 316	H=Hard Cage N=Netting
1 inch =25.4 mm Notice: Due to the filter having a variety in design, please contact BROTHER sales for more information.
