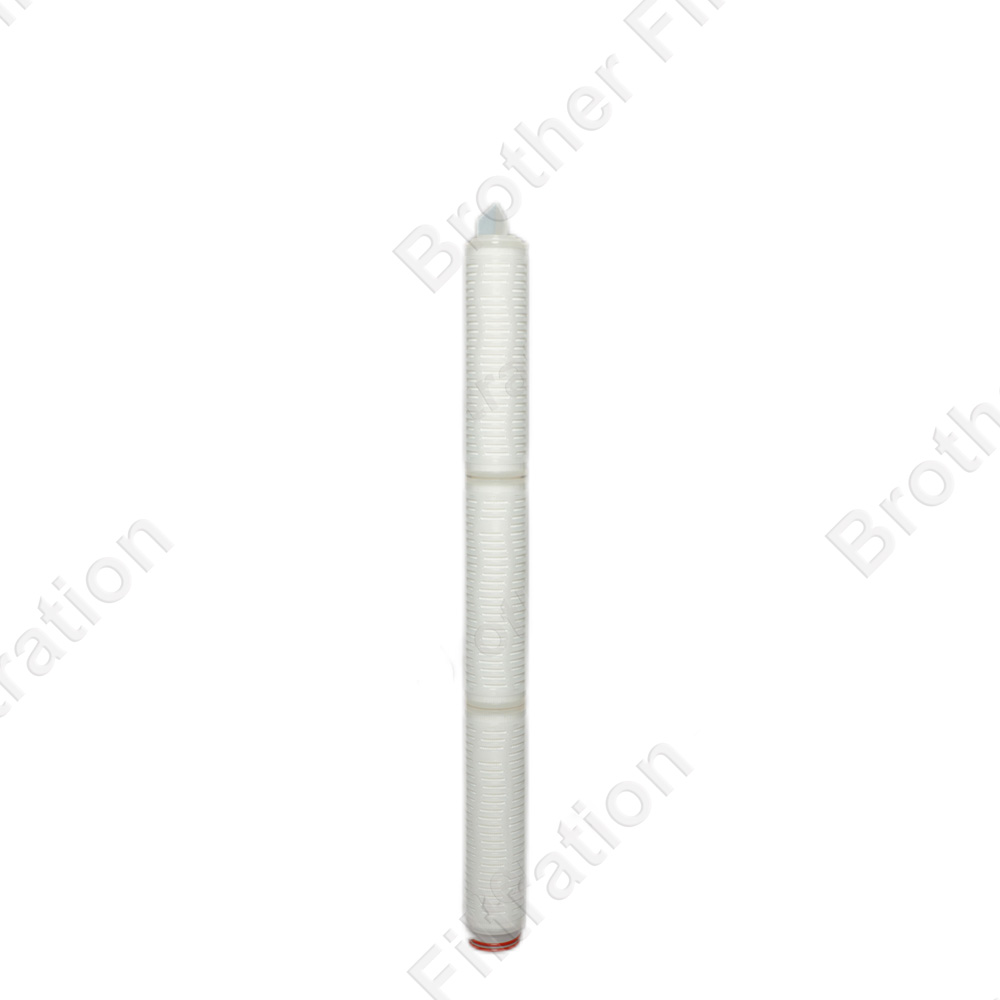

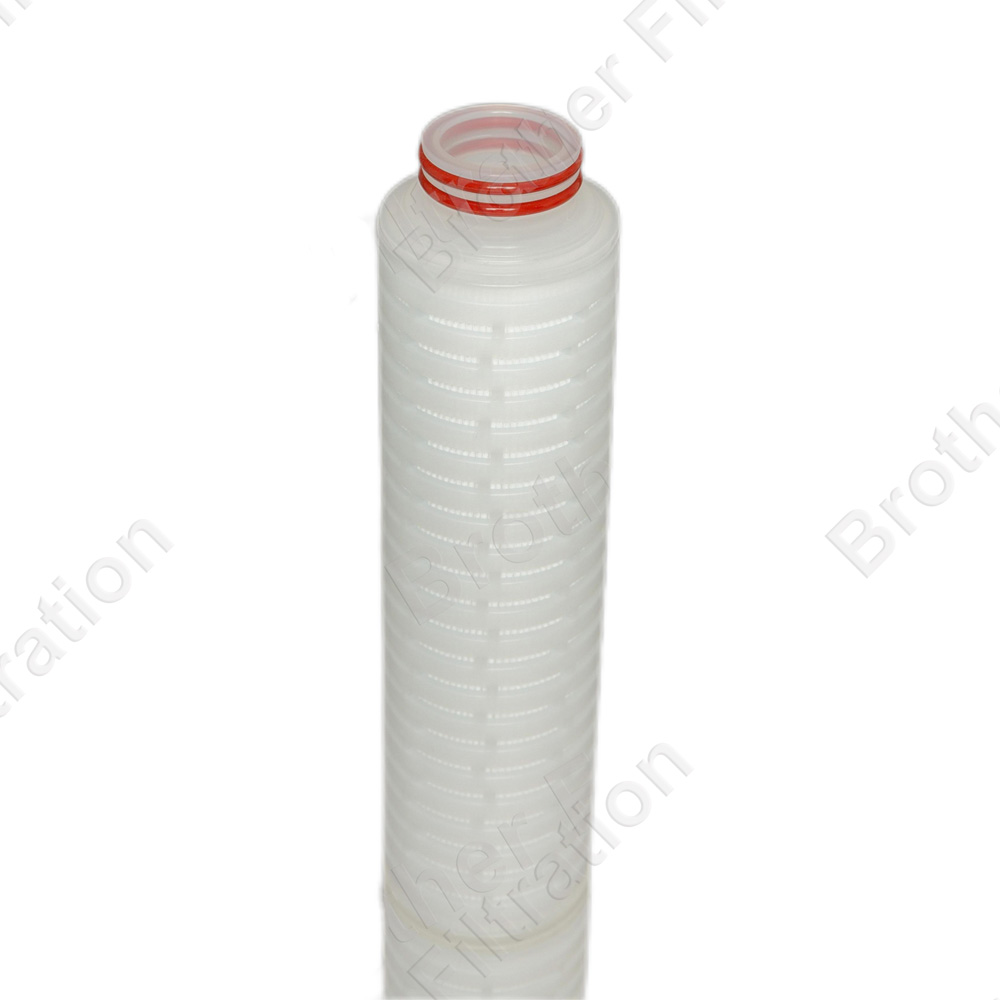

PDM™ pleated cartridge filter

Description

PDM™ pleated cartridge filter is made of advanced technology sub-micron polypropylene fiber membrane, which is with uniform pore distribution and scientific structure design. The PDM series filter element has the characteristics of deep filtration and high pollution absorption. When ensuring water flux and filtration efficiency, it can also intercept more target removers, effectively prolong the service life of the filter element and optimize the economic cost.

PDM™ series is your preferred alternative as the characteristics of small volume, large filtration area and high precision. The filtration accuracy range from 0.1um to 100um. To avoid the cartridge end cap dropping off and ensure good mechanical integrity. Brother High Flow Filter Element adopts the advanced infrared way welding technology. The infrared ray directly heats up 100% end cap surface and body filter. After 38-40s’ heating, these two parts will be 100% welded together. If you’re looking for a reliable filter cartridge manufacturer, we can be your right choice.

Features of ProPure PDM™ Pleated Cartridge Filter

  • 100% pure polypropylene
  • Nominal Filtration efficiency 90%-95%
  • High dirt-holding
  • Lower Pressure Drop
  • Broad application range
  • Silicone free construction
  • Polypropylene materials meet FDA regulations for food contact under CFR21

Applications:

  • Prefiltration for RO Desalination
  • Oil & Gas
  • Power Generation Condensate System
  • Petrochemicals
  • Food & Beverage
  • Pharmaceutical Municipal Water

Specification

Filter Media Polypropylene/Glass Fiber Polypropylene
Inner core & Outer Cage End caps Polypropylene
Gasket EPDM/Silicone/Buna-N/Viton
End caps type DOE, SOE (222 Flat/222 Fin/226 Flat/226 Fin)

Size

  • Length: 5 to 70inch
  • OD: 2.5inch(69mm)

Operation conditions

  • Max. Temperature  ~80 ℃
  • Recommended DP for change-out: 2.1-2.4bar
  • Filtration is 0.56㎡

Order Information

BPDM -PP -5 -0020 -E -0 -P -H
Product Material Length Micron Rating O-ring Connection Inner Core Surface Treatment
ProPure-PDM™ Pleated Cartridge Filter PP=Polypropylene
GFQ=Glass Fiber For Liquid
GFA=Glass Fiber for Air
5=5 inch
10=10inch
20=20inch
30=30inch
40=40inch
50=50inch
60=60inch
70=70inch
0020=0.22um
0045=0.45um
0100=1um
0500=5um
1000=10um
1500=15um
2000=20um
4000=40um
7000=70um
10000=100um
E=EPDM
S=Silicon
V=Viton
B=Buna-N
0=DOE
1=222 Flat
2=222 Fin
3=226 Flat
4=226 Fin
P=PP Core
S=SUS 304
U=SUS 316
H=Hard Cage
N=Netting

1inch=25.4mm

Notice: Due to filter has variety in design, please contact with BROTHER sales for more information.

Brother Filtration is a professional supplier of prefiltration solutions to most industrial applications. PDM series is our feature pleated cartridge filter especially for industrial water treatment, food and beverage water filtration. If you have any questions, pls feel free to let us know or send an email to us at [email protected].
