sanitary housing

Overview

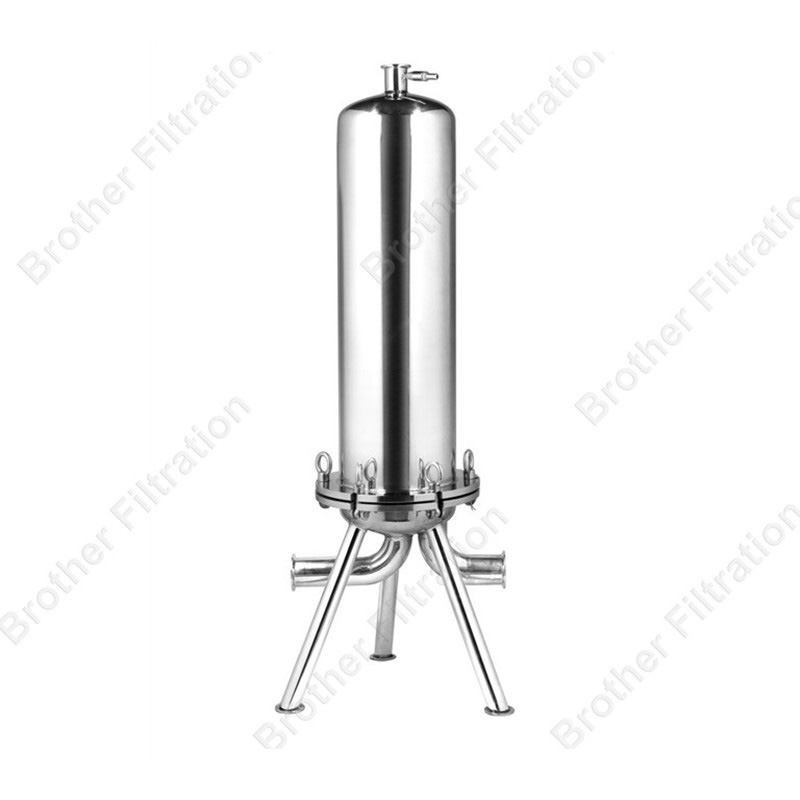

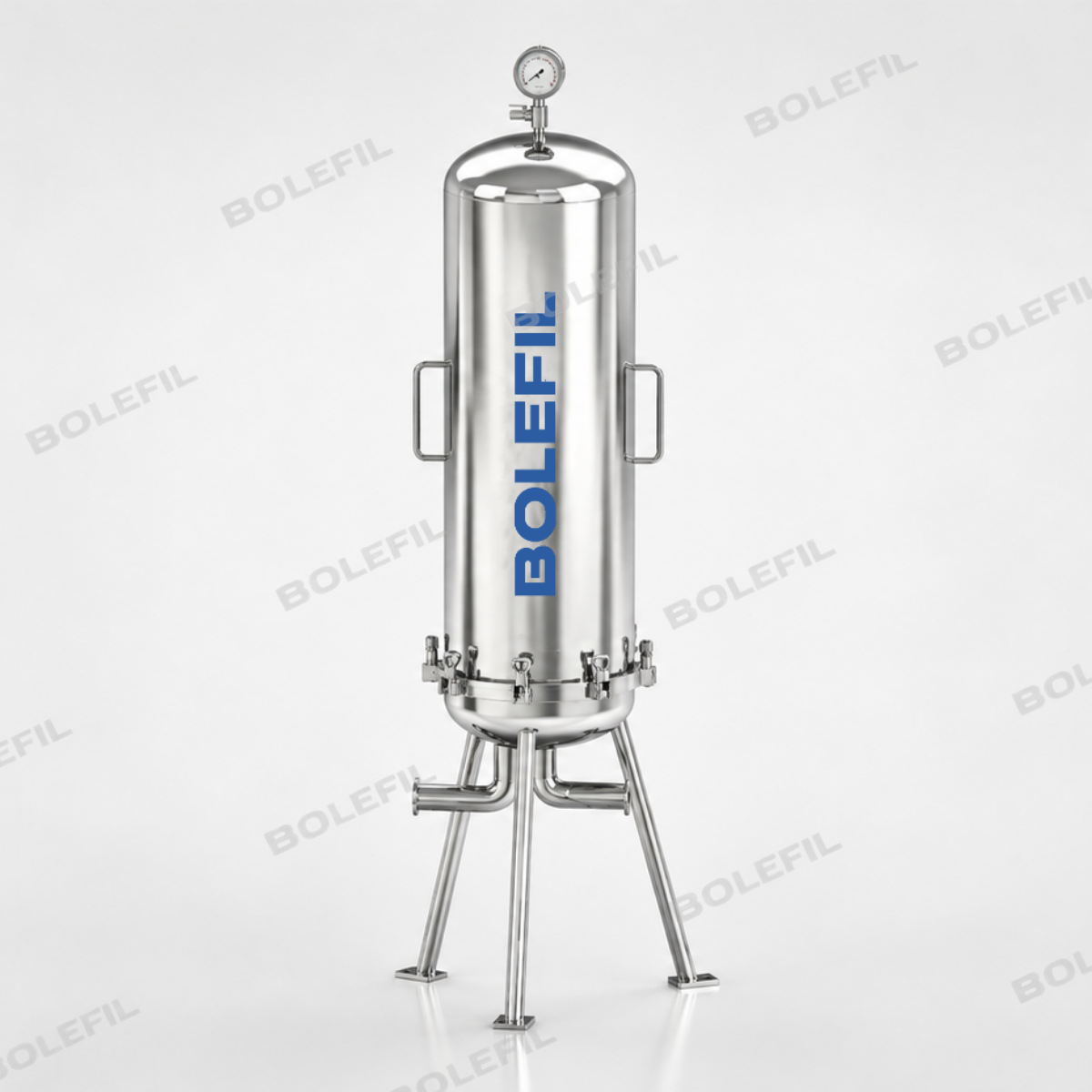

A sanitary filter housing designed for multiple cartridges with fixed plates.

If the interior cleanability must fulfill certain criteria, such as, for example, channels must be straight and welds must have a smooth, high-quality finish, we utilize a sanitary grade filter housing. These filter housings are used in the food, beverage, and electronics sectors of the economy.

Brother Filtration manufactures Sanitary Multi Round Filter Housing with surfaces polished to 0.3um Ra, which is for faster and easier surface cleaning. This helps to minimize the risk of contamination, improves clean-ability, and enhances corrosion resistance.

Sanitary drains and vents allow for easy sampling, integrity testing, venting, safe and easy discharge, and O-ring seals that fit 222 or 226 single-opening element seals. Optional sanitary drain and vent valves allow complete drainage of fluid after filtration and simplify filter disassembly.

Sanitary Multi Round Filter Housing is constructed of 316L or 304 stainless steel and includes multiple cartridge filters. It is simple to load and unload the filter element and clean the filter since the sanitary multi-round filter housing is attached by a quick-fit clamp or quick-opening ring bolt. The Sanitary multi-cartridge filter housing’s interior surface is mirror polished (roughness Ra 0.3 m).

Sanitary multi-round filter housing has no dead corners and is carefully polished on the interior and outside. The housing has a small size, a large filtration area, a low clogging rate, and strong chemical and thermal stability. At the same time, the housing is lightweight and simple to use and clean. The sterilizing and fine filtering operations frequently employ sanitary housing.

As mentioned above, this sanitary multi-round filter housing is designed for the food and pharmaceutical industries. It can be applied to applications such as ultrapure water, food & beverage, wine & beer, fine chemicals, and pharmaceutical.

Highlights

As a high efficiency sanitary filter housing, it can contain a amounts of cartridges, improve efficiency for filtration. We recommended this housing for our customers who need high standard and efficient filtration.

  • Designed specifically for the food/beverage and pharmaceutical industry
  • Clamp/swing bolt closure
  • Available with 226 style cartridge connectors
  • Gauge port, vent, and drains are standard
  • Machined cover gasket groove provides positive O-ring sealing
  • Tri-clamp or Flange inlet & outlet connections allow for easy piping and drain connections permit quick evacuation of housing
  • Polishing Grade ra0.4 makes the housing easily clean.

Brother Filtration designs and manufactures the sanitary multi-round filter housing for high demands industries, especially food & beverage and pharmaceutical. We believe it can satisfy your needs.

  • High-quality sanitary stainless steel 304/316L construction, so has a long service life
  • Easy to install and replace the filter element
  • The filter cartridge and housing are no media shedding, stable high performance
  • Sanitary cartridge housing is high-temperature resistance, acid and alkali resistance
  • High efficiency

Materials of construction

Head/Shell/Connections 304L or 316L stainless steel
Davit Handle and Eye Nuts 304L Stainless Steel
Mounting Legs 304L Stainless Steel



Connections

Standard Inlet/Outlet SORF ANSI #150 Flanges
Optional DIN,JIS,GB
Standard Drain/Vent Ports PT
Optional NPT,BSP



Gaskets

Standard EPDM
Optional Silicone, Buna N, Viton
Surface finishing Standard polishing
Maximum Operating Pressures 150psi (10 bar)
250psi (16 bar)
Max temperature 120℃ as standard Optional
Options PED certificated
ASME VIII Section
Special connection locations
Higher Pressure Ratings
Other materials for construction
Other material Gasket

Order Information

PMC -E -2R -10 -T -B
Model Material No. of cartridge Cartridge filter Sizes Inlet/Outlet connection Gasket materials
Phasic Multiple Cartridge Housing E=SS 304L
S=SS 316L
2R=2PCS
10R=10PCS
10=10inch
40=40inch
T=Thread
F=Flange
B=Buna N
E=EPDM
S=Silicon
V=Viton
Notice: Due to housing has variety in design, please contact BROTHER sales for more information
