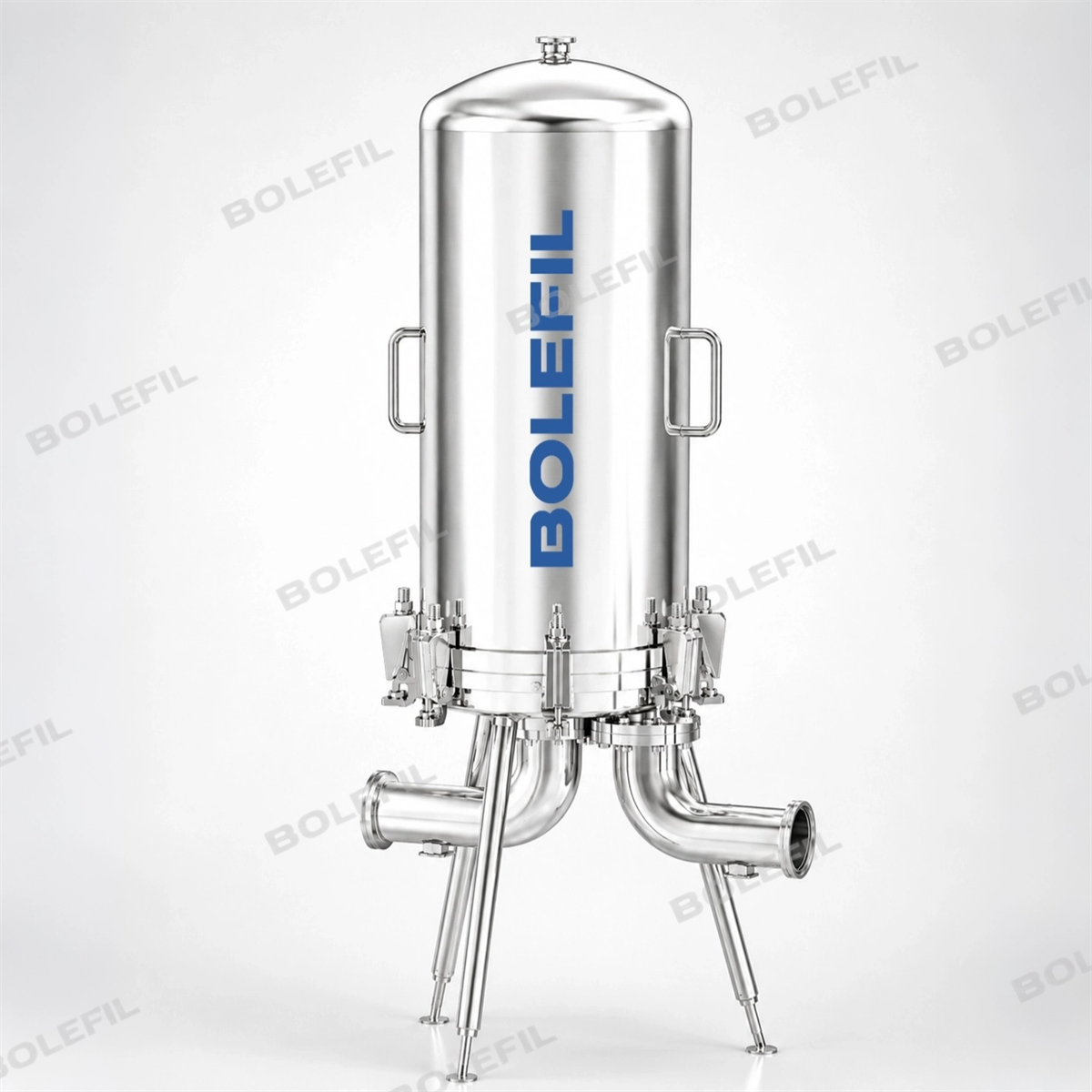

Sanitary Multi Round Filter Housing (Detachable plate)

Overview

A sanitary filter housing designed for multiple cartridges with a detachable plate

If the interior cleanability must fulfill certain criteria, such as, for example, channels must be straight and welds must have a smooth, high-quality finish, we utilize a sanitary grade filter housing. These filter housings are used in the food, beverage, and electronics sectors of the economy.

Brother Filtration manufactures Sanitary Multi Round Filter Housing with surfaces polished to 0.3um Ra, which is for faster and easier surface cleaning. This helps to minimize the risk of contamination, improves clean-ability, and enhances corrosion resistance.

Sanitary drains and vents allow for easy sampling, integrity testing, venting, safe and easy discharge, and O-ring seals that fit 222 or 226 single-opening element seals. Optional sanitary drain and vent valves allow complete drainage of fluid after filtration and simplify filter disassembly.

The sanitary multi-round filter housing(detachable plate) is connected to the filter by a quick-fit clamp or quick-opening ring bolt, making it simple to load and unload the filter element and clean the filter. The internal surface of a sanitary multi-cartridge filter housing is mirror polished (roughness Ra 0.3 m).

The interior and exterior of the sanitary multi-round filter housing have been meticulously polished, and it has no dead corners. The housing offers good chemical and thermal durability, a large filtration area, a low clogging rate, and a small size. The housing is also portable, user-friendly, and easy to clean. Sanitary housing is widely used in sterilizing and fine filtering processes.

The detachable one is easier to disassemble which is the most outstanding advantage of this type. Except for the benefits like the fixed plate sanitary multi-round filter housing, this type has no dead corner and no contaminants adhere to it. The detachable plate allows for a complete cleaning when rigorous cleaning requirements are necessary.

Brother Filtration Sanitary Multi Round Filter Housing (Detachable plate) is widely used for applications like ultrapure water, food & beverage, wine & beer, fine chemicals, and pharmaceutical.

Highlights

Brother Filtration dedicates to manufacture high-quality products and high standard products, we are able to provide you with all-powerful filter housings for extreme high demands in pharmaceutical or food & beverage industry.

  • A detachable plate allows for complete cleaning
  • Easy to disassemble
  • No dead corner, no contaminants adherence
  • Clamp/swing bolt closure
  • Available with 226 style cartridge connectors
  • Gauge port, vent, and drains are standard
  • Machined cover gasket groove provides positive O-ring sealing
  • Tri-clamp or Flange inlet & outlet connections allow for easy piping and drain connections permit quick evacuation of housing
  • Polishing Grade ra0.4 makes the housing easily clean

As a sanitary filter housing for multiple cartridges with detachable plate, this filter housing has not only excellent at high efficiency but also excellent for disassembling and cleaning.

  • High-quality sanitary stainless steel 304/316L construction, so has a long service life
  • Easy to install and replace the filter element
  • The filter cartridge and housing are no media shedding, stable high performance
  • Sanitary cartridge housing is high-temperature resistance, acid and alkali resistance
  • High efficiency
  • A detachable plate helps to reach a real sanitary level

Materials of construction

Head/Shell/Connections 304L or 316L stainless steel
Davit Handle and Eye Nuts 304L Stainless Steel
Mounting Legs 304L Stainless Steel



Connections

Standard Inlet/Outlet SORF ANSI #150 Flanges
Optional DIN,JIS,GB
Standard Drain/Vent Ports PT
Optional NPT,BSP



Gaskets

Standard EPDM
Optional Silicone, Buna N, Viton
Surface finishing Standard polishing
Maximum Operating Pressures 150psi (10 bar)
250psi (16 bar)
Max temperature 120℃ as standard Optional
Options PED certificated
ASME VIII Section
Special connection locations
Higher Pressure Ratings
Other materials for construction
Other material Gasket

Order Information

PMC -E -2R -10 -T -B
Model Material No. of cartridge Cartridge filter Sizes Inlet/Outlet connection Gasket materials
Phasic Multiple Cartridge Housing E=SS 304L
S=SS 316L
2R=2PCS
10R=10PCS
10=10inch
40=40inch
T=Thread
F=Flange
B=Buna N
E=EPDM
S=Silicon
V=Viton
Notice: Due to housing has variety in design, please contact BROTHER sales for more information
