String Wound filter cartridge is another type the depth cartridge filters. It is first introduced to replace melt blown cartridge filters in many applications where larger dirt holding capacity requested.
Brother Filtration supplies various choices for customer’s different needs. We have PP string wound cartridge filters, cotton string wound cartridge filters and glass fiber cartridge filters. All the above can be with PP inner core or stainless steel inner core. It is decided by the application operation tempura and PH range. All components are HSE friendly and if further requirements brought up, we are glad to offer you advice and choose the most suitable string wound filter cartridge for you.

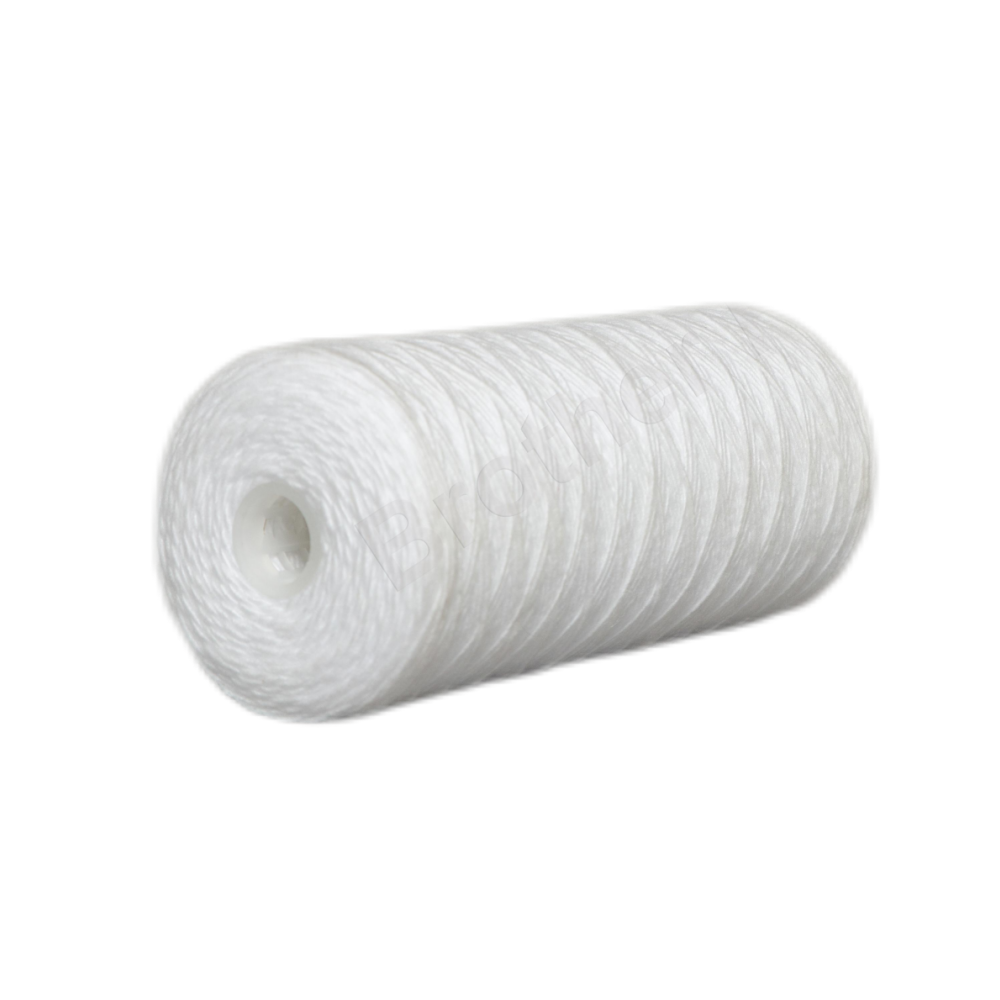

Polypropylene String Wound Filter with density slope, providing longer service life since the ideal density slope from coarse (outside) to fine (inside) is equipped. Depending on the conditions of use (liquids, temperature), the materials of filter media and the inner core can be chosen.

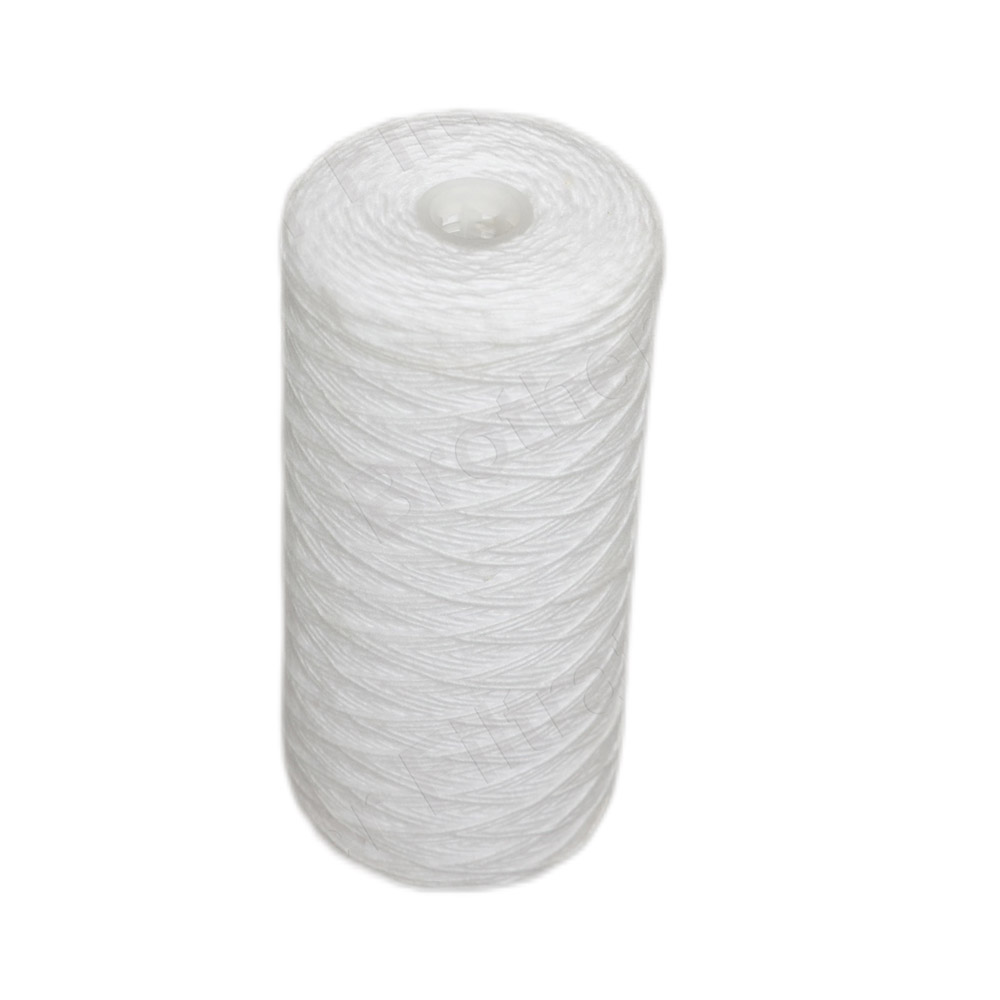

PP Yarn string wound cartridge filter can be used for a wide range of liquids since a widely used polypropylene is used for both filter media and inner core.
BCSW | -025 | -PP | -5 | -0100 | -E | -0 | -P |
Product | Type | Material | Length | Micron Rating | O-ring | Connection | Inner Core |
ProClean String Wound Cartridge | 025=OD 2.5inch 045=OD 4.5inch |
PP=Polypropylene GF=Glass Fiber CT=Cotton |
5=5 inch 10=10inch 20=20inch 30=30inch 40=40inch 50=50inch 60=60inch 70=70inch |
0100=1um 0500=5um 1000=10um 1500=15um 2000=20um 4000=40um 7000=70um 10000=100um |
N=NO E=EPDM S=Silicon V=Viton B=Buna-N |
0=DOE 1=222 Flat 2=222 Fin 3=226 Flat 4=226 Fin |
P=PP Core S=SUS 304 U=SUS 316 |
1 inch =25.4 cm
Notice: Due to filter has variety in design, please contact with BROTHER sales for more information
