granule carbon


Granule carbon, made from raw organic materials

The carbon filter cartridge in Brother Filtration is made of excellent activated carbon and polypropylene components for high-precision filtration. With years of experience, we are able to offer you carbon block filters and granular carbon block filters to help you get clear good taste water.

A carbon Filter Cartridge is a device that assists in the filtration process of water. It is a barrier that will capture materials that contaminate drinking water. The other main function of a Carbon Filter Cartridge is to absorb peculiar smells. It can work independently or with other filtration devices.

What is a granule-activated carbon filter?

Granule-activated carbon is made from raw organic materials, such as coconut shells or coal, which are high in carbon. The activated carbon removes certain chemicals from the water passing through a GAC filter by trapping the chemical in the GAC. However, other chemicals, like iron and nitrate, are not attracted to the carbon and therefore are not effectively removed.

Granule-activated carbon filters are made using carbon that has been ground up and is held together loosely inside a cartridge or other container. And the looser nature of GAC filters means that they provide a much higher flow rate, which essentially means that you can purify much more water in less time with less effectively.

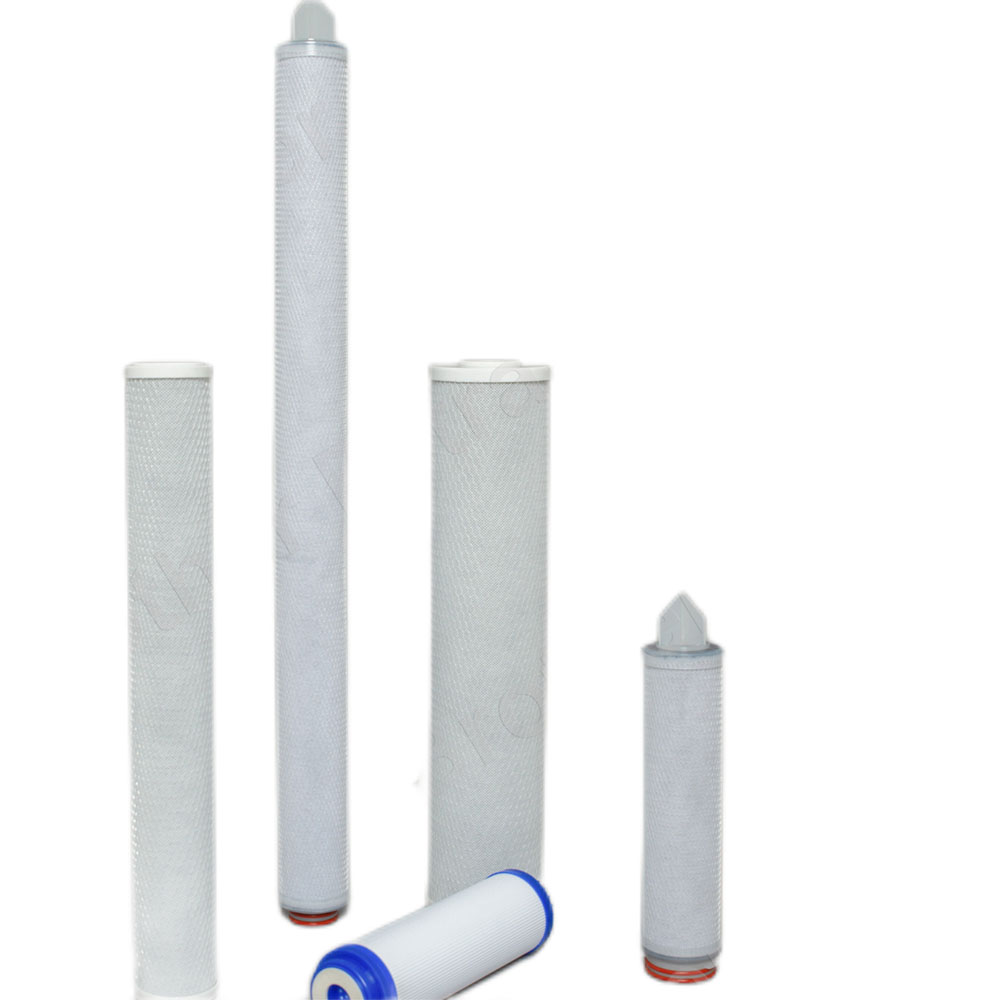

Brother Filtration ProClean Granule Activated Carbon Filter has strong adsorption without secondary pollution. At the same time, its abundant zigzag micro-pores also have a blocking effect on larger impurities, and every water drop can completely contact the activated carbon, due to its special structure.


As one of carbon filter, the ProClean Activated Carbon filter has unique characteristics, such as its zigzag micro-pores and strong adsorption, which make it competitive and able to combine with other filter solution.

  • Abundant zigzag micro-pores
  • Every drop of water can completely contact the activated carbon
  • Granule-activated carbon and other filtering materials can be used in combination to filter different water pollution
  • Strong adsorption, no secondary pollution
  • Widely used in household and commercial water purification
  • Easy installation

The ProClean Granule Activated Carbon has not only the basic characteristics of a carbon filter cartridge, but also the advantages based on its granule structure. It has a high flow rate while removing odors from water.

  • Low-pressure drop
  • High flow rates
  • Effective reduction of bad taste and odor, and chlorine taste & odor
  • Able to block large impurities

Materials of construction

Filter media Bonded porous activated carbon with polyethylene binders
Outer netting polyethylene
End cap polypropylene
Inner/Outer wrap polypropylene
Operating conditions
Maximum operating temperatur 180℉(82℃)
Outside diameter 2.56″(65 mm)
Lengths 10″,20″,30″,40″
Retention ratings 5μm

Order Information

BCCB -E -025 -10 -0500 -500
Product Model Size Length Micro Rating Lodine option
ProClean Carbon Filter E= Extruded carbon
G= Granule carbon
025=OD 2.5 inch
045=OD 4.5 inch
10=10 inch
20=20 inch
30=30 inch
40=40 inch
0500=5 um 500= Iodine option 500
1000= Iodine option 1000
1inch= 25.4 mm
Notice: Due to the filter having variety in design, please contact Brother Sales for more information.
