Coolant Filtration for AI Data Centers

Not all data centers do the same job, and their cooling needs reflect that. A traditional facility is essentially a storage-and-transmission operation a digital warehouse. An AI compute center runs a different workload entirely: deep learning, scientific simulation, autonomous-driving training the processing behind tools like ChatGPT. That difference drives everything about filtration requirements, since AI workloads throw off more heat, more consistently, and the water systems supporting them have to scale to match. A single 500 kW AI compute center can generate 5–7 m³ of air-conditioning condensate a day. That volume, paired with strict uptime demands and pressure to cut water use, is what’s driving fast growth in the data center filtration market.

Why Is Cooling Important in Modern Data Centers?

Server racks keep getting denser, and air cooling simply can’t pull heat out fast enough anymore that’s the reason liquid cooling has taken over in high-density deployments. A heat-transfer fluid does the work instead: water in cold plate systems, dielectric fluid in immersion setups. Either way, the fluid absorbs heat from the hardware and moves it to a heat exchanger, cooling tower, or CDU.

Liquid cooling outperforms air on heat removal and takes up less physical space but only when the fluid itself is clean. Particles, biofilm, corrosion byproducts, and sediment cut heat transfer efficiency, clog microchannels, break down dielectric fluid, and corrode metal parts. Filtration isn’t a bolt-on step in liquid cooling design; it’s the foundation the whole system depends on, and it’s what any solid CDU filtration setup is built around.

Cooling for AI Servers: What’s the Challenge?

AI server environments demand more from filtration than most industrial or commercial cooling systems do. Extreme heat load, continuous operation, and sensitive hardware combine to raise the bar on what “good enough” filtration looks like.

Industry-Specific Considerations

High-density AI servers need continuous high-flow cooling for extended stretches, with almost zero room for downtime. Stopping a loop to swap a filter even briefly can disrupt operations and add cost fast.

Filtration Requirements

• High flow and longevity. Filters need to process large fluid volumes without frequent swaps. Longer service life means fewer interruptions. High flow filter cartridges exist specifically for this job.
• Water quality characteristics. Cooling water usually carries suspended particles, while microbial contamination stays relatively low. That puts the emphasis on absolute particulate filtration with minimal pressure drop, not on demineralization or sterilization as the main concern.
• Chemical compatibility. The chemical environment isn’t harsh, but antiscalants, corrosion inhibitors, and biocides show up regularly. Filter media has to tolerate those additives without breaking down compatibility matters more here than resistance to extreme pH or salinity.

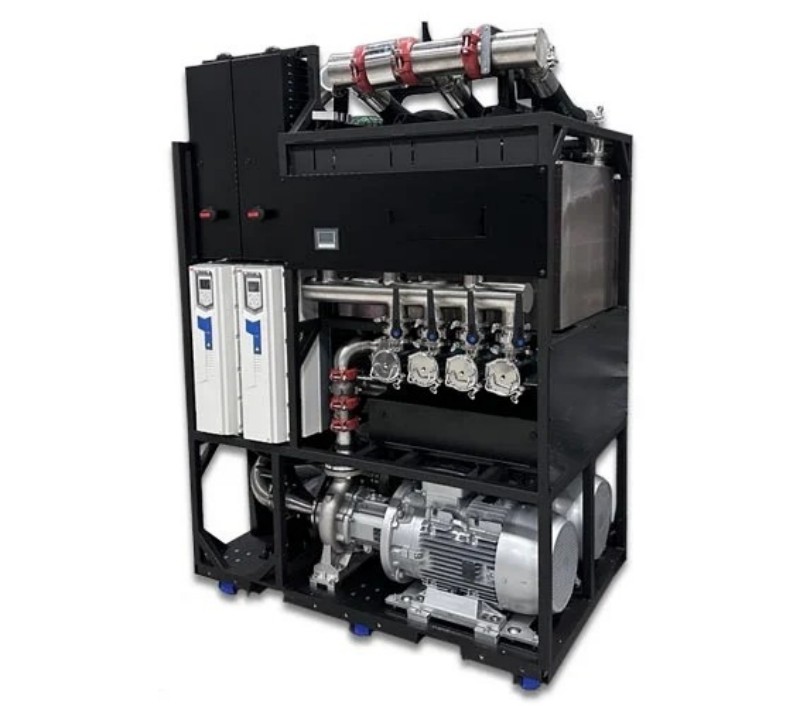

Types of Liquid Cooling Systems

The cooling architecture in use determines both filtration requirements and fluid choice. AI server environments split into two main approaches.

Cold plate cooling runs liquid through plates mounted directly on CPUs or GPUs, pulling heat away right at the source and holding temperatures steady. The channels inside those plates are narrow, so contaminated fluid restricts flow quickly.

Immersion cooling submerges entire servers in dielectric fluid, letting heat dissipate evenly from every component at once. It enables tighter, more energy-efficient server designs but fluid cleanliness matters just as much, since contamination in an immersion bath touches every submerged part simultaneously, not one cold plate at a time.

Traditional data centers generally favor cold plate cooling. AI-focused facilities lean toward immersion. In both cases, clean fluid is what protects the hardware and keeps performance consistent. For AI-specific guidance, see CDU filters for AI data centers.

Water-Based vs. Non-Water-Based Coolants

Reliable cooling comes down to two things working together: the right fluid and multi-stage filtration. Get both right and you prevent corrosion, scaling, microbial growth, and downtime across industrial and data center systems.

Cooling Fluid Types

Cooling fluids fall into two categories:

• Water-based coolants : deionized water and glycol solutions, formulated for low conductivity, controlled pH, and minimal hardness. Glycol variants add freeze protection along with corrosion inhibitors, antioxidants, and biocides; propylene glycol versions work for low-toxicity or food-grade applications.
• Non-water-based coolants : organic oils for immersion cooling, fluorinated liquids for cold-plate or two-phase systems, chosen based on boiling point requirements.

Choosing the right fluid up front takes pressure off the filtration system downstream a core part of any data center water treatment solution.

Multi-Stage Cooling Water Filtration

Modern data centers don’t rely on a single filter, they treat cooling water in stages, and each stage in a high-density AI environment has its own target to hit.

1. Pretreatment: Cooling and Coarse Filtration

Condensate usually arrives between 15–30°C, running hotter in AI compute centers using liquid cooling. Plate heat exchangers bring that temperature below 50°C, while coarse filters pull out large particles: dust, rust, to prepare the water for finer treatment.

2. Primary Filtration: Precision Particle Removal

Fine filters: high flow filter cartridges or bag filters , strip out metal micro-particles and colloids, holding turbidity under 1 NTU. Activated carbon filtration can go a step further, removing organic residues and oil so water meets the standard sensitive cooling equipment requires.

3. Advanced Treatment: Ion Removal and Sterilization

AI compute centers typically need dual-stage reverse osmosis to bring conductivity down to ≤5 μS/cm; standard data centers can usually get by with single-stage RO or softening resins. Where ultra-pure water is required, electrodeionization or polishing mixed-bed units handle the rest. UV or ozone sterilization keeps microbial counts under 1 CFU/mL this UV water sterilizer overview covers how that stage works.

4. Post-Treatment: Water Conditioning and Reuse

The last stage conditions water for reuse. pH gets stabilized between 7.0 and 8.5 to prevent corrosion, and a terminal 0.2 μm PP pleated filter cartridge catches any particles still in the water. IoT sensors track water quality continuously triggering alarms, switching to backup filters, and adjusting CDU flow to keep everything stable.

FAQ Section

What are the filtration requirements for NVIDIA H100 liquid-cooled racks?

H100 racks need high-flow, low-pressure-drop filtration that can run continuously without frequent servicing, since these racks operate under sustained high loads. Precision particulate filtration in the cold plate loop is the priority, usually paired with tight micron control to protect narrow internal channels.

Is side-stream filtration enough for a hyperscale data center?

Side-stream filtration handles secondary loops and immersion tanks well, but hyperscale facilities typically pair it with full inline filtration on the primary loop. Side-stream alone leaves the main flow path exposed to larger incoming debris.

What micron rating is needed for data center cooling water?

Primary filtration generally aims to keep turbidity under 1 NTU, while terminal polishing filters go as fine as 0.2 microns before water re-enters the loop. The exact rating depends on how sensitive the downstream cold plates or components are.

How do I prevent cold plate clogging in direct-to-chip cooling?

Consistent upstream filtration is the fix coarse filtration for large debris, precision filtration for micro-particles, and ongoing monitoring of turbidity and pressure drop. Regular inspection of primary filters catches buildup before it reaches the cold plate channels.

Are self-cleaning filters better for secondary cooling loops?

Self-cleaning filters cut manual maintenance in secondary loops by backwashing automatically once pressure drop crosses a set threshold, which fits continuous-operation environments well. They’re not mandatory everywhere, but they’re a strong choice wherever downtime for manual servicing isn’t an option.

What happens if micro-channels in GPUs get fouled?

Fouled micro-channels restrict coolant flow to the GPU, cutting heat transfer and raising operating temperature at the point where cooling matters most. Left alone, that leads to thermal throttling and, eventually, faster hardware wear.

How often should dielectric fluid be filtered in immersion cooling?

Frequency depends on server density and fluid volume, but continuous or scheduled side-stream filtration is standard practice not periodic batch cleaning. Continuous filtration extends fluid life and pushes back the need for a full fluid replacement.

How do you remove particulate from single-phase immersion tanks?

Single-phase immersion tanks typically rely on continuous side-stream filtration: a portion of the fluid is drawn out, filtered, and returned. This keeps the bath clean without disrupting server operation or draining the tank.

What are the best filtration systems for two-phase immersion cooling?

Two-phase systems need filtration media that’s fully compatible with the fluorinated fluids in use, since standard media can degrade on contact. The focus stays on removing particulate without introducing anything that could affect the fluid’s boiling behavior.

What is the ROI of installing advanced cooling filtration?

ROI comes mainly from less downtime, longer equipment life, and lower energy costs from holding design-level pressure drop across the system. Extended fluid life adds to the savings too, since dielectric and treated water fluids are expensive to replace.

How often should cooling water filters be replaced?

It depends on water source quality and system load, but rising pressure drop across the filter housing is the clearest signal a change is due. Facilities on stable water sources often set a baseline schedule and adjust from there based on pressure monitoring.
