Why filtration is Importance for Solvent-Based Ink?

In the fast-paced world of printing, achieving impeccable print quality while ensuring the longevity of printing equipment is crucial. One often-overlooked aspect that significantly impacts both these factors is solvent-based ink filtration.

In this blog, we will explore the importance of proper filtration in solvent-based ink systems and the benefits it offers to printers.

Filtration in Solvent-Based Ink processes

Solvent-based inks are widely used in various printing processes, including flexography, gravure, and digital printing. These inks contain a combination of solvents, resins, pigments, and additives. Proper filtration of these inks is essential for several reasons:

Particle Removal: Solvent-based inks are vulnerable to contamination by various particles, such as paper fibers, dust, or debris. Filtration ensures the removal of these particles, preventing their accumulation on print heads or in the ink delivery system.

Color Consistency: Filtration eliminates impurities from the ink, enabling consistent color reproduction throughout the printing process. By removing any contaminants, the filters help maintain vibrant and accurate colors on print media.

Equipment Protection: Microscopic particles can cause damage to delicate print heads, resulting in clogging or malfunctions. Effective filtration safeguards print heads and other components, extending their lifespan and reducing costly repairs.

Steps of Filtration Systems for Solvent-Based Inks

There are four steps of filtration in solvent-based inks, which can effectively remove particles and impurities, resulting in high-quality ink that meets the specific requirements of the printing process.

Pre-Filtration

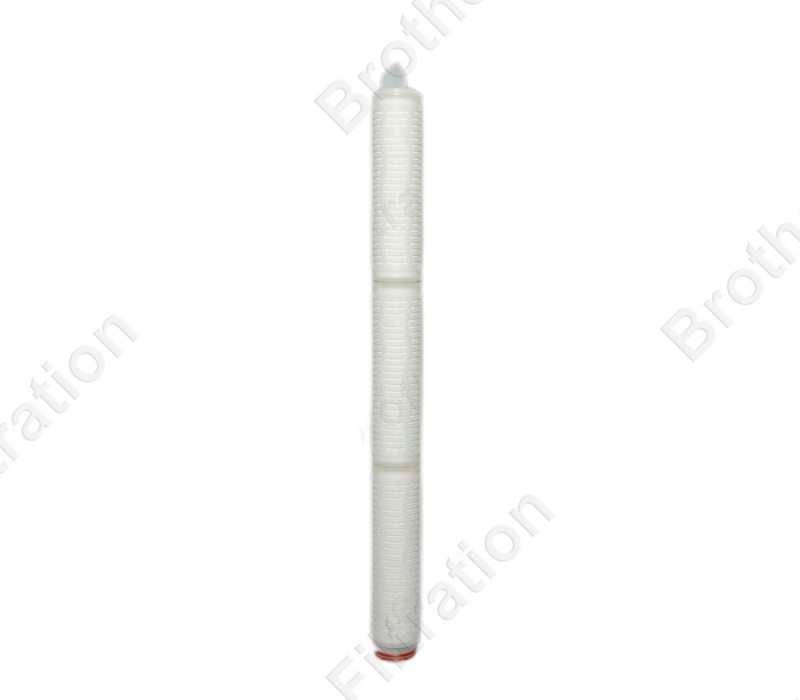

This initial filtration stage involves removing larger particles and debris from the ink. Prefilters, commonly made of polypropylene or pleated cartridges, are highly effective for this purpose. BROMEN™Pleated filter cartridges are highly effective in capturing particles with a size of 0.22um-100um.

In-Line Filtration

In-line filters assist in further refining the ink by removing smaller particles, ensuring a higher level of cleanliness. These filters are typically composed of high-quality materials such as stainless steel or nylon mesh and can capture particles that are 1-10 microns in size.

Final Filtration

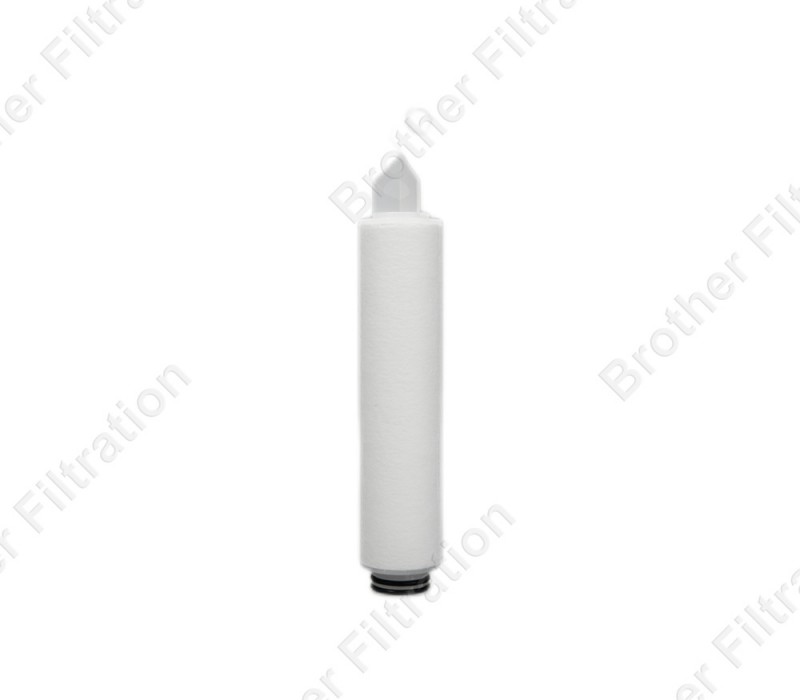

The final stage in the filtration process involves using fine membrane filters with pore sizes ranging from 0.2 to 1 micron. Melt-Blown Polypropylene cartridges help ensure the removal of any remaining contaminants and impurities, leading to a higher level of ink purity and color consistency.

Quality Control

Throughout the filtration process, quality control measures are essential to ensure the effectiveness of the filtration system. This includes regularly monitoring the pressure differentials across the filters, checking for any signs of contamination or clogging, and verifying the quality of the filtered ink through various testing methods.

Prefiltration for solvent-base ink

Prefiltration is critical in the filtration process for solvent-based ink. It plays a crucial role in maintaining the quality and efficiency of the filtration system. Prefiltration primarily focuses on removing larger particles and contaminants to prevent clogging of the main filtration system. By eliminating these larger particles, a consistent flow of ink is ensured, resulting in better print quality and minimizing defects like streaks or uneven ink distribution.

Additionally, prefiltration serves to protect the delicate components of the printing equipment. By removing abrasive particles at the prefiltration stage, the main filtration system can concentrate on capturing smaller contaminants. This protects the printing equipment from potential damage caused by these particles, ensuring its optimal performance and longevity.

Importance of final filtration in solvent-based ink filtration

Final filtration is equally important in solvent-based ink filtration. It is carried out after prefiltration and targets the removal of smaller particles and impurities that may have passed through the initial filtration stages. Final filtration plays a crucial role in achieving a high-quality end product.

By capturing these smaller particles, final filtration ensures color accuracy, adhesion properties, and overall print quality are not compromised. It helps to achieve consistent ink quality and prevents defects in the final print. Through the removal of remaining impurities, final filtration ensures that the ink meets the desired specifications and delivers the expected.

Benefits of Solvent-Based Ink Filtration

Solvent-based ink filtration offers numerous benefits, including enhanced print quality, minimized downtime, improved ink efficiency, and extended equipment lifespan. By effectively removing impurities, filtration ensures cleaner prints, reduces equipment maintenance, optimizes ink usage, and prolongs the lifespan of printing equipment.

Enhanced Print Quality

By removing impurities, filtration helps achieve cleaner and sharper prints, enhancing overall print quality. It ensures consistent ink flow, preventing smudging or streaking on print media.

Minimized Downtime

Filtration prevents clogging and blockages in the ink delivery system, reducing downtime associated with equipment maintenance. This allows for uninterrupted printing and increased productivity.

Improved Ink Efficiency

Effective filtration removes contaminants that can cause ink waste or reduce ink adhesion. This optimization leads to higher ink efficiency and cost savings in the long run.

Extended Equipment Lifespan

By preventing damage to print heads and other components, proper filtration contributes to prolonged equipment lifespan, helping printers get the most out of their investments.

Conclusion

Solvent-based ink filtration plays a critical role in achieving excellent print quality, protecting printing equipment, and optimizing overall operational efficiency. By implementing a comprehensive filtration system, printers can ensure cleaner and more consistent prints while extending the lifespan of their valuable equipment.

At Brother Filtration, we understand the importance of finding the best filter options for your specific needs. We are here to assist you in determining the most suitable filters for your application. Please feel free to reach out to us for personalized guidance.
