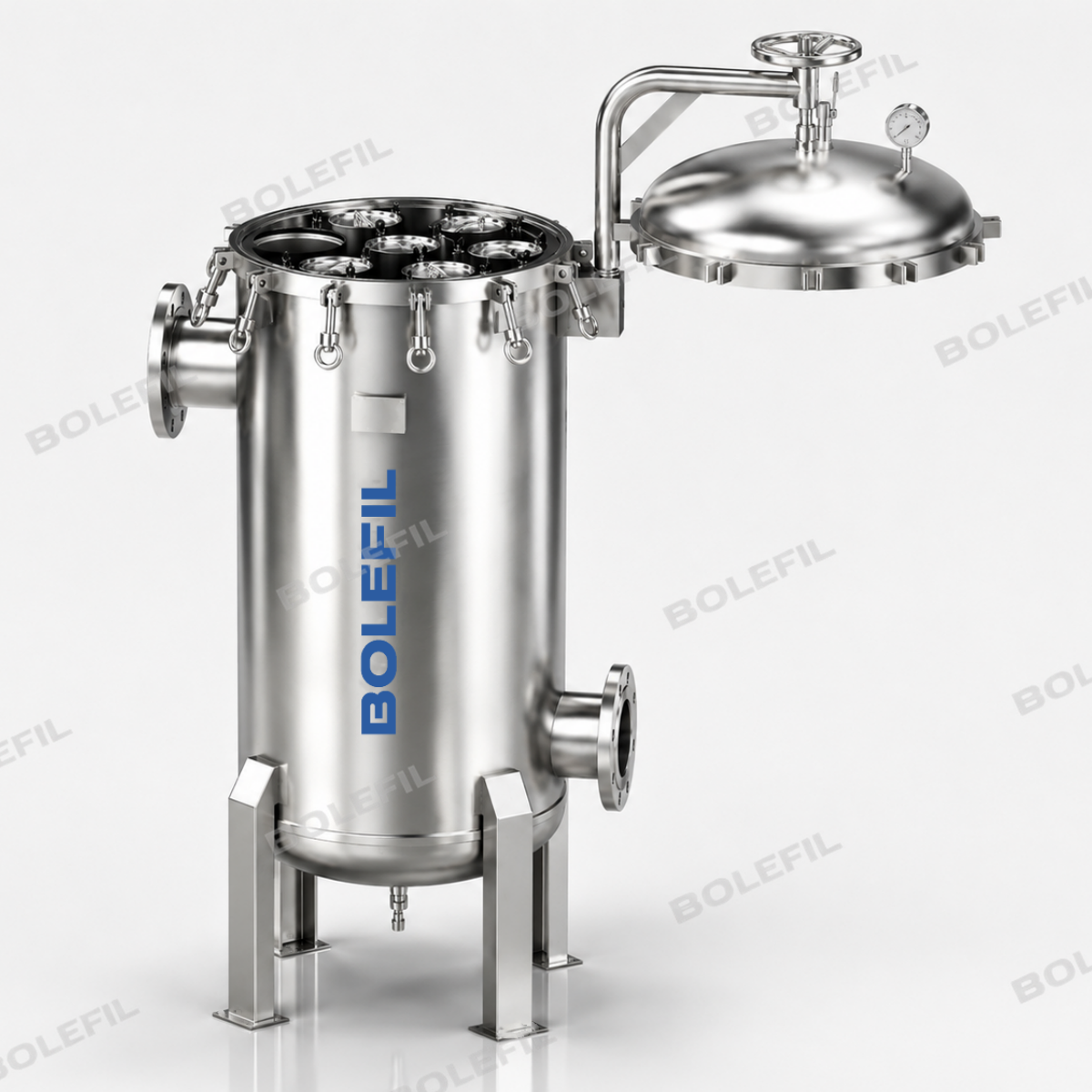

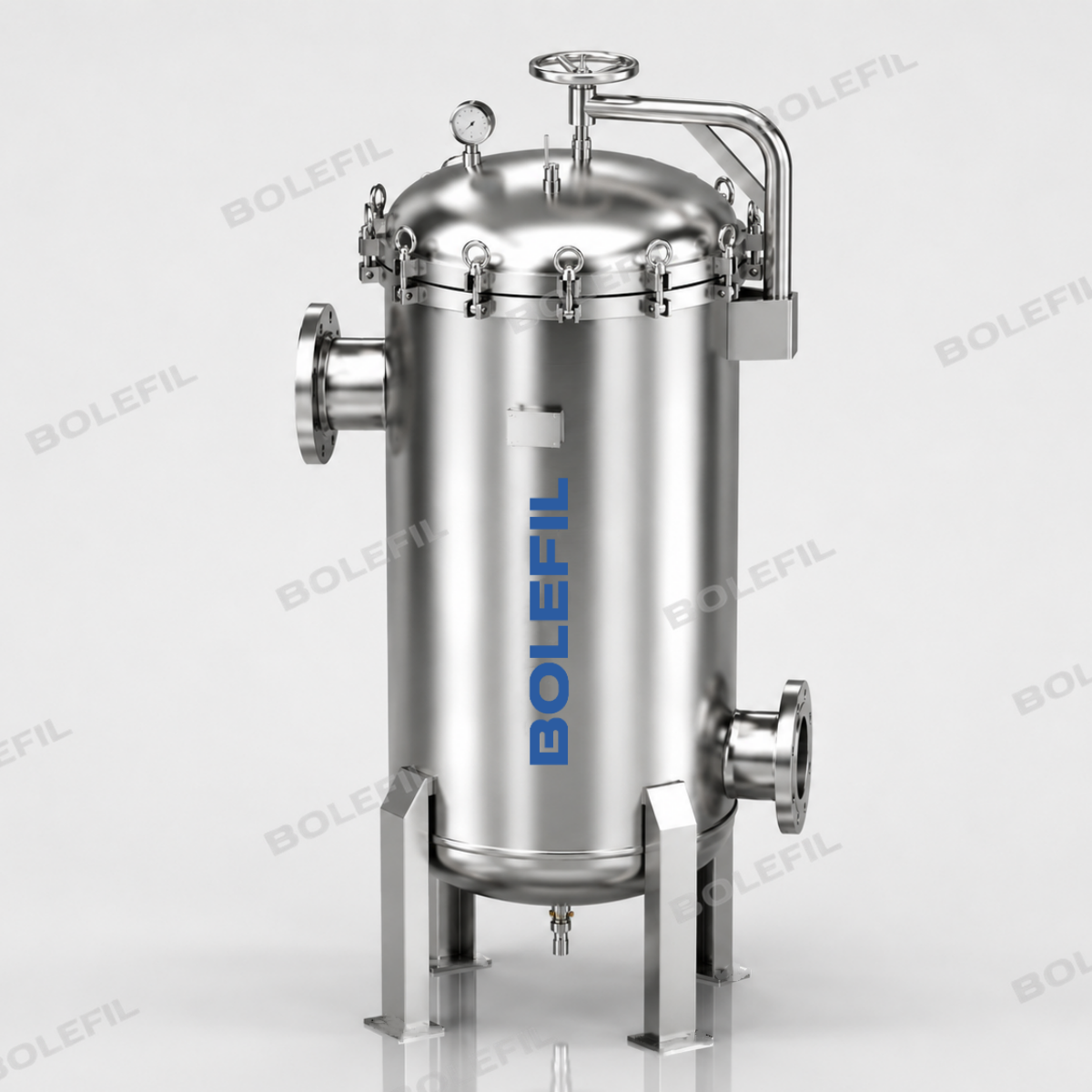

Classic Multi High Flow Cartridge Housing

Description

Features of  Multi High Flow Cartridge Housing

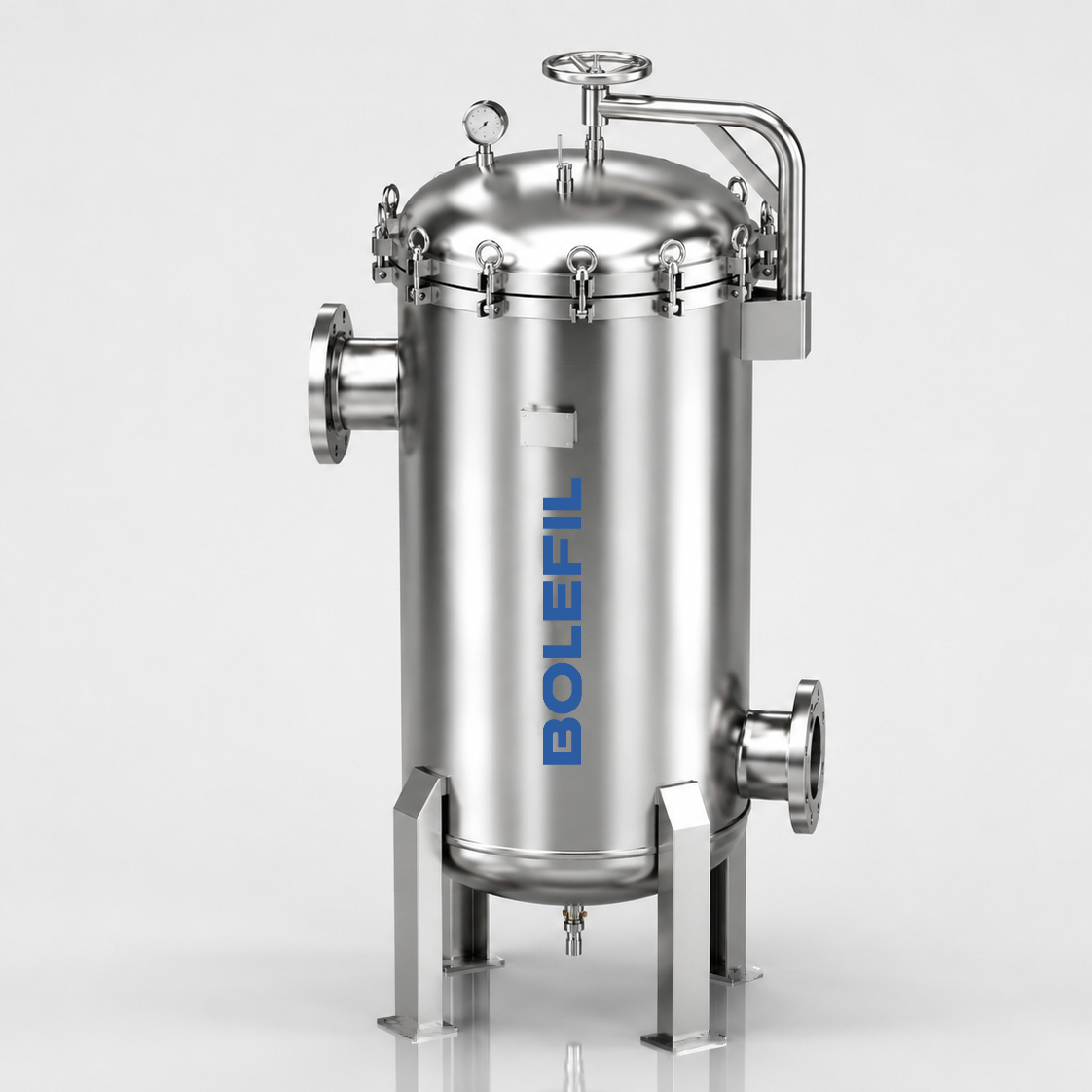

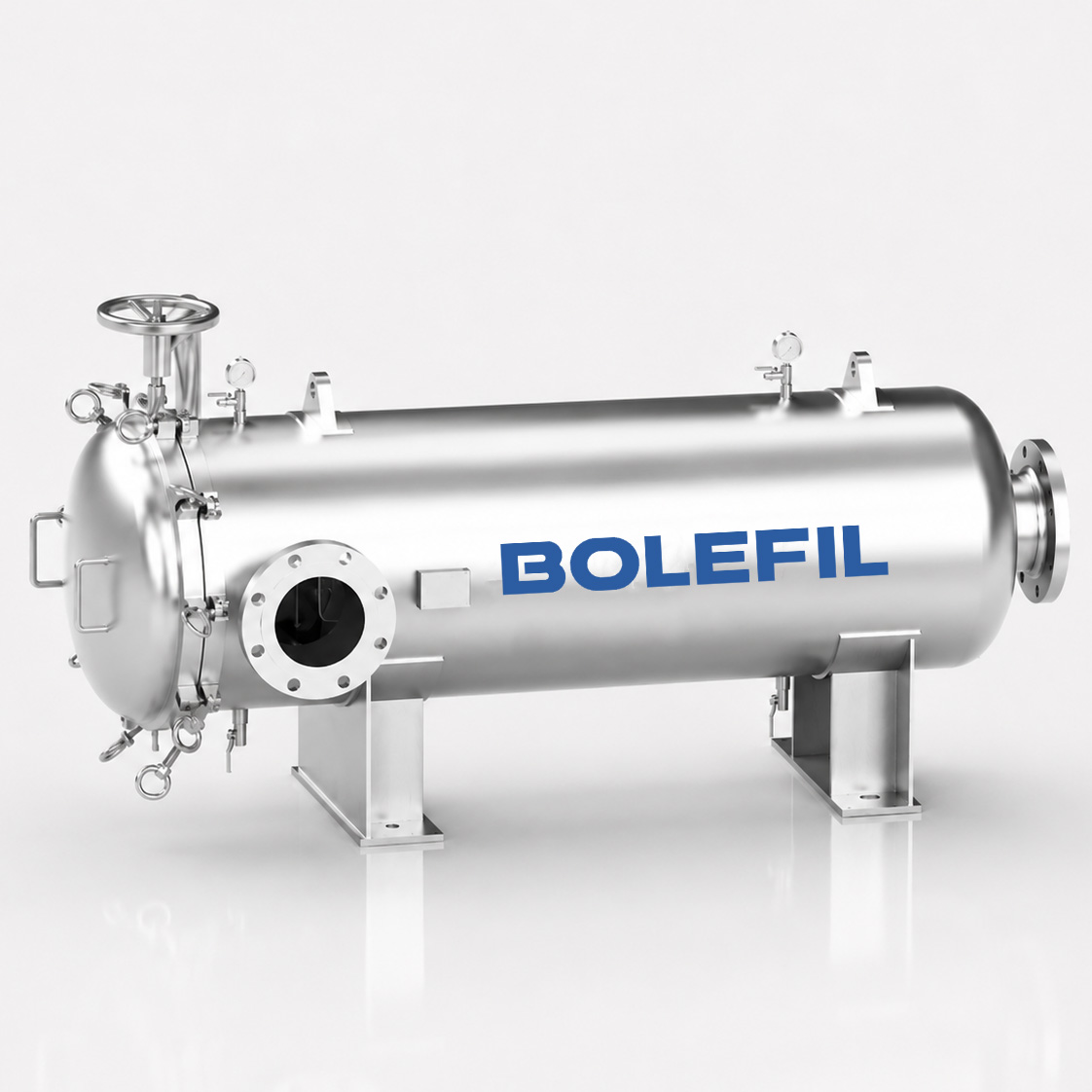

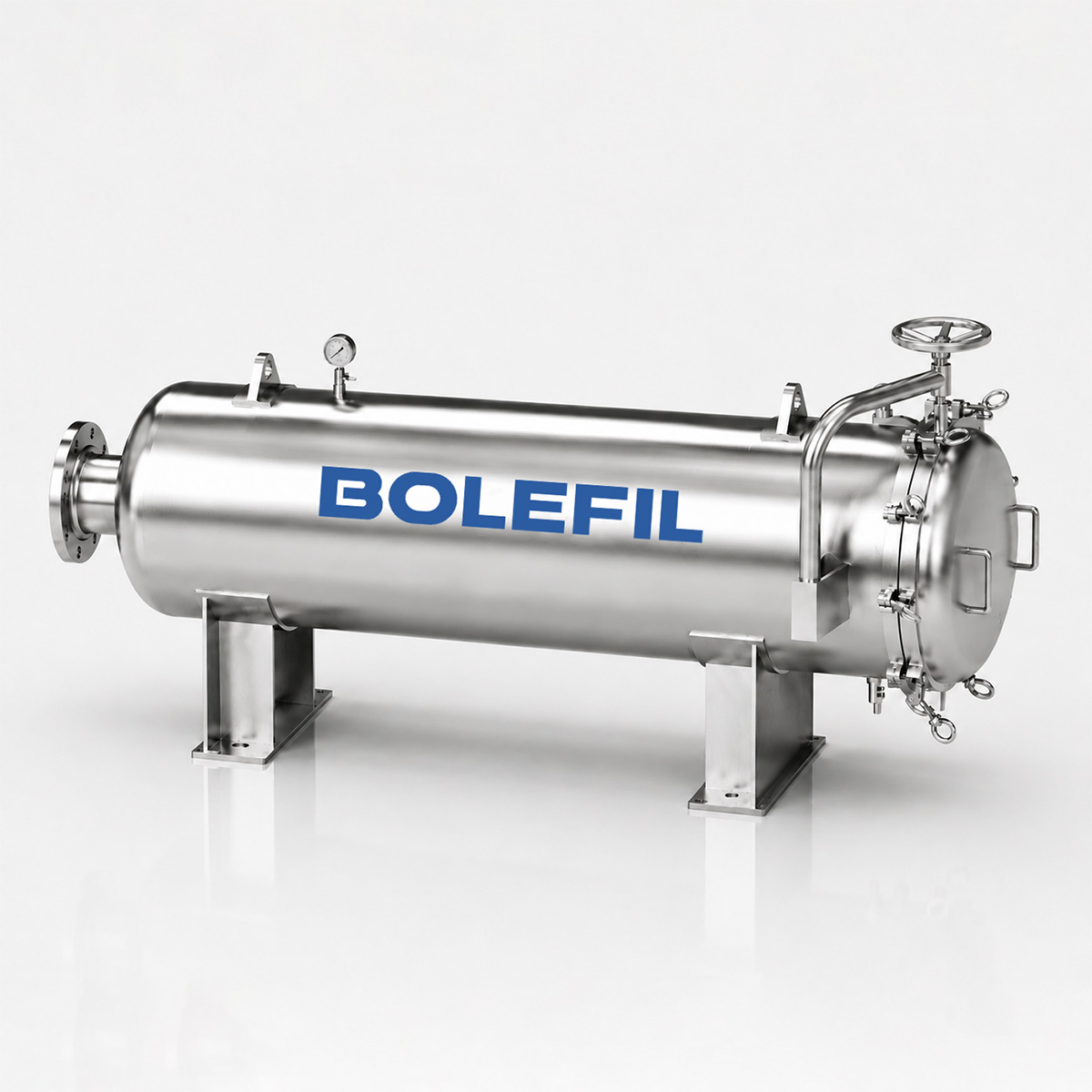

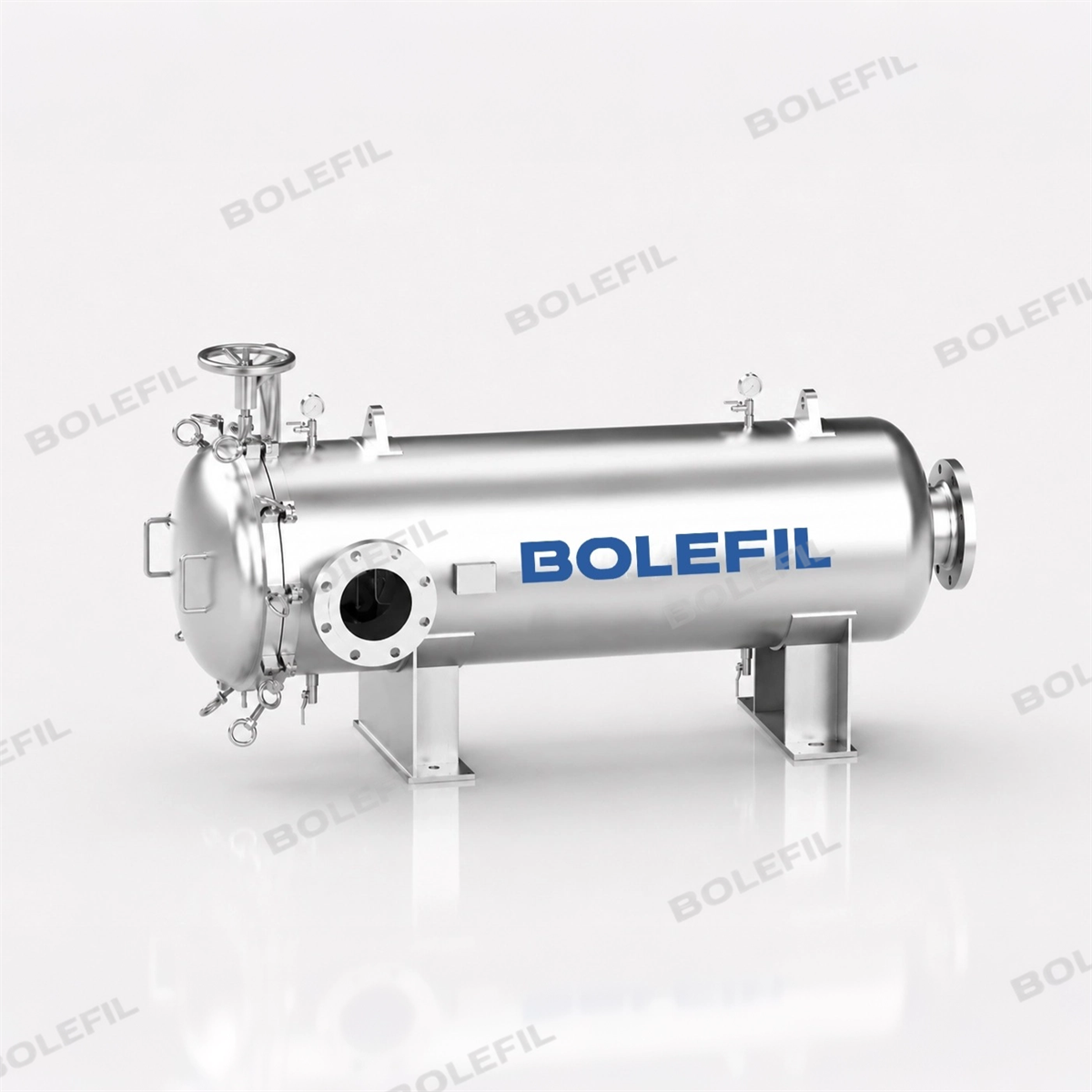

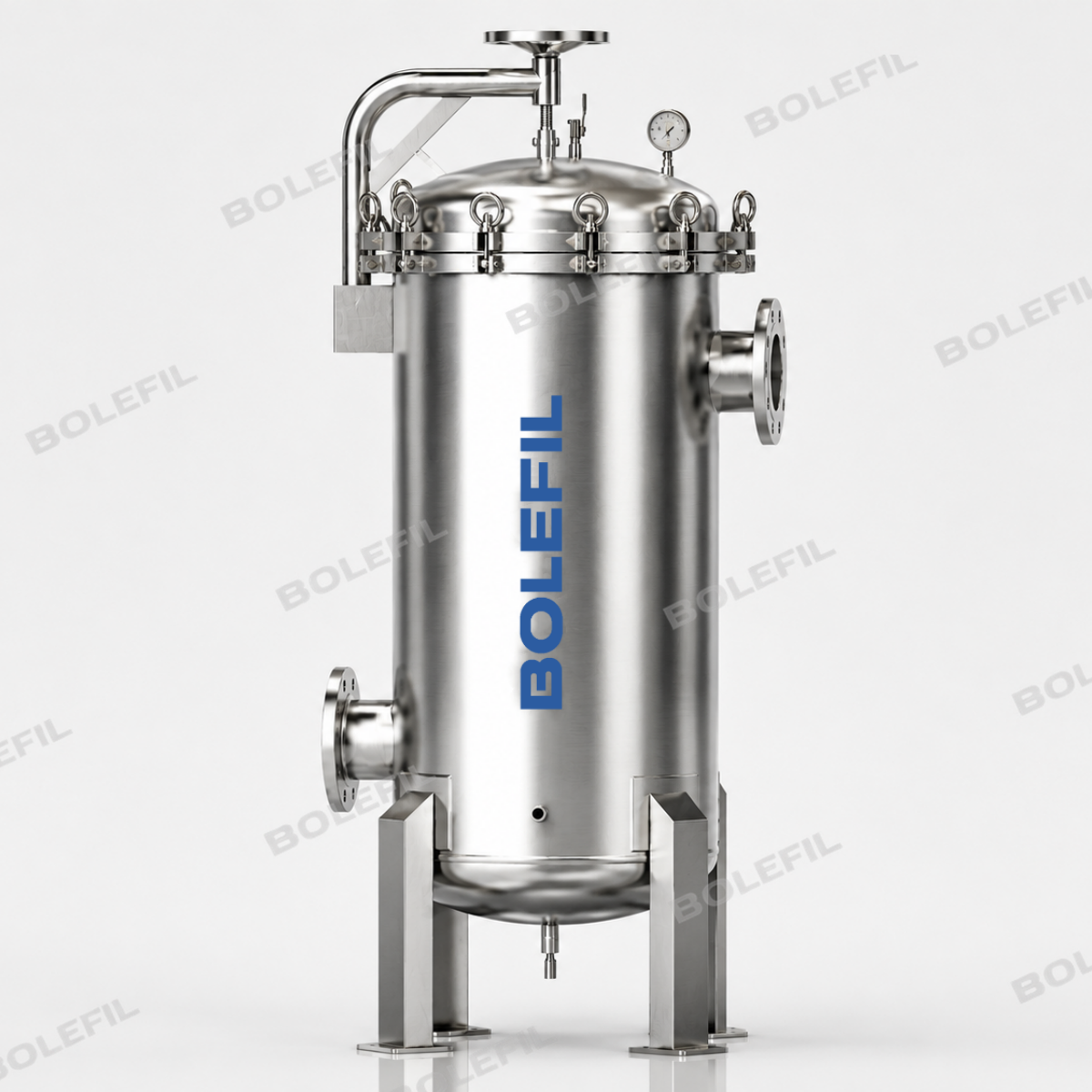

  • Vertical and horizontal designs offered
  • Designs for 2-20 filters per housing
  • Accepts 20inch, 40inch and 60inch High Flow Cartridges
  • Designed for high flow commercial or industrial filter applications as 2-20 elements per housing
  • Heavy-duty 304L or 316L Stainless steel construction housings for maximum durability
  • Optional carbon steel ( Sprayed with halar ) and duplex filter housing for seawater or corrosion applications

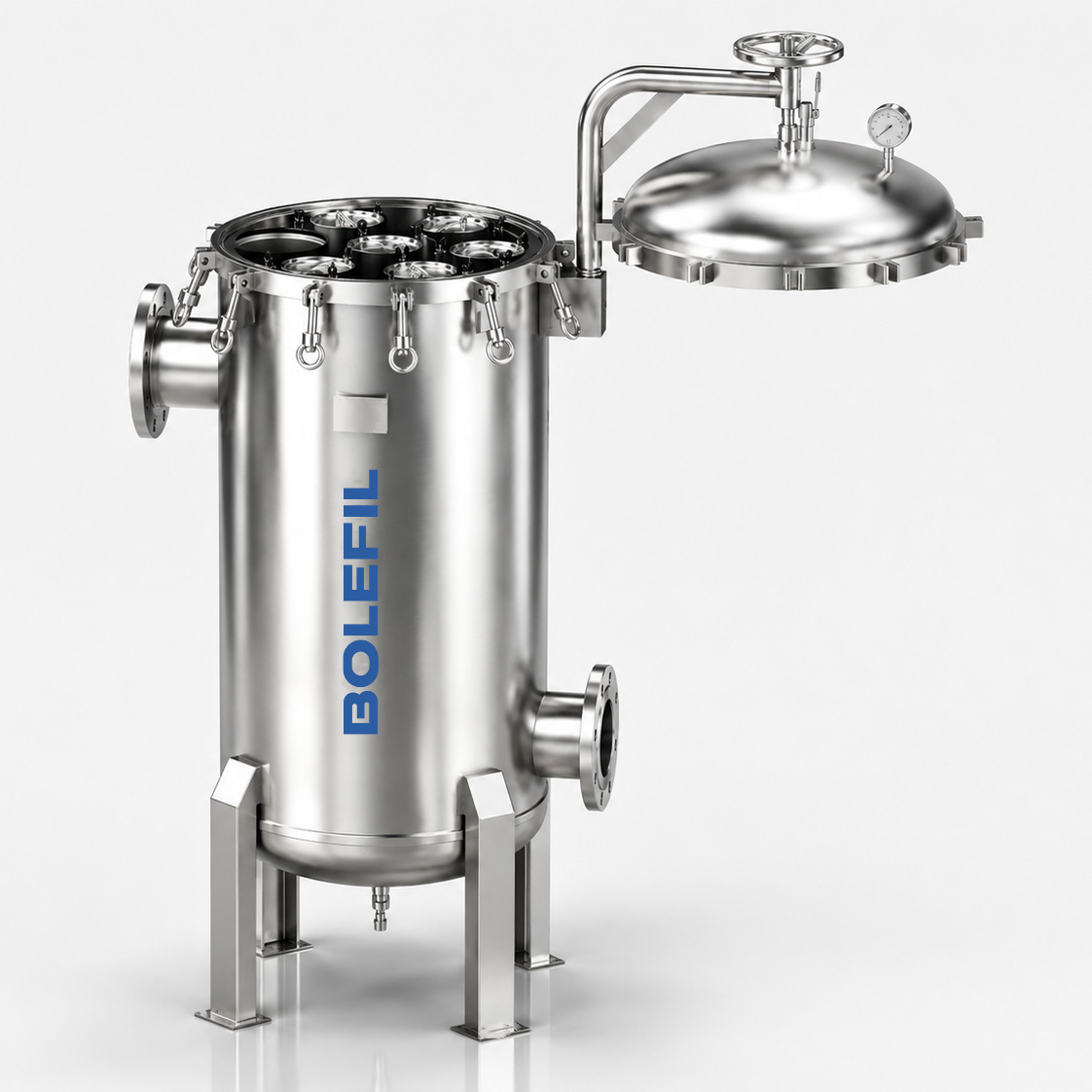

  • Swing bolt with lifting davit ideal for large flow applications
  • Flange inlet & outlet connections allow for easy piping and drain connections permit quick evacuation of housing
  • Basket included

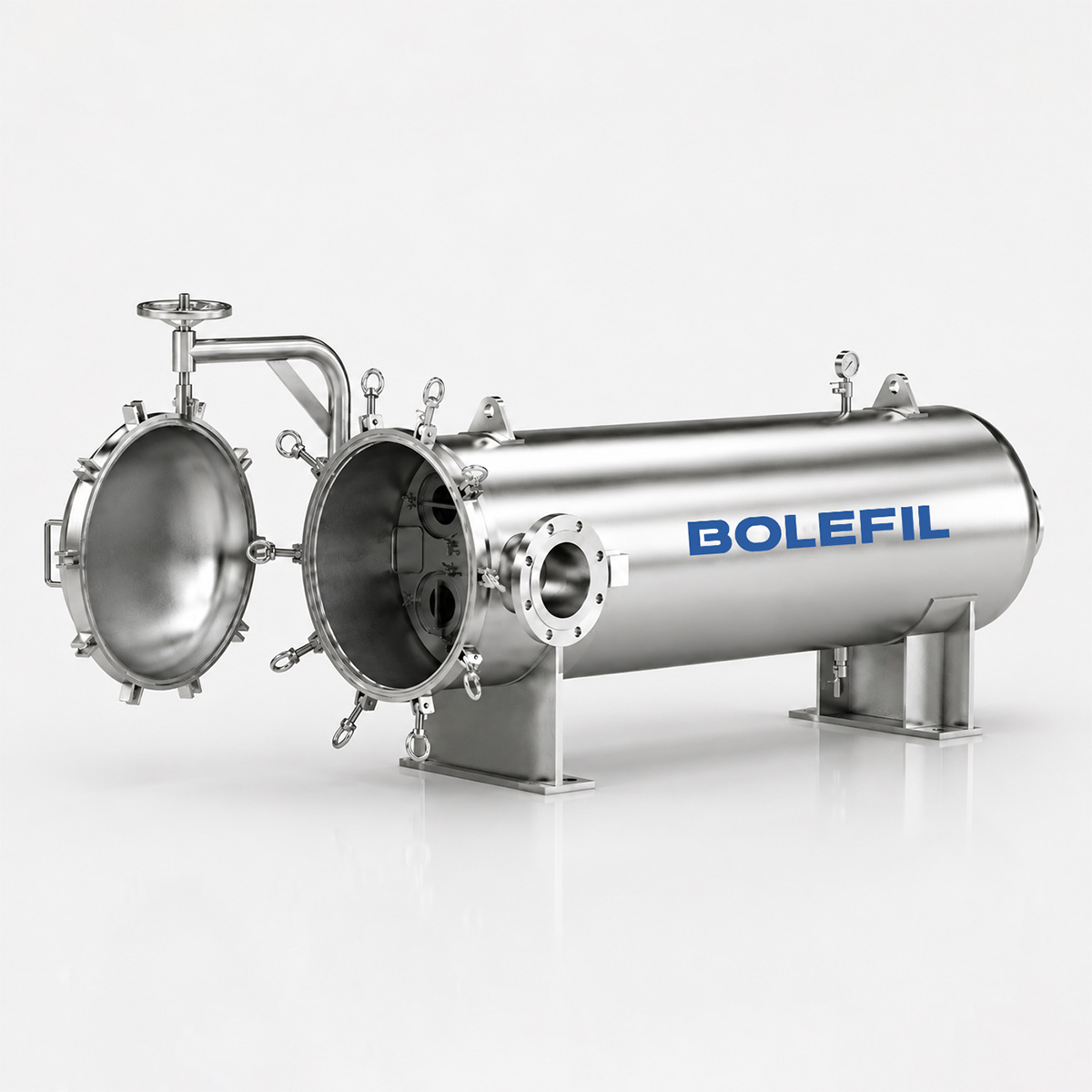

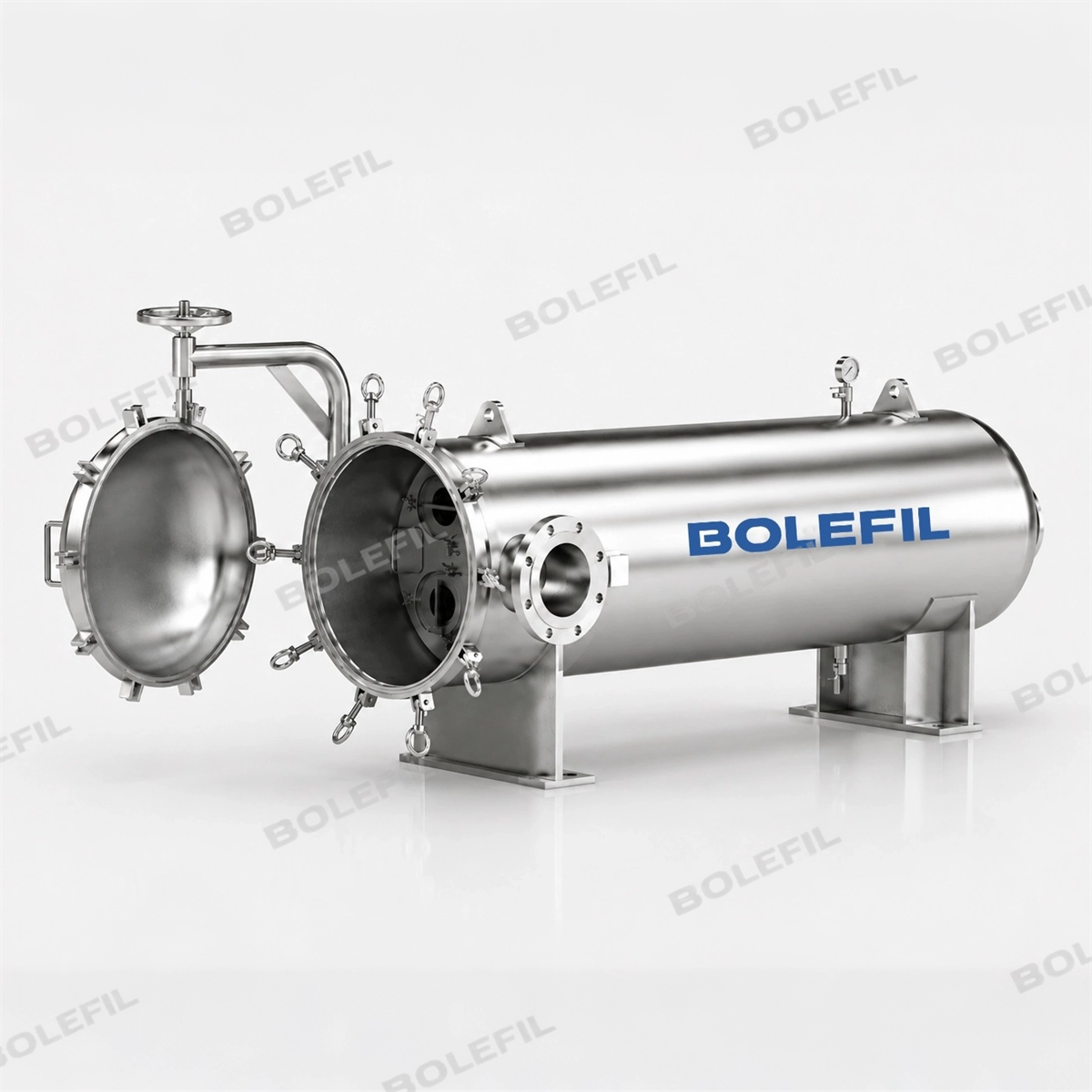

  • Optional hinged filter housings
  • Design flowrates based on element safety flow rate, liquid type and viscosity
  • Accepts both inside-out or outside-in configuration high flow cartridge filter



Applications of Classic Multi Cartridge Housing:

Prefiltration for RO

Oil & Gas

Desalination

Petrochemicals

Food & Beverage

Pulp & Paper Automotive

More Description

Head/Shell/Connections304L or 316L stainless steel
Davit Handle and Eye Nuts304L Stainless Steel
Mounting Legs304L Stainless Steel
OptionalCarbon Steel, duplex 2205, duplex 2507,
Baskets304L,or 316L stainless steel



Maximum Operating Pressures

150psi(10 bar) 250psi(16 bar)



Max Temperature

120℃ as standard Optional



Connections

Standard Inlet/OutletSORF ANSI #150 Flanges
OptionalDIN,JIS,GB
Standard Drain/Vent PortsPT
OptionalNPT,BSP



Gaskets

Standard: EPDM

Optional: Silicone, Buna N, Viton



Surface Finished

Shot Blasting/Polishing



Options:

PED certificated

ASME VIII Section

Special connection locations

Higher Pressure Ratings

Other material of construction

Other material Gasket

CMH-E-2R-20-A-V-T-B
ModelMaterialNo. of cartridgeCartridge filter SizesCartridge
Options
StandingInlet/Outlet connectionGasket materials
Classic Multi High Flow Cartridge HousingE=SS 304L      S=SS 316L C=Carbonsteel
D=Duplex2205
2R=2 PCS
3R=3 PCS
4R=4 PCS
5R=5 PCS
6R=6 PCS
7R=7PCS
14R=14 PCS
16R=16 PCS
18R=18 PCS
20R=20PCS
 20=20inch
40=40inch
60=60inch
A=Max-A
H=Ultra-H
I=MaxIron
K=Max-K
O=Others
V=Vertical
H=Horizontal
45=Set at 45
degree
T=Thread
F=Flange
B=Buna N
E=EPDM
S=Silicon
V=Viton



Notice: Due to housing has variety in design, please contact with BROTHER sales for more information
