Water, the lifeblood of our planet, is necessary to every living organism. From quenching our thirst to nourishing plants and sustaining industrial operations, water is at the core of both nature and human progress. Yet, as global populations grow and industrial activities expand, the pressure on water sources intensifies. The growing demand for clean water, combined with the escalating risks of water contamination, highlights the critical need for effective water treatment processes.
Imagine an industrial factory operating at full capacity. It requires vast quantities of water for cooling, cleaning, and processing raw materials. However, the water drawn from rivers or underground sources is untreated and could carry harmful contaminants like bacteria, heavy metals, and chemicals. If left untreated, these impurities not only threaten public health but also endanger machinery, causing costly breakdowns and decreased operational efficiency. This scenario is far from unique—it’s a reality faced by industries across the globe.
Water contamination doesn’t stop at factories. The water we drink, bathe in, and use for cooking can be tainted with pollutants, leading to long-term health risks, environmental damage, and even economic consequences. That’s why understanding the importance of water treatment in industrial operations is crucial.
Water treatment involves multiple stages, each designed to remove specific contaminants and restore water to a safe, usable state. Let’s walk through the main steps in this process.
Water treatment is not a single, straightforward process—it’s a series of steps designed to cleanse and purify water from contaminants that could threaten our health, equipment, and the environment.

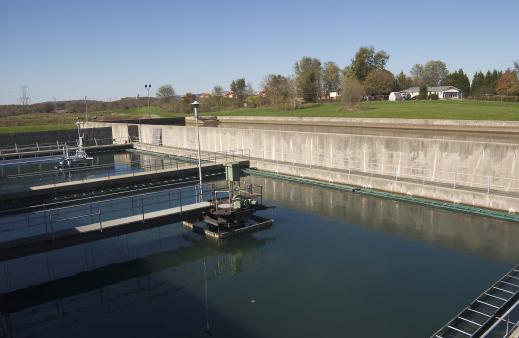

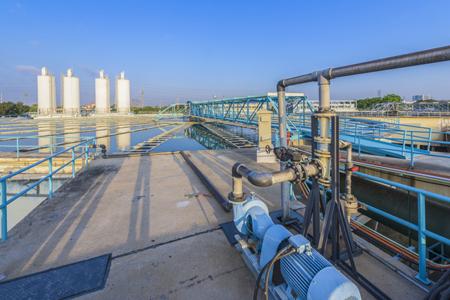

Imagine the murky, muddy waters of a river, swollen with silt, bacteria, and organic matter. This cloudiness, known as turbidity, is caused by tiny, suspended particles scattered throughout the water. These particles are too small to be filtered out by traditional methods, and they can interfere with the effectiveness of subsequent treatment processes. Coagulation comes to the rescue.
In this critical first step, chemicals like aluminum sulfate (alum) or ferric chloride are introduced into the water. These chemicals act like a magnet, neutralizing the negative charges that cause the particles to repel each other. Without this neutralization, the particles would simply bounce off one another, remaining suspended in the water. But when their charges are neutralized, the particles begin to come together in clusters known as flocs. The coagulant essentially helps them “let go” of their resistance, allowing them to clump together.
The water is then rapidly mixed to ensure the chemicals spread evenly, giving each particle the opportunity to bond with others. The result is a flurry of tiny, agglomerated particles that are now ready to be further treated in the next stage: flocculation.
Once the coagulation process has set the stage, the water enters the flocculation phase—a gentler, more deliberate process. In this stage, the water is slowly stirred, allowing the small flocs formed during coagulation to collide and merge into larger, heavier flocs.
The flocculation process isn’t about rushing the water. It’s about giving the flocs enough time to grow and become big enough to sink to the bottom of the treatment tank. The efficiency of this process relies on the mixing speed and duration, as well as the nature of the particles involved. If the flocs are too small or too light, they might not settle as easily in the next stage, so precise control is key.

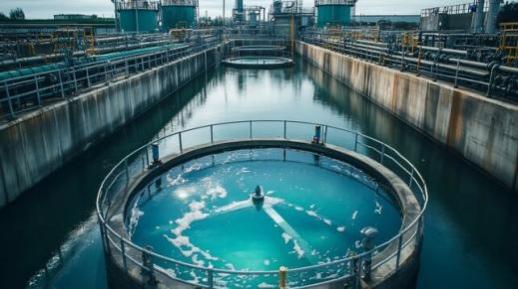

After flocculation process, the water then enters the sedimentation stage. In this process, the water is directed into the sedimentation tank, the water flow slows down, and the sedimentation of flocs and larger particles becomes possible. Since larger particles in the water will sink due to gravity, these particles are deposited in the bottom mud at the bottom of the sedimentation tank, and a relatively clear water layer is formed above the water surface.
The sedimentation process usually takes several hours to several days to ensure that the particles can be fully settled. At this stage, most of the suspended solids in the water have been removed, and the water quality becomes clearer, laying the foundation for the next step of filtration and disinfection. Sedimentation can not only remove most solid pollutants, but also greatly reduce the burden of subsequent Water purification processes and improve treatment efficiency.

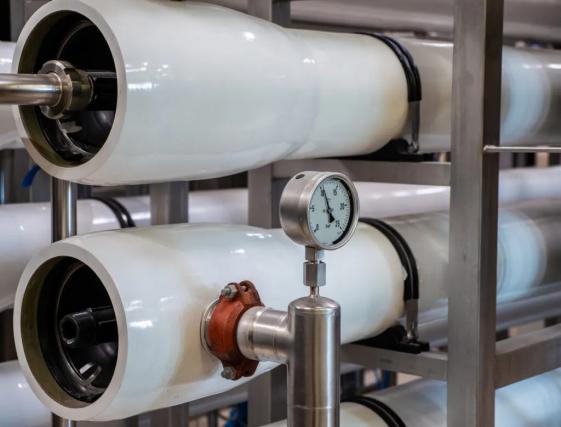

After sedimentation, water may still contain fine particles and microorganisms. During filtration stage, water passes through a series of filtering materials, such as sand, gravel, and activated carbon, which effectively remove small impurities and contaminants. Larger particles are trapped in the upper layers of the filter media, while finer particles are captured in the lower layers.
Modern water treatment plants often employ advanced water filtration systems for industrial use, including reverse osmosis (RO) and ultrafiltration (UF). Additionally, activated carbon filtration not only effectively removes particles but also absorbs harmful chemicals and unpleasant odors from the water.
Sand filters consist of multiple layers of sand and gravel, typically arranged with coarser materials at the bottom and finer sand at the top. They are commonly used in municipal water treatment systems as a basic filtration step.

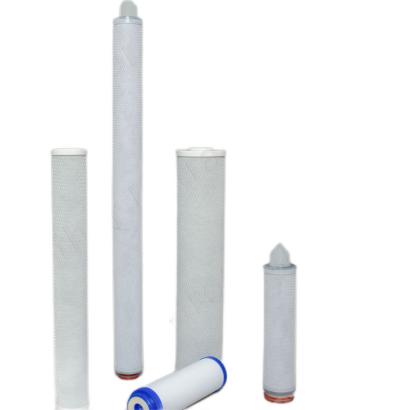

Activated carbon filters are made of granular or powdered activated carbon, which features a highly porous structure and large surface area. Our ProClean Granule 5 µm Activated Carbon Filter offers strong adsorption without causing secondary pollution. These filters are widely used for advanced treatment in industrial and municipal systems to enhance water quality.
Membrane filtration are categorized into microfiltration (MF) and ultrafiltration (UF):

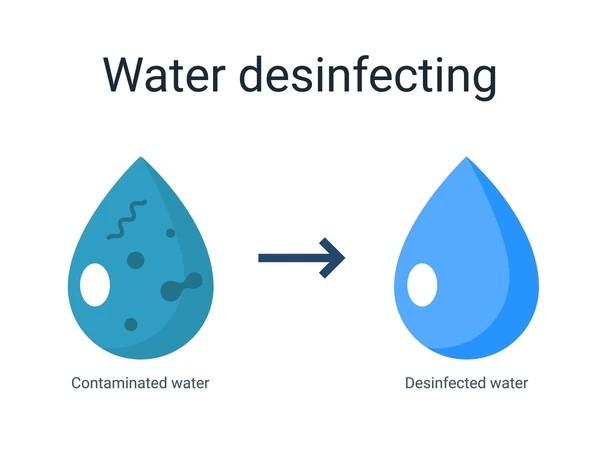

After coagulation, sedimentation, and filtration, disinfection is the final step to ensure water is safe. Even with debris removed, harmful microorganisms like bacteria, viruses, and pathogens can remain, especially in polluted water sources.
Chlorination is a long-used method that quickly kills harmful microorganisms. While effective, it can produce harmful by-products when reacting with organic matter, making careful use important.
UV disinfection uses high-energy light to damage the DNA of pathogens, rendering them harmless without chemicals or by-products. It’s highly effective, though its efficiency depends on clear water for the UV light to reach the microorganisms.
Ozone disinfection uses ozone, a potent oxidizer, to destroy pathogens by breaking down their cell walls. It’s ideal for large volumes of water and leaves no harmful residues.

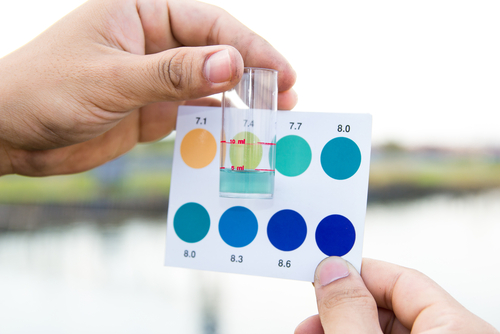

Water’s pH level determins its quality and usability. Too acidic or too alkaline, and it can wreak havoc on both water systems and industrial processes. For instance, acidic water can corrode pipes and machinery, while alkaline water may disrupt chemical reactions certain manufacturing processes.
To ensure water is just right, pH adjustment steps in. By adding lime or sodium hydroxide, the pH is raised to neutralize acidity. On the flip side, sulfuric acid is used to bring down the pH when the water is too alkaline. This careful balance ensures that water falls within an optimal pH range, typically between 6.5 and 8.5—the sweet spot for protecting equipment and enhancing industrial processes. For drinking water, maintaining the right pH is just as crucial, ensuring safety and improving the taste, which increases consumer acceptance.
In every industrial facility, water treatment ensure that water meets strict standards for safety and functionality. The entire treatment process—filtration, coagulation, disinfection, and pH adjustment—works in harmony to purify water, removing harmful contaminants and pathogens. Each stage contributes to producing high-quality water that’s safe for both consumption and industrial use.
If your facility needs top-tier water treatment solutions, Brother Filtration offers customized systems tailored to your specific needs. With our solutions, you can achieve optimal water quality and ensure smooth operations. Contact us today for a free quotation!
