In systems lacking proper filtration, pipes can accumulate deposits that impede efficiency. Dirty water can lead to scale buildup, equipment blockages, and reduced pump performance, necessitating frequent maintenance and increased expenses. Self-cleaning water filters address these concerns by autonomously cleaning based on user-defined parameters.

Five primary types of self-cleaning water filters include brush automatic self-cleaning filters, suction nozzle self-cleaning filters, scraper self-cleaning filters, pneumatic disc filters, and automatic backwash filters. Let’s delve into these filters, exploring their benefits and operational disparities.

outer-scraper-self-cleaning-filter

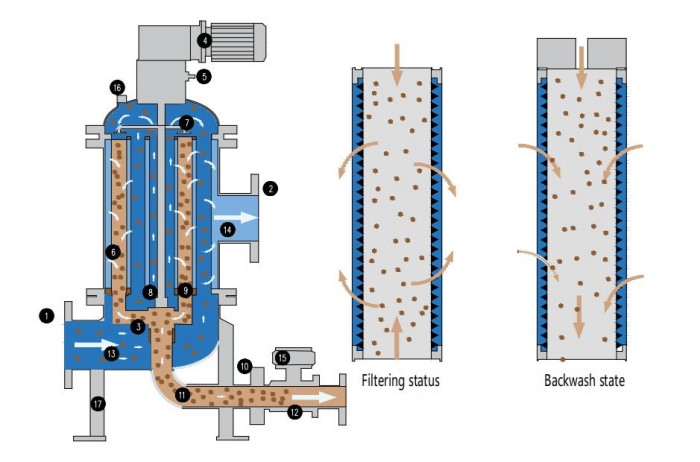

How Self Cleaning Filter Stay Clean?

Automatic self cleaning filters employs innovative mechanisms to maintain their cleanliness efficiently. These filters utilize various methods such as backwashing, where the flow of water is reversed to dislodge accumulated debris. In some systems, mechanical scrapers or brushes are employed to physically remove contaminants from the filter surface. By combining these techniques, automatic filters can continuously purge themselves of impurities, ensuring optimal performance and extending their lifespan.

Furthermore, self cleaning filters often integrate smart sensors and control systems to automate the cleaning process. These sensors monitor factors like pressure differentials and flow rates, triggering cleaning cycles only when necessary, thus conserving water and energy. Such automation not only enhances efficiency but also reduces the need for manual intervention, making self-cleaning filters an ideal choice for applications where uninterrupted operation is critical.

how selfcleaning filter stay clean

What Are the Components of an Automatic Self-Cleaning Filter?

It’s crucial to be familiar with the components of a self-cleaning filter before using it. This understanding proves useful when seeking replacement parts or addressing issues like blockages. Below, we briefly outline the parts of a self-cleaning filter.

Motor

To ensure proper functioning of the filter, there must be an energy force propelling the fluid forward, generated by the motor for filter cleaning. When selecting a motor for your self-cleaning filter, consider both the filter size and application to ensure sufficient energy is provided without interrupting operations.

Inlet and Outlet Valve

The inlet valve allows fluid entry during filtration, with varying sizes available depending on application scale. Correct inlet sizing maintains fluid flow relative to pressure. Conversely, the outlet valve permits filtered fluid to exit the filter after completion.

Control System

The control system is the brain of the automatic self-cleaning filter. It monitors various parameters such as differential pressure across the filter, flow rate, and time intervals for initiating cleaning cycles.

Drain Plug

A crucial cleaning component, the drain plug, located at the filter base, expels contaminants to maintain continuous filter operation.

Filter Element

Holding unwanted particles during filtration, the filter element comes in different sizes and materials tailored to fluid filtration quality. Regular maintenance is essential due to their active role in filter operation.

Collector of Dirt

In the dirt collector, contaminants gradually accumulate during the filtration process, ensuring uninterrupted application processes until the collector requires full disposal to maintain maximum output.

Advantages of Self Cleaning Filter

The self cleaning filter’s versatile nature and automated functionality provide a cornerstone for enhanced efficiency, reliability, and cost-effectiveness in industrial processes.

  • Low Maintenance: One of the biggest advantages of selfcleaning filters is their low maintenance requirement. This makes them ideal for remote sites as they do not require operator intervention.
  • Continuous Cleaning: Industrial self-cleaning filters have the ability to clean themselves while the system is still running. This saves users money, energy, and time.
  • Cost and Energy Savings: By eliminating the need to stop operations for manual cleaning, selfcleaning filters help reduce downtime and increase productivity. This results in cost and energy savings for the user.
  • Compact Design: Self-cleaning filters are generally designed with compactness in mind, providing flexibility during installation in various industrial settings.

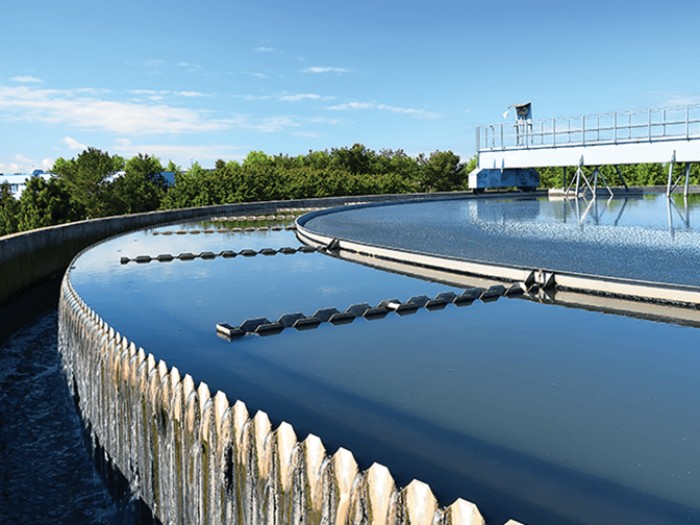

Self-cleaning in various industrial settings

What are Types of Self Cleaning Water Filter and How They Work?

Self-cleaning filters come in various types, each employing different mechanisms to remove accumulated debris and maintain filtration efficiency. Here are some common types and how they work:

Brush Automatic Self Cleaning Filter

Brush automatic filters employ rotating brushes to remove debris from the filter element’s surface. As water flows through the filter, particles are captured, gradually forming a layer of sediment. Periodically, the rotating brushes spring into action, dislodging the accumulated debris and allowing it to be flushed out of the system. These filters are particularly effective for removing larger particles and are commonly used in applications where sedimentation is a concern.

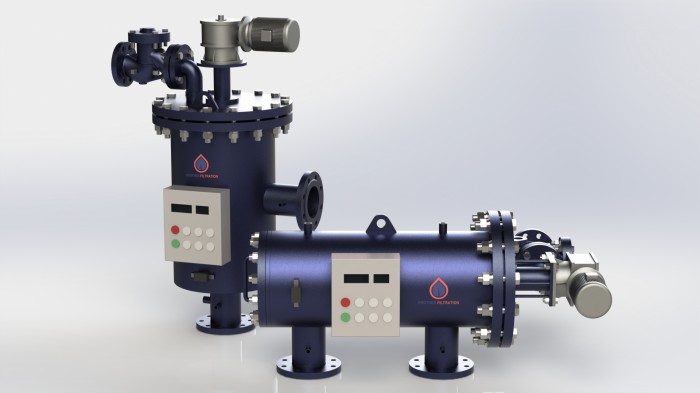

Suction Nozzle Self Cleaning Filter

Suction nozzle self cleaning filters utilize suction nozzles to create a vacuum, which dislodges and removes debris from the filter element. When the system detects a pressure drop across the filter, indicating a potential clog, the suction nozzles activate, pulling debris away from the filter surface. The dislodged particles are then flushed out of the system, ensuring continuous filtration. These filters are ideal for applications with medium-sized particles and are prevalent in industrial settings. Contact us today for pricing and details on our Brush Automatic Filter and Suction Nozzle Self-Cleaning Filter!

Suction Nozzle Self Cleaning Filte

Scraper Self Cleaning Filter

Scraper selfcleaning filters feature a rotating scraper mechanism designed to remove debris from the filter element. As water passes through the filter, particles are trapped on the filter surface, gradually forming a layer of sediment. The rotating scraper periodically traverses the filter element, scraping off the accumulated debris and directing it towards a discharge port for removal. These filters are versatile, capable of removing both large and small particles, making them a popular choice for water treatment plants and industrial processes.

Pneumatic Disc Filter

Pneumatic disc filters utilize a combination of air and water pressure to clean the filter surface effectively. The filter element consists of a series of discs stacked on a central shaft. When cleaning is required, the discs are separated, creating gaps through which water and air are injected. The sudden release of pressure dislodges the debris from the filter surface, and the particles are carried away by the water flow. These filters are highly efficient and find applications in processes requiring fine filtration, such as wastewater treatment and irrigation systems.

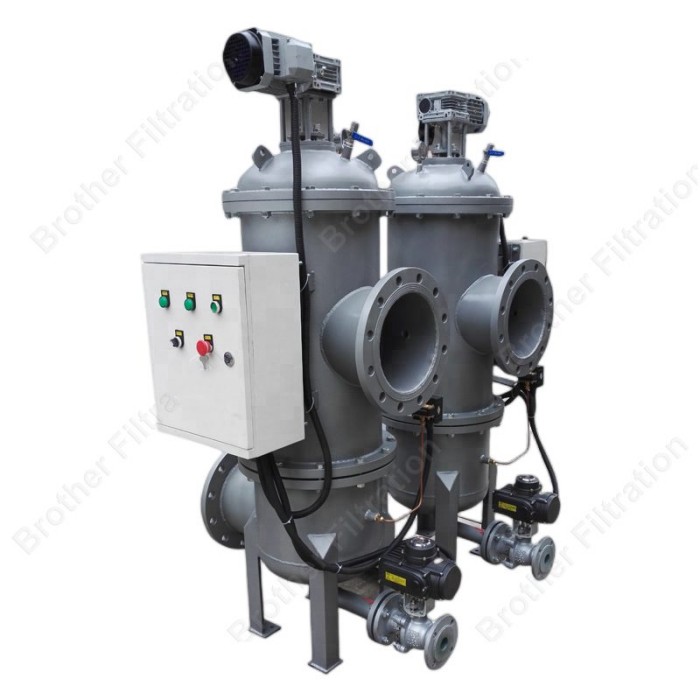

Automatic Backwash Filter

Automatic backwash filters employ a backwashing mechanism to remove debris from the filter element. When the filter becomes clogged, the flow of water is reversed, and a backwash cycle is initiated. During the backwash cycle, water flows in the opposite direction, dislodging and flushing out the accumulated debris. Once the filter is clean, normal filtration resumes automatically. These filters are versatile and can be used in various applications, including residential, commercial, and industrial settings.

Automatic Backwash Filter

Applications of Self Cleaning Water Filters

Self cleaning water filter find applications across various industries where maintaining water quality is crucial. Here are some common applications for each type:

1. Brush Automatic SelfCleaning Water Filter

The Brush Automatic Self Cleaning Water Filter is a crucial component in various industrial settings, tasked with eliminating suspended solids from liquids like water.

  • Used in industrial applications where suspended solids need to be removed from water or other liquids.
  • Commonly utilized in wastewater treatment plants, food and beverage processing, and irrigation systems.

2. Suction Nozzle SelfCleaning Filter

With its innovative Suction Nozzle Self Cleaning Filter, maintaining water quality becomes effortless.

  • Ideal for filtering water in agricultural irrigation systems to prevent clogging from debris and particles.
  • Applied in wastewater treatment facilities to filter out solids and prevent blockages in pipes and pumps.

3. Scraper SelfCleaning Water Filter

The Scraper Self Cleaning Water Filter can efficiently remove debris and minimize downtime for maintenance.

  • Commonly employed in applications with high solid content or viscous liquids that can clog traditional filters.
  • Used in industries such as mining, oil and gas, and chemical processing.

4. Pneumatic Disc Filter

Utilizing advanced technology, the Pneumatic Disc Filter delivers superior filtration performance, making it indispensable in demanding applications.

  • Often found in municipal water treatment plants to remove fine particles and impurities from drinking water.
  • Used in applications where a continuous flow of clean water is required, such as in pharmaceutical manufacturing.

5. Automatic Backwash Filter

Designed for versatility, the Automatic Backwash Filter excels in various industrial applications, ensuring reliable filtration performance.

  • Suitable for applications with varying levels of contamination that require frequent cleaning and maintenance.
  • Employed in cooling tower systems to filter circulating water and prevent scaling, corrosion, and microbial growth, thereby maintaining cooling efficiency.

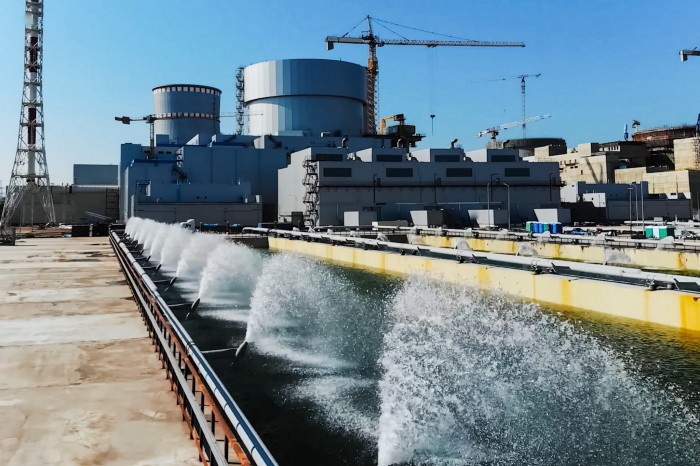

self cleaning filter used in cooling water system

What to Consider When Buying Self-Cleaning Filters?

This guide aims to assist you in selecting the right self-cleaning filter for your application, ensuring long-term reliability. With numerous options available, choosing the perfect fit can be challenging. Here are key considerations to help streamline your decision-making process.

Type of Contaminant

Identifying the type of contaminant present in your fluid is paramount. Contaminants vary in size and require specific filters for effective purification. For instance, fluids containing micro contaminants necessitate the use of micro self-cleaning filters, while larger quantities of pollutants may require larger self-cleaning filters.

Functions of the Filter

Consider the characteristics of the fluid, such as its strain, temperature, and pressure, as well as the filter’s workload. By maintaining the right strain and understanding the flow of the liquid, you can select the most suitable self-cleaning filter for your application.

Labor and Cost

Labor costs and expenses associated with installing and maintaining the self-cleaning filter are crucial factors to consider, particularly concerning automated cleaning filters. Moreover, the impact of downtime on filter operation should not be overlooked, as minimizing downtime is essential for optimal application performance.

Disposal of Contaminant

Consideration must be given to how contaminants will be disposed of to ensure environmental safety. Some chemicals allow for straightforward disposal, while others pose environmental risks, especially in industrial settings. Proper disposal methods should be explored to mitigate environmental impacts, taking into account associated costs.

Filtration Efficiency

Understanding the required level of filtration is essential when selecting a self-cleaning filter. Different filters offer varying levels of efficiency, and the filter chosen must effectively fulfill the filtration purpose, ensuring that the resulting fluid is free from contaminants.

Conclusion

The efficiency and longevity of industrial systems heavily rely on effective filtration methods. Different types of self-cleaning water filters offer distinct advantages, ranging from brush automatic self-cleaning filters to pneumatic disc filters.

If you find yourself needing to do more maintenance on your filtration system or you’re considering an upgrade, think about investing in an automatic self-cleaning filtration system. Contact us to learn more and get a free quotation.
