How to pick CTO & GAC?

Before we talk about Activated Carbon in this blog, it is better to know, that the Carbon Filter ( CTO & GAC ) is a series of sediment filter and able to treat water perfectly.

Activated carbon can eliminate chlorine in the water. The process can be regarded as Cl2. The reaction between water and carbon initiates the formation of Cl-, H+ and CO2.

By having a direct chemical reaction with the carbon, oxidizing elements in water are eliminated. Instead of adhering to the carbon particle in this instance, chlorine chemically combines with the carbon to create carbon dioxide.

As a result, chlorine removal via carbon filters is limitless. Unlike with organic elimination, chlorine does not become saturated in the carbon bed.

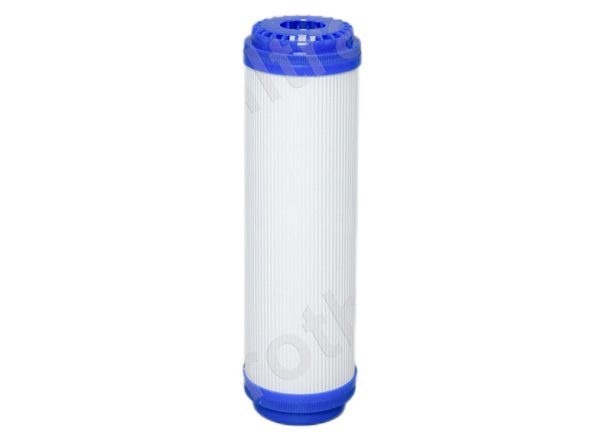

What is a GAC filter?

Granule-activated carbon is made from raw organic materials, such as coconut shells or coal, which are high in carbon.

The activated carbon removes certain chemicals from the water passing through a GAC filter by trapping the chemical in the GAC. However, other chemicals, like iron and nitrate, are not attracted to the carbon and therefore are not effectively removed.

Granule-activated carbon filters are made using carbon that has been ground up and is held together loosely inside a cartridge or other container. And the looser nature of GAC filters means that they provide a much higher flow rate, which essentially means that you can purify much more water in less time with less effectively.

Manufacturing Methods of GAC Water Filter Cartridge

The granular activated carbon filter cartridge is manufactured by placing activated carbon particles into a specialized plastic housing.

Welding equipment is then used to attach end caps to both ends of the housing securely. Non-woven filter pieces are inserted at each housing end to prevent carbon powder and black water during usage.

The design allows for customization of the end caps to accommodate various types of connection ports based on customer requirements. These filter cartridges exhibit excellent adsorption capabilities, effectively eliminating residual chlorine, odors, color, and organic impurities from water.

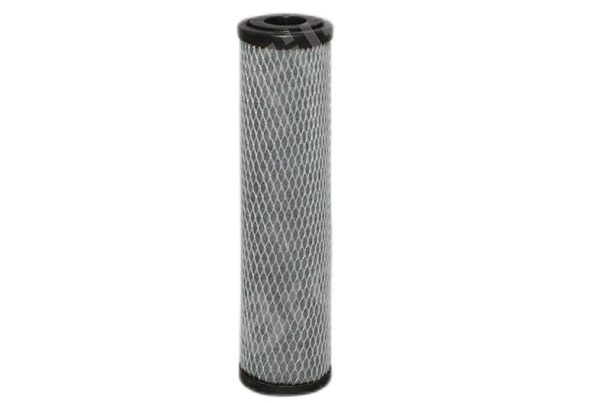

What is a CTO filter?

The carbon block filter compresses loose carbon blocks together to form a filter. In the carbon block filter, one pound of compressed activated carbon (the amount in a standard 10-inch filter cartridge) has a surface area equivalent to 160 acres of farm, making it one of the most absorbent materials known to man.

There are a variety of raw materials used to make carbon block filters. Some of the most common sources of carbon are bituminous coal, wood, and nutshell. Carbon filters remove contaminants through adsorption.

Adsorption means that contaminants are attracted to the surface of the activated carbon and held to it, much the same way a magnet attracts and holds iron filings.

Manufacturing Methods of CTO Water Filter Cartridge

The CTO water filter cartridge utilizes coal-activated carbon and coconut shell-activated carbon with high adsorption capabilities as its filter material. These materials undergo sintering and compression using food-grade adhesive, resulting in a durable cartridge.

To prevent the release of carbon powder, a layer of non-woven fabric with filtering capabilities is wrapped both inside and outside of the filter cartridge. This ensures that the carbon core remains intact. The carbon core is then securely installed into the filter cartridge, providing effective sealing performance.

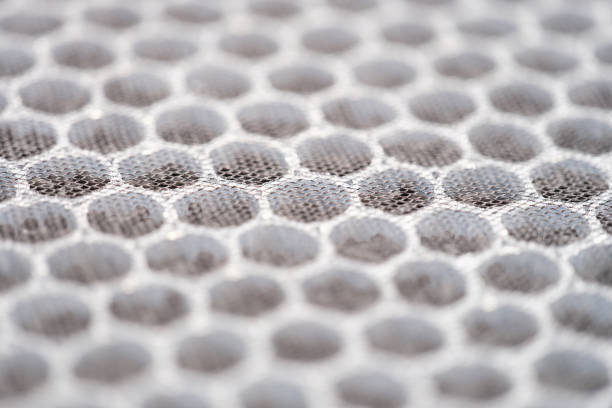

How do activated carbon filters work?

Activated carbon filters work by using a process called adsorption to remove impurities from water or air. Here is how they work:

Adsorption: Activated carbon has a large surface area with pores that can trap and hold contaminants. When water or air passes through the filter, the impurities in the water or air get trapped on the surface of the activated carbon.

Chemical reactions: Some impurities are removed through chemical reactions with the activated carbon material. The contaminants can bond to the surface of the carbon through various mechanisms like van der Waals forces, ion exchange, and chemisorption.

Pore structure: The porous structure of activated carbon filters increases their surface area, providing more opportunities for contaminants to be captured and removed from the water or air.

Regeneration: Over time, the pores of the activated carbon can become saturated with contaminants. The filter can be regenerated by either replacing the activated carbon media or by certain methods such as washing and heating the filter to release trapped contaminants.

Granule Activated Carbon Filter Element vs Activated Carbon Block Filter Element

Granule Activated Carbon (GAC) filter elements and Activated Carbon Block (CTO ) filter elements are two common types of water filtration media used in various applications, including residential, commercial, and industrial settings.

While both utilize activated carbon as the primary filtering agent, they differ in their physical structure and filtering capabilities.

Structure

The carbon used to make granule-activated carbon filters has been mashed up and is loosely held together inside a cartridge or another container. Instead, activated carbon is ground into a fine powder to create carbon block filters. After combining this powder with a food-safe binder, the mixture is heated up and squeezed to form a solid block.

Filtration Accuracy

Although both the CTO and GAC filters use ground carbon, the CTO filter element’s carbon is typically processed into a considerably finer powder. In contrast to the particles used in GAC filters, the carbon particles in a block filter are typically five to twenty times smaller.

Dirty-holding Capacity

Generally, CTO filters can filter our more contaminants than GAC filters, due to their more compact structures.

Flow Rate

The looser nature of GAC filters means that they provide a much higher flow rate, which essentially means that you can purify much more water in less time.

CTO filter is full of fine holes, so its ability to decolourization is excellent, but it easily leads to a plug problem. However, strong adsorption of GAC can perform perfectly in the same situation.

Filter Costs

Carbon block filters are more expensive due to their time-consuming manufacturing processes. However, they offer near-perfect filtration efficiency and are considered the best choice for this purpose. Granulated carbon filters, in contrast, have lower manufacturing costs, which makes them a more affordable option.

Wide Range Of Applications

Activated carbon filtration systems have long been favoured for their ability to effectively filter out residual chlorine, unpleasant odours, and tastes. They have been integral components in various water purification setups, operating at different stages.

When faced with the decision between the two, consider your priorities: opt for the high-flow rate of a granular carbon filter or the additional purification effects offered by a CTO filter cartridge.

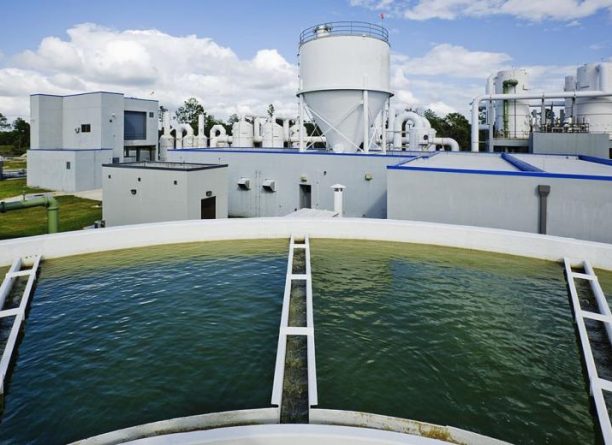

What Do They Remove from Water?

Activated carbon filters are effective at removing and reducing various contaminants from water. Some of the common impurities that active carbon filters can remove include:

• Chlorine and chemicals: Activated carbon filters can effectively remove chlorine and many chemical compounds from water, improving its taste and odour.
• Volatile organic compounds (VOCs): These are common contaminants found in water sources. Activated carbon filters can absorb and reduce VOCs, including solvents, herbicides, and pesticides.
• Sediments and particles: Activated carbon filters can trap and remove sediments, such as rust, dirt, and sand, from water.
• Organic compounds: Activated carbon filters can reduce the concentration of certain organic compounds, such as benzene, toluene, and xylene, in water.

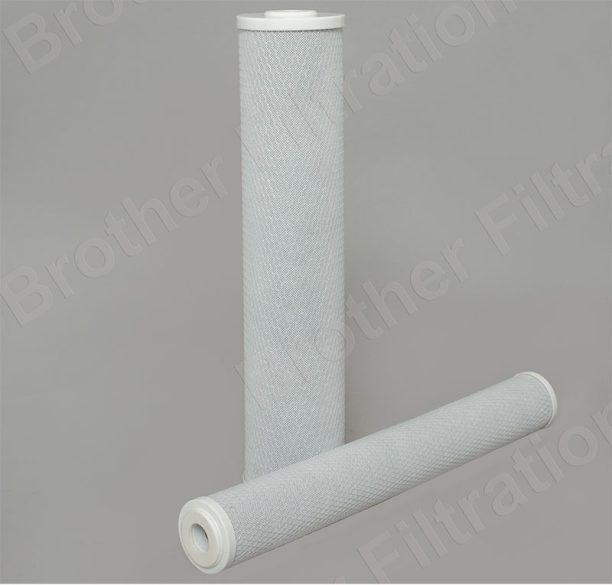

How to pick the best one for your CTO or GAC?

When compared to a GAC at the same flow rate, the CTO’s smaller particle size and uniform pore structure offer a higher level of efficiency in a smaller housing. Because of this, GAC is frequently employed as a technique of treatment for aesthetic impurities (removal of taste, odor and color).

CTO goes beyond the aesthetic improvement of water by reducing particulates, microscopic cysts, lead, volatile organic chemicals (VOCs), and other contaminants.

When selecting between a carbon block filter cartridge and a granule-activated carbon filter cartridge, consider factors such as filtration efficiency, water flow rate, contaminant removal, filter lifespan, and cost.

Carbon block filters offer higher filtration efficiency and can remove a wider range of impurities like chlorine and VOCs. However, they have a lower water flow rate and are generally more expensive.

Granule-activated carbon filters have a higher water flow rate and are more cost-effective, but may be less effective at removing certain impurities. Assess your specific needs and priorities to make an informed decision about which type of carbon filter cartridge is the best choice for you.

Conclusion

CTO and GAC filters are both effective Activated Carbon filters, which have great filtration performance. They have their own strengths in different aspects.

By comparing their different characteristics, it is wise to choose the right activated carbon cartridge for yourself by combining your real usage needs. Sometimes, a combination of CTO and GAC filter cartridges can achieve the best results.

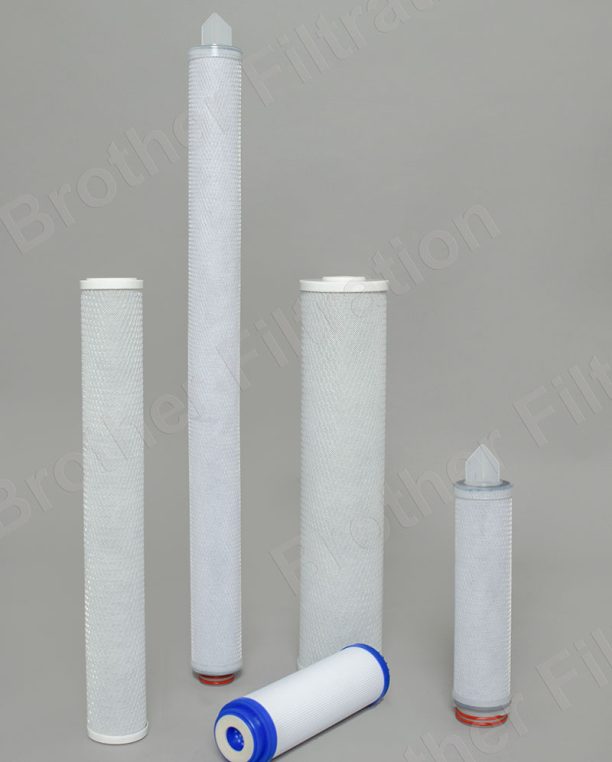

Brother Filtration has been deeply involved in the filtration industry, manufactures all kinds of filter products and offers various filtration solutions. We also produce high-quality CTO and GAC filter cartridges.

If you still don’t know how to choose an Activated Carbon filter, please feel free to contact [email protected], and our technicians can help you solve your problems.
