To ensure the production of high-quality pharmaceuticals that meet strict quality standards, controlled operations must be implemented. Filters help maintain particle and bioburden control or liquid sterilization, depending on the specific safety requirements of the customer or operation.
Whether you need sterile filtration, pre-filtration, or filling for a variety of products such as pharmaceuticals, fine chemicals, or fermentation broths, our pharmaceutical filtration and biotech filtration products are specifically designed to help you create products that enhance and save lives.
In this blog post, we will introduce the types of industrial filtration involved in the biopharmaceutical industry, the important role they play, and how to choose the right type of industrial filtration.
Filters are crucial in the pharmaceutical industry due to the numerous applications they serve. One of the primary reasons is the removal of impurities and particles from liquids and gases used in drug production, ensuring the purity and quality of the final product. Filters assist in eliminating solid impurities and undissolved powders at different stages of the manufacturing process. They are also employed in processes like sterile filtration and protein purification.
Moreover, filters play a vital role in preventing the contamination of pharmaceutical products by microorganisms, guaranteeing the safety of patients who will use them. By removing unwanted constituents, filters contribute to the overall efficacy and reliability of pharmaceuticals.
Additionally, advancements in filtration technology enable more efficient filtering processes and the implementation of better filters within the pharmaceutical industry. The appropriate selection and use of filters are necessary to meet specific requirements, such as the removal of particular-sized particles or the purification of different types of fluids.
To meet stringent regulatory requirements and ensure the safety of the end product, the pharmaceutical industry relies heavily on filtration systems throughout nearly every stage of drug development and manufacturing. Here, we’ll look at three of the most common types of filtration used in pharmaceutical processing: membrane, depth, and sterile.
Membrane filtration is a popular method for separating and purifying substances in the pharmaceutical industry. Compared to conventional depth filtration methods, membrane filtration offers higher flow rates, improved efficiency, and the ability to capture molecules based on specific properties such as size or charge.
Membrane filters consist of a variety of materials, including polyethersulfone (PES), polytetrafluoroethylene (PTFE), and mixed cellulose esters (MCE). The pore sizes in these filters can range from around 0.03 to 10 microns depending on the desired level of filtration and the application at hand.
Depth filtration is a widely used method of separating mixtures based on particle size. This method employs a porous medium, such as cellulose or diatomaceous earth, as a filter bed through which the substance to be filtered passes. The larger particles in the mixture become trapped within the filter bed, while the smaller ones pass through.
Depth filtration is often used in the early stages of processing to remove larger particles and impurities before passing the substance through a membrane filter. This pre-filtration step helps extend the life of the more expensive membrane filters by removing larger particles that could otherwise clog and damage them.

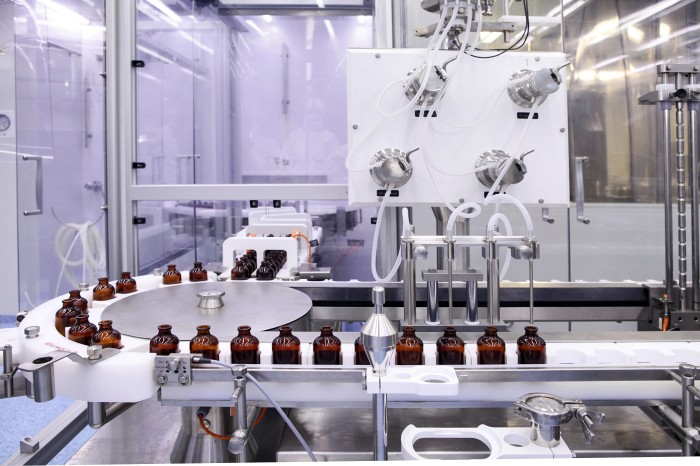

Sterile filtration is a critical part of drug development and manufacturing. This filtration method uses a membrane filter with a pore size of 0.2 microns or less to remove any microorganisms present in the solution. The sterile filtration process typically takes place as the final step in manufacturing, ensuring that no bacteria, viruses, or fungi contaminate the final drug product.
Most pharmaceutical manufacturers use hydrophilic, low-protein binding membranes for sterile filtration. Polyethersulfone (PES) and polyvinylidene fluoride (PVDF) are commonly used for this application. Sterile filters must pass several rigorous tests to ensure they meet regulatory requirements for quality, purity, and sterility.

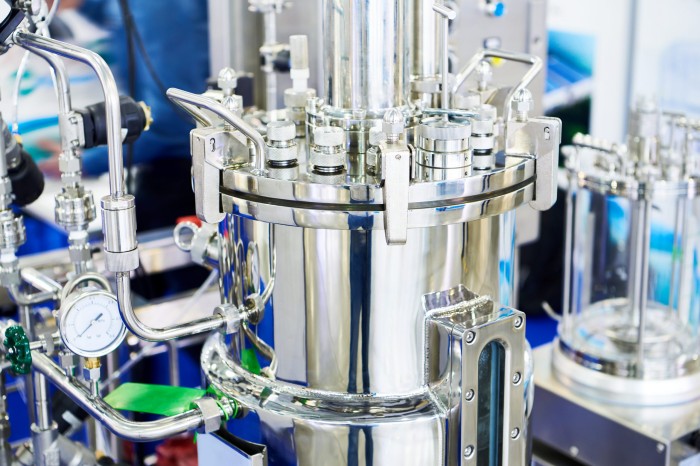

Filtration systems are also critical in the production of biologics, which are complex molecules obtained from living organisms like proteins or antibodies. These molecules are highly sensitive and susceptible to contamination and damage during the manufacturing process, making efficient filtration systems vital to their safety and effectiveness.
The production of biologics typically involves multiple stages of filtration, each requiring a specific type of filter to remove impurities of varying sizes. For instance, the initial stage of filtration might employ a depth filter to get rid of any bigger pollutants, and the subsequent stages might combine membrane and chromatographic filters to get rid of smaller impurities.
Efficient filtration in the production of biologics is essential because these molecules are commonly used to treat life-threatening diseases. Any impurities present in the final product may compromise the safety and effectiveness of the biologics, which could negatively affect patients’ outcomes.
Liquid filtration is widely used in various stages of the pharmaceutical process to ensure the quality and purity of pharmaceutical products. Here are some key areas where liquid filtration is commonly employed in the pharmaceutical industry:
Liquid filtration is used to remove impurities and contaminants from raw materials such as active pharmaceutical ingredients (APIs), excipients, and solvents before they are used in the manufacturing process. This helps to ensure that the starting materials are clean and free from any unwanted substances that could impact the quality and safety of the final product.
Liquid filtration is essential for clarifying and sterilizing liquids that are used in the production of pharmaceuticals. This includes the removal of particulates, microorganisms, and endotoxins. Membrane filtration techniques, such as depth filtration and membrane filters, are commonly used in this step to achieve the desired level of particle removal and microbial reduction.
Before the final pharmaceutical product is packaged and released, liquid filtration is often applied to remove any remaining impurities and ensure product purity. This can involve filtering the product through specific filter media to achieve the required level of purity and clarity.
Pharmaceutical manufacturers rely on high-quality purified water in their processes. Liquid filtration plays a crucial role in purifying water by removing particles, bacteria, and other contaminants that could compromise water quality. Multiple filtration techniques, such as cartridge filters and membrane filtration, are used to maintain the required standards of water purity.

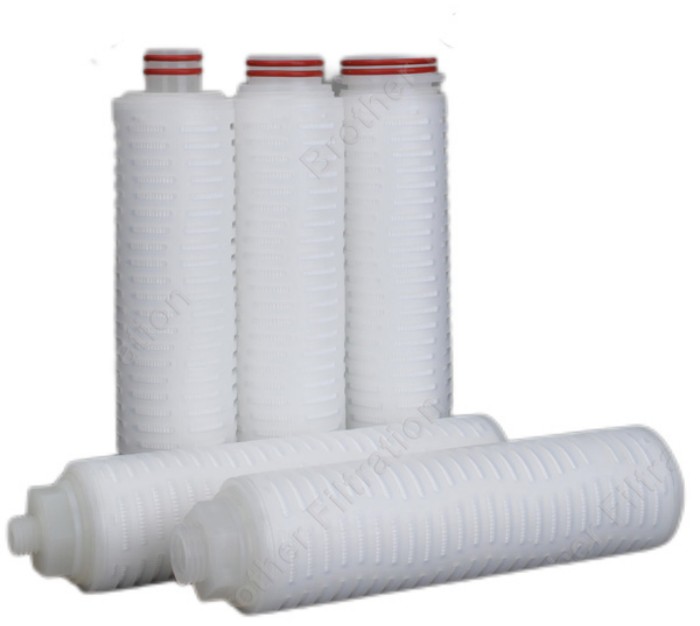

Selecting the right filter for pharmaceutical processing is an important step in ensuring the quality and safety of pharmaceutical products. There are several critical factors to consider when selecting a filter, including:

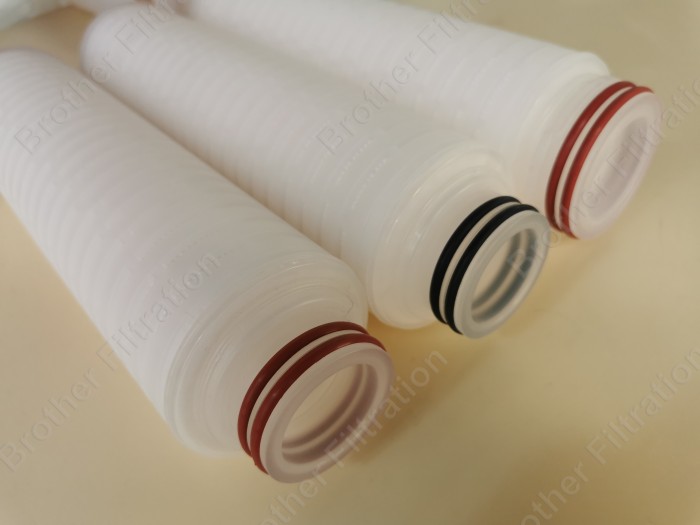

Micron rating: The micron rating of the filter is a measure of its ability to remove particles of a specific size. The filter must be able to remove impurities of the appropriate size to meet regulatory requirements and ensure the high quality of the final product.
Filter efficiency: The filter’s efficiency in removing impurities is essential. Absolute filters offer higher removal efficiency compared to nominal filters, but this comes at a higher cost.
Flow rate: The flow rate is the speed at which liquid can move through the filter. It is important to select a filter that can accommodate the required flow rate without becoming clogged.
Compatibility: The filter material must be compatible with the liquid being filtered to prevent contamination and the degradation of the filter.
Filtration method: Different filtration methods, such as depth filtration, membrane filtration, or chromatography, are used depending on the specific application, such as clarification, sterilization, or chromatography.
Regulatory requirements: The filter must be compatible with regulatory standards and requirements. This may involve using filters that meet certain certifications or are constructed from specific materials.
Process requirements: Specific process requirements related to the filtration of pharmaceutical products may include factors such as temperature, pressure, flow rate, and chemical compatibility. Filters must be selected that can meet these requirements.
Filtration is an integral part of nearly every stage of pharmaceutical processing, from research and development to manufacturing as it ensures product quality, maintains sterility, and promotes patient safety.
Regardless of what industry you’re in, Brother Filtration has the products you need. Contact us right now for a free consultation or quote by sending an email to [email protected] or filling out the form on our contact page.
