Filtration stands as a cornerstone in various industries, playing a pivotal role in ensuring the purity and efficiency of processes. From water treatment plants to the heart of pharmaceutical manufacturing, effective filtration safeguards equipment, enhances product quality, and contributes significantly to environmental sustainability.
In the intricate world of industrial processes and environmental management, Automatic Self Cleaning Filters have emerged as a transformative solution. Automatic Self Cleaning Filters, namely industrial self cleaning filters, self cleaning strainers, and self cleaning filters, designed with ingenuity, autonomously rid themselves of impurities, ensuring optimal functionality. This blog will explain what you need to know about automatic self cleaning filters.

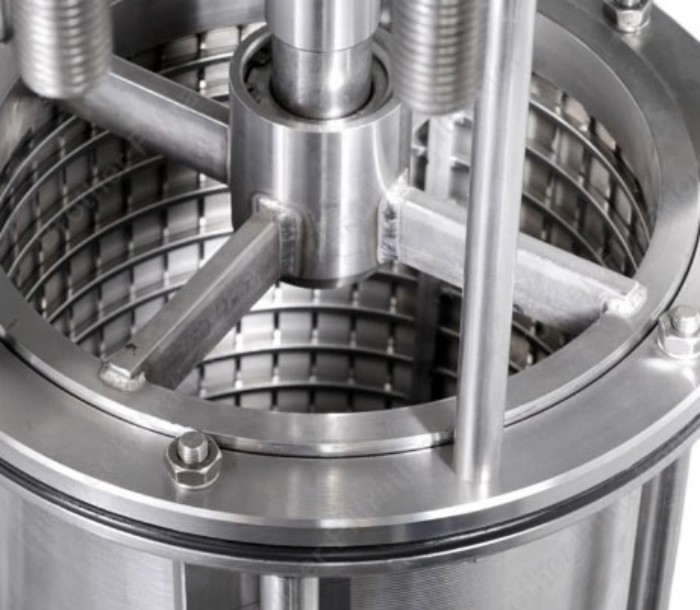

An automatic self cleaning filter is a type of filtration system that is designed to remove unwanted particles, debris, or contaminants from a fluid or gas stream. Unlike traditional filters that require manual cleaning or replacement when clogged, automatic self cleaning filters are equipped with a mechanism that allows them to clean themselves without human intervention.
These filters typically consist of a housing that contains the filter element and a self cleaning mechanism. The self cleaning mechanism may vary depending on the specific design and application, but the common principle is to remove the accumulated debris or particles from the filter element and discharge it from the system.
There are different types of self cleaning mechanisms, such as backwashing, suction scanning, and rotating, among others. These mechanisms use various techniques like reverse flow, suction, or mechanical action to dislodge and remove the trapped particles. The removed debris is then discharged through a separate outlet, preventing clogging and maintaining the efficiency of the filtration process.

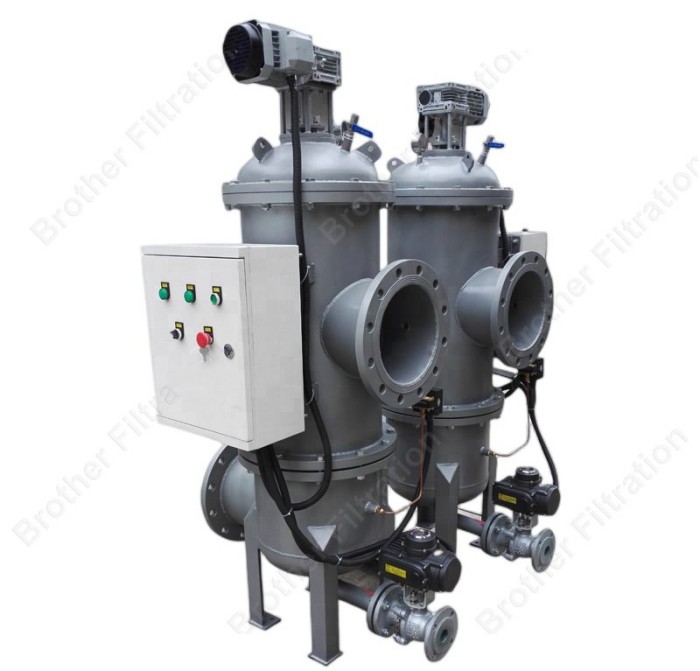

Automatic backwash refers to a process in which a filter cleans itself by reversing the flow of fluid through the system. It is a common self cleaning method used in automatic filtration systems to remove accumulated particles, dirt, or debris from the filter element.
During the automatic backwash process, the flow of fluid is temporarily reversed, causing the trapped particles to dislodge and be flushed out of the system. This reverse flow is typically achieved through the use of valves or a dedicated backwashing pump.
The frequency and duration of the backwashing process can be pre-determined based on the specific requirements of the application. It can be triggered by various factors such as pressure differentials, timer settings, or by monitoring the differential pressure across the filter.
Read The Ultimate Backwash Filters Guide to learn all about Automatic Backwash Filters.

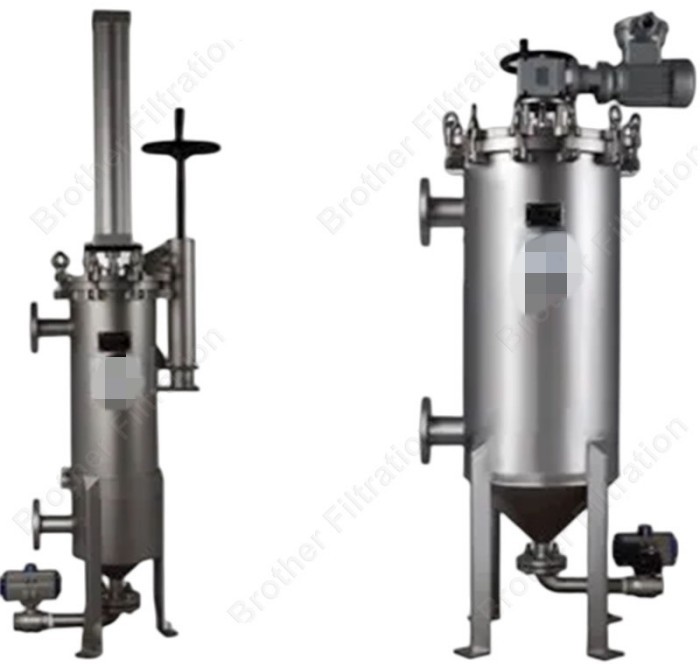

An self cleaning filter works by continuously removing debris and contaminants from a fluid or gas stream without the need for manual intervention. The filter system is designed with a self cleaning mechanism that allows it to maintain its efficiency and reduce the frequency of maintenance.
The working principle of an self cleaning strainer typically involves the following steps:
Filtration: Fluid or gas flows through the filter housing, entering the filter element where particles and contaminants are trapped. The filter element can be made of various materials, such as mesh screens, cartridges, or porous media.
Accumulation: Over time, the trapped particles and debris accumulate on the filter element, causing a decrease in flow rate and an increase in pressure drop across the system.
Cleaning initiation: When the pressure drop or other predetermined parameters reach a certain threshold, the self cleaning mechanism is triggered. This can be done automatically based on time intervals, differential pressure, or other sensors.
Self-cleaning process: Depending on the specific design, the self cleaning mechanism may involve techniques such as backwashing, suction scanning, or rotating mechanisms. These mechanisms use various means to dislodge and remove the accumulated debris from the filter element.
Debris discharge: Once dislodged, the debris or particles are flushed out of the system through a separate outlet or drain, preventing clogging and maintaining the effectiveness of the filtration process.\
Return to normal operation: After the self cleaning process is completed, the filter system returns to its normal operation, allowing the fluid or gas to continue flowing through the filter element.
The self cleaning strainer is a technological innovation that helps to automate the process of filter maintenance. It offers several advantages over traditional filters, but also has some limitations. Here are the pros and cons of self cleaning filters:
Efficiency: Self cleaning strainer are designed to maintain a high level of filtration efficiency for an extended period. This ensures a continuous supply of clean water or air without frequent filter replacements.
Cost-effective: Whileself cleaning strainers may have a higher initial cost, they can save money in the long run by reducing maintenance and replacement expenses. It eliminates the need for manual cleaning or filter changes, saving both time and money.
Time-saving: Self cleaning filters automate the cleaning process, eliminating the need for manual intervention. This saves time for operators and allows them to focus on other tasks.
Reduced downtime: With a self cleaning strainer, there is no need to shut down the system for filter maintenance. This minimizes production downtime and ensures uninterrupted operation.
Environmental Impact: Self cleaning filters can contribute to environmental sustainability by minimizing waste and the need for disposable filter elements.
Complex design: Self cleaning filters are more complex in design compared to traditional filters. This complexity can make them more expensive to manufacture and maintain.
Higher energy consumption: self cleaning strainers require power to operate the cleaning mechanism, which can result in increased energy consumption compared to traditional filters.
Limited application range: Some self cleaning strainers are not suitable for handling certain types of contaminants or fluids. It is essential to choose the right filter for the specific application.

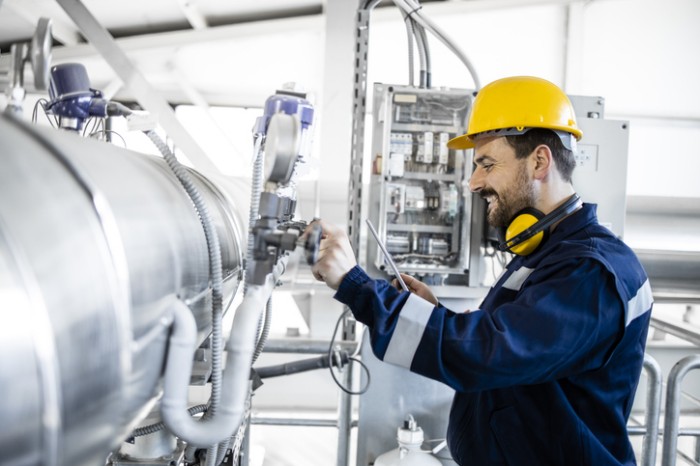

While self cleaning filters are designed to reduce the frequency of maintenance compared to traditional filters, they still require some level of maintenance. This is because the cleaning mechanism of the filter needs to be periodically checked and serviced to ensure its proper functioning.
Conducting an annual or bi-annual inspection of automatic self cleaning filters is sufficient to maintain their optimal performance. Regular maintenance tasks for self cleaning filters may include inspecting and cleaning the filter screens or elements, checking and replacing any worn-out or damaged parts, and ensuring that the cleaning mechanism is operating correctly.

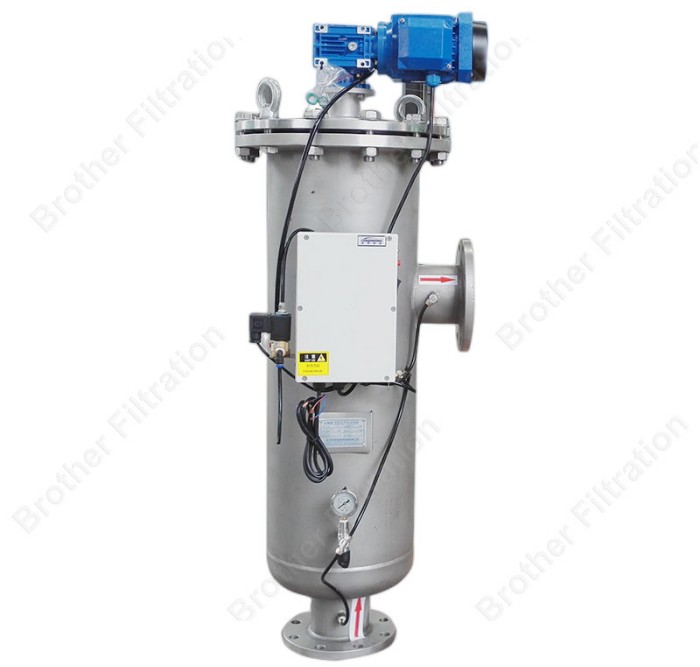

When it comes to choosing the right self cleaning filter, you consider your specific requirements and the applications it will be used for. One of the primary factors to consider is the amount of solids and sediment present in the water that needs to be filtered. This is a good starting point as it will help determine the appropriate filtration capacity and mesh size for the filter.
Additionally, it is important to consider the flow rate of the water and the desired level of filtration efficiency. The flow rate will influence the size and capacity of the filter required to handle the volume of water effectively. The desired level of filtration efficiency will determine the filtration rating of the filter, ensuring that it can effectively remove contaminants of the desired particle size.
Other factors that should be taken into account include the operating pressure of the system, compatibility with the fluid being filtered, and the maintenance requirements of the filter. It is essential to choose a self cleaning filter that can handle the specific operating pressure of your system to ensure optimal performance. Consider the compatibility of the filter with the fluid being filtered to prevent any chemical reactions or material compatibility issues. Lastly, understanding the maintenance requirements of the filter and ensuring they align with your resources and capabilities.

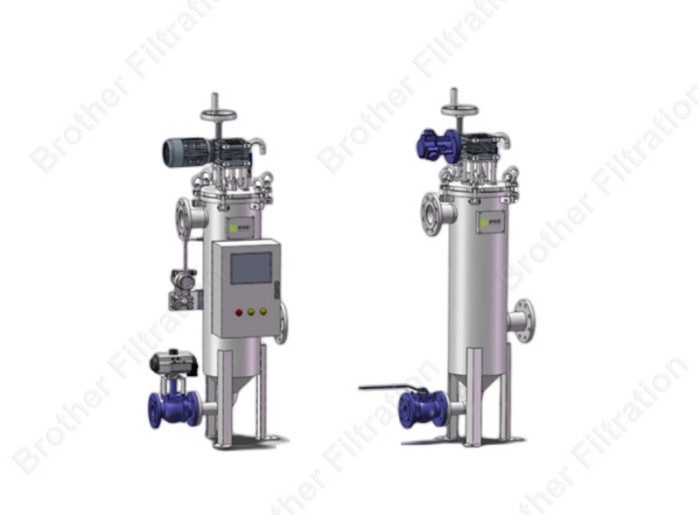

As technology continues its relentless march forward, so does the evolution of filtration. From traditional static filters to the dynamic efficiency of self-cleaning variants, the journey reflects a commitment to enhanced performance, reduced maintenance, and greater sustainability.
Brother Filtration has years of filtration experience and designs and manufactures all kinds of filter products. We provide four types of self cleaning filters for you to choose from. These fiters have better filtration efficience and longer service time. Contact us for a quotation!
