Comprehensive Comparison of
Sediment vs Carbon Filtration

Sediment and Carbon filtration are two common types of filtration equipment in water treatment systems. The main function of these filters is to remove harmful particles from water and improve water quality.

Sediment filters target small particles like sand and silt, enhancing water clarity and protecting downstream systems. Carbon filters, made from organic materials such as coal, wood, or charcoal, absorb odors and remove deeper impurities through oxidation reactions. These filters can be used alone or together for a more comprehensive solution. Here’s a comparison to help you choose the right option for your needs.

The Basics of Industrial Filtration

Industrial filtration is a process used to remove contaminants from liquids, gases, and air in various industries. It helps maintain equipment efficiency, improve product quality, and ensure compliance with environmental regulations. The two main categories of industrial filtration are liquid filtration and air filtration.

Filtration systems target specific contaminants, including particles, microorganisms, chemicals, and gases, based on the needs of the industrial process. This discussion will focus on sediment filtration and carbon filtration.

Sediment Filtration

Sediment filters remove solid particles from water, such as sand, dirt, rust, silt, and other debris commonly found in raw or untreated water. They serve as the first line of defense in water treatment systems, protecting sensitive downstream equipment like pumps, pipes, and other filtration components from damage or clogging.

Made from materials such as polyester, nylon, polypropylene (PP), or paper, sediment filters use multiple layers to capture particles of varying sizes. By efficiently removing larger particulates, they enhance water clarity and reduce the load on subsequent filtration stages.

Key Features:

• Primarily removes large particulate matter
• Protects downstream equipment and extends the lifespan of filtration systems
• Commonly used as the first stage of filtration in industrial processes

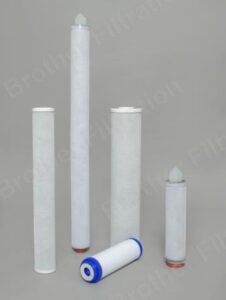

Carbon Filtration

Carbon filters are effective at removing dissolved organic compounds, chlorine, heavy metals, and volatile organic compounds (VOCs) from water. Made from activated carbon, these filters have a large surface area due to their porous structure, which enables them to adsorb impurities as water passes through.

The porous structure of activated carbon allows it to adsorb these impurities, significantly improving water quality. Carbon filters, including Granular Activated Carbon (GAC) filters and Carbon Block (CTO) filters, are versatile. They can be installed in both primary and secondary filtration stages, serving industrial processes and drinking water purification.

Key Features:

• Removes organic compounds, chlorine, and odors
• Enhances water quality by absorbing harmful substances
• Widely used in applications requiring high-quality, purified water

Key Differences Between Sediment and Carbon Filtration

Sediment and carbon filters serve different roles in water filtration. Sediment filters remove large particles like sand and silt, protecting equipment and preparing water for further treatment. Carbon filters focus on removing dissolved impurities, such as chlorine and organic compounds, improving water taste and quality. Typically, sediment filters are the first stage in filtration systems, while carbon filters operate in later stages to refine the water.

Types of Sediment Filter

Sediment water filters come in various types, each utilizing specific filtering media and principles to address distinct water treatment needs. Common types include:

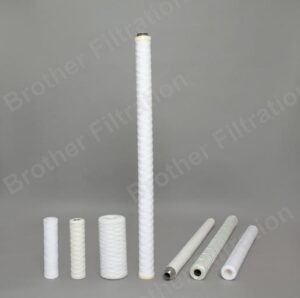

Wound String Filters

Wound string filters, also known as depth filters, use tightly wrapped string or fiber around a central core to trap sediment like sand, rust, and silt. Their layered structure captures particles of different sizes, ensuring efficient and reliable filtration as water passes through.

Melt Blown Filter

Melt blown Filters, also known as Spun Filters, are crafted from polypropylene fibers. They offer excellent dirt-holding capacity and support high flow rates, making them highly effective for sediment removal. Their dense structure captures fine particles, delivering clean and reliable water filtration.

Pleated Filters

Pleated filters feature a pleated media made from materials like polyester or cellulose, maximizing their surface area for efficient filtration. The pleated configuration enhances their ability to capture particles without causing significant pressure loss, contributing to a longer lifespan.

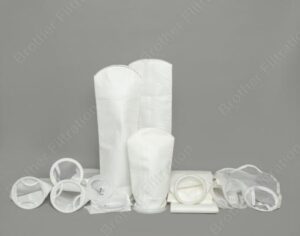

Bag Filters

Bag filters use a mesh or woven material to filter out larger sediments from water. They are a practical choice for applications requiring the removal of coarse particles. Simple to install and maintain, bag water filters are versatile enough for residential and industrial use.

Types of Carbon Filter h2

Carbon filters come in various types, each designed for specific water filtration needs. Here’s an overview of the common types:

Granular Activated Carbon Filters (GAC)

GAC filters use loose granules of activated carbon, providing a large surface area for adsorption. They are highly effective at removing chlorine, unpleasant odors, and organic compounds.

Carbon Block Filters (CTO)

CTO filters are made by compressing activated carbon into a solid block. Their dense structure allows them to trap smaller particles and provide more thorough filtration compared to GAC filters.

Powdered Activated Carbon (PAC) Filters

PAC filters use fine carbon particles to remove contaminants. They are often integrated into other filtration systems or used in industrial applications for advanced water treatment.

Catalytic Carbon Filters

Designed for specific chemical reactions, catalytic carbon filters excel at removing chloramines and reducing hydrogen sulfide, making them ideal for municipal water treatment.

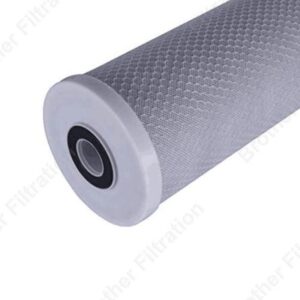

Impregnated Carbon Filters

These filters are infused with additional substances, such as silver or copper, to enhance antibacterial or chemical reduction properties. They are commonly used in applications requiring both filtration and sterilization.

Applications of Sediment and Carbon Filter

Sediment and carbon filters are widely used across various industries and settings due to their complementary capabilities in water filtration. Below is an overview of their applications:

Do You Need Both?

Many water filtration systems combine both sediment and carbon filters to provide a more effective and efficient purification process. By using them together, each filter type complements the other’s function, leading to improved overall performance.

Using both filters also extends the lifespan of each component. Since the sediment filter traps larger particles, the carbon filter has to handle fewer impurities, allowing it to last longer before requiring replacement. This combination results in cleaner water, better protection for your system, and more consistent filtration performance over time.

Concusion

Sediment and carbon filters each offer distinct advantages, and the choice between them should depend on factors such as water quality, the types of contaminants, and specific filtration needs.

For tailored filtration solutions that meet your specific needs, contact us today and explore Brother Filtration’s wide range of sediment filters and carbon filter options.
