When selecting a water filter cartridge, one important consideration is the micron rating. Understanding what a micron is and how it relates to filtration can help guide your decision.
This blog post will provide insights into microns and offer guidance on choosing the appropriate micron rating for your water filter cartridge.
When we choose a cartridge, one question that is always around is what the micron rating of our cartridge should be.
To figure this out, we need to know what is the micron rating of a cartridge. Then, according to our real operation conditions, selecting the right filter cartridges.
We get a lot of products that refer to microns so today we are going to dive into that a little bit to help you understand a lot of micron. This blog post is designed to help you figure out what a micron is and how to choose the micron rating of your cartridge.
The micron rating of a water filter indicates the size of particles it can effectively remove from water. Understanding this rating is crucial when selecting a filter for your needs, as filters are tailored to target specific types and sizes of contaminants.
Manufacturers of microchips and wires occasionally substitute the micron, a unit of measurement that is officially outmoded, for the micrometer, which is one-millionth of a meter.
It is denoted with the symbol: μm. However, in the filtration industry, a micron is also a very important factor.

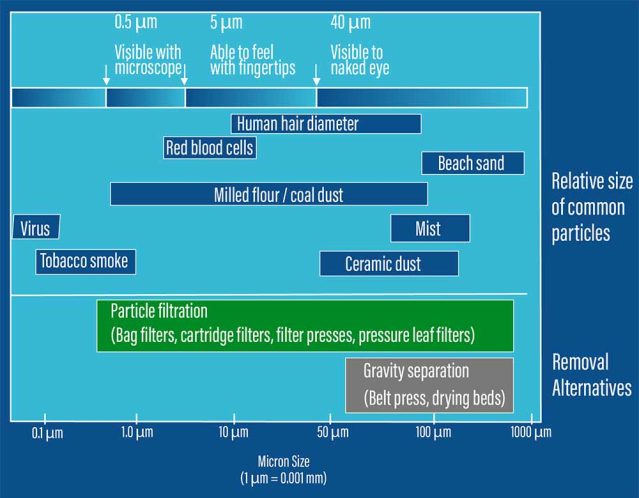

To make it more intuitive how little this is, red blood cells are roughly 7-8 microns in diameter, whereas a micron is comparable to the size of one grain of freshly ground flour.
A filter’s micron rating describes the size of the holes or pores in its surface and, consequently, the size of the particles it can remove from the water it filters.
As mentioned above, various micron ratings are available for filter cartridges. Different micron sizes can determine different removal of particles.
Bacteria and viruses cannot be removed from liquids by filters having a 10 micron rating. However, 10 micron is still incredibly small and can help various industries, from chemical plants to the oil industry, because of how much they can filter. 10 micron rated filters frequently clog, just like those with micron values lower than this.
Large amounts of particles are removed from liquid by filters having a 5 micron rating. While there are filters with smaller micron ratings, those below 5 micron are more prone to severe clogging or rapid buildup of debris. The filter fills up more quickly the lower the micron rating.
It is occasionally advised to utilize more than one filter when there are numerous particles, dirt, and debris to be filtered in order to avoid clogging. Many industries, notably the food and beverage sector, benefit from a 5 micron rating.
1 micron Filters can help reduce bacteria and cysts because their pores are too small for them to pass through with other particles smaller than one micron.
Besides other large particles, 0.5-micron filters can block parasitic cysts giardia cryptosporidium, chlorine, and organic chemicals.
Micron sizes are typically measured using specialized instruments and techniques designed to accurately determine the size of particles or features on a microscopic scale. Here are some common methods for measuring micron sizes:
Optical microscopy, electron microscopy, and scanning probe microscopy techniques can be used to directly visualize and measure the size of particles or features at the micron scale. These techniques provide high-resolution images that can be analyzed to determine particle size.
Transmission electron microscopy (TEM) and scanning electron microscopy (SEM) techniques can provide detailed images of particles at the nanometer to micron scale. These techniques allow for accurate measurement of particle size and morphology.
Laser diffraction involves passing a laser beam through a sample and analyzing the resulting diffraction pattern to determine the distribution of particle sizes.
The Coulter Counter is an instrument that uses electrical impedance to measure the size of particles. It involves suspending the sample in a conductive liquid and passing it through a small orifice. As the particles traverse the aperture, they cause a disturbance in the current flow, which is quantitatively analyzed to determine their size.

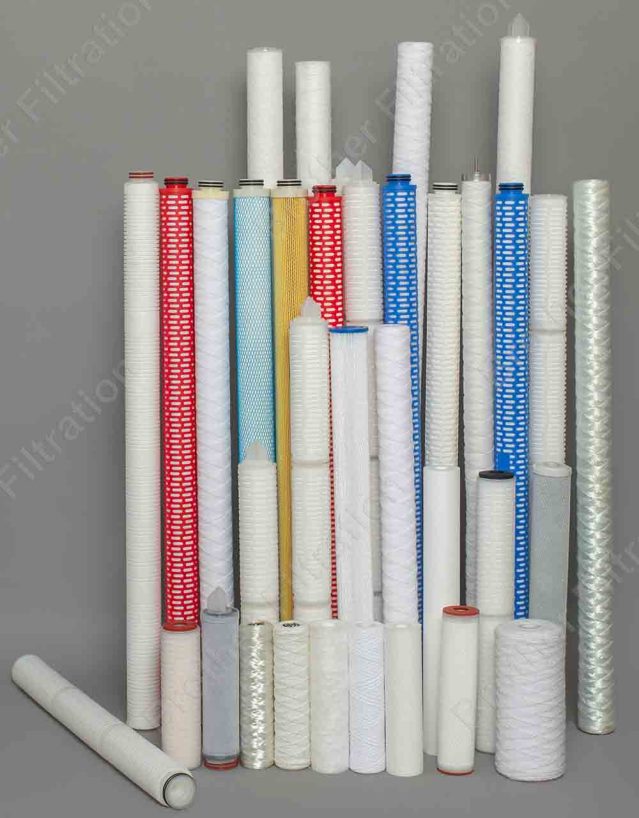

The smallest particle size that each cartridge filter is capable of eliminating is indicated by its micron rating. All types of filter cartridges have micron values ranging from 50 microns to 0.035 microns. For filtration, micron rating can be Nominal rating or Absolute rating.

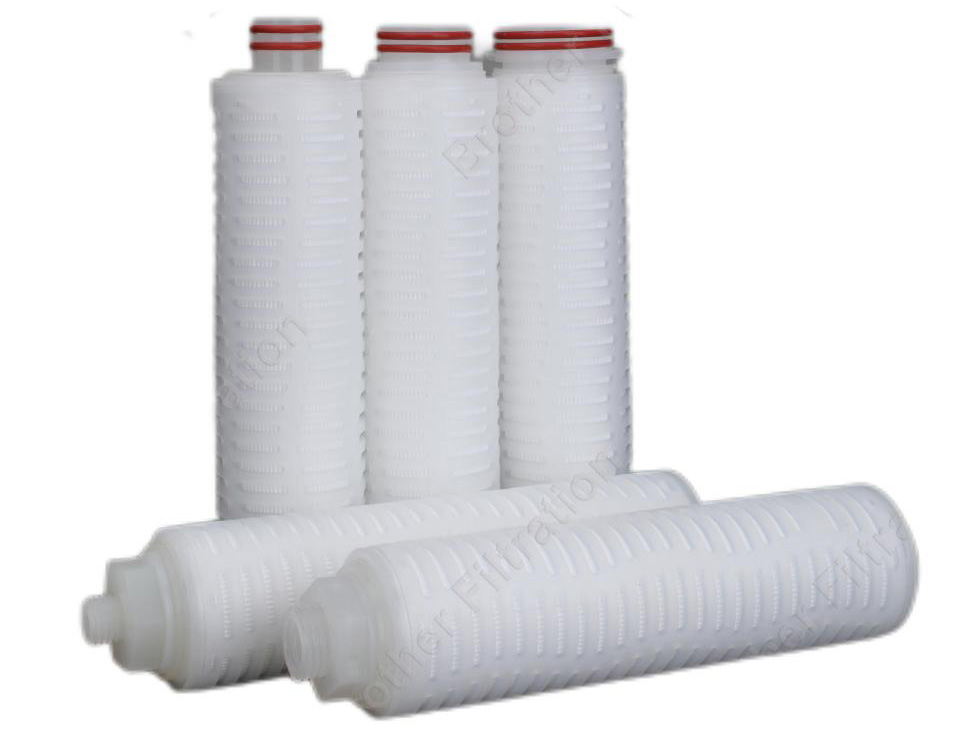

A nominal micron rating indicates the average particle size that the filter can effectively capture.A nominal rating means that 95% of the particles with a diameter of that micron will be captured by the filter cartridge. Nominal ratings are often used for filters where exact precision is not crucial, and some variations in filtration efficiency are acceptable.
Nominal rated water filters serve the purpose of disinfecting and eliminating particulates, chlorine and its by-products, chemicals, and addressing taste and odor concerns. Carbon filter cartridges fall under the category of nominal rated filters.
An absolute micron rating specifies the maximum particle size that the filter will reliably remove. In other words, it ensures that no particles larger than the absolute rating will pass through the filter under standard operating conditions. 99% of the particles will be removed by the filter, according to an absolute rating.
Such water filters are employed in scenarios where it’s imperative to eliminate all contaminants, such as in sterilization and final filtration processes. Pleated membrane cartridges fall into the category of absolute rated filters.
A micron filter, also referred to as a microfiltration filter, is a crucial component utilized in industrial settings to eliminate contaminants and particles from liquids or gases. Its primary function is to capture particles larger than a specific size, typically measured in microns
Micron filters find widespread use across diverse industries, including manufacturing, pharmaceuticals, food and beverage, and water treatment. They play an indispensable role in upholding cleanliness and safety standards by efficiently eliminating impurities such as sediment, debris, bacteria, and other harmful particles.
Constructed with a porous membrane composed of materials like polyester, polypropylene, or nylon, the pore size determines these filters’ filtration efficiency. For instance, a 10-micron filter can effectively capture particles as small as 10 microns in size. Some micron filters also incorporate additional technologies like activated carbon to remove odor, color, or specific contaminants.
Water filters with different micron ratings are designed to remove specific types and sizes of contaminants. The micron rating of a filter refers to the size of particles it can effectively capture. Here are some common types of contaminants and the corresponding micron ratings of water filters that can remove them:
Sediment and debris: Sediment and larger particles can be filtered out by water filters with micron ratings of 1 to 5 microns. These filters effectively remove sand, silt, rust, and other visible particles.
Cysts and bacteria: For the removal of microscopic contaminants like cysts (e.g., Cryptosporidium, Giardia) and bacteria, water filters with micron ratings of 0.2 to 1 micron are recommended. These filters are designed to capture these small organisms and provide protection against waterborne diseases.
Chemical contaminants: Certain water filters, such as activated carbon filters, can effectively remove chemical contaminants like chlorine, volatile organic compounds (VOCs), and pesticides. These filters typically have an absolute pore size (APS) rating below 0.5 microns to ensure effective removal of these smaller molecules.
After realizing what micron and micron rating are, it is simple and easy to select a appropriate filter cartridge. As we mentioned above, micron rating determines the smallest particle size, which can be removed. Choosing a filter cartridge is depend on your water supply.
You just need to make sure what kinds of liquids you want to filter or what kinds of particles and contaminants you want to gain from the liquids. You can based on the data details of every filter cartridge, choose filter cartridges. But one thing you should notice, that the quality of water supply various from different places, this is also an important factor you need to consider.
Sometimes, filtration is not only filter out the contaminants, but also collect something we need, such as catalyst. The size of the things you want to collect is another consideration for selecting filter cartridges.
According to the different requirements of micron ratings and other factors, our high flow filter cartridges and melt blown filter cartridges are preferred by many customers.

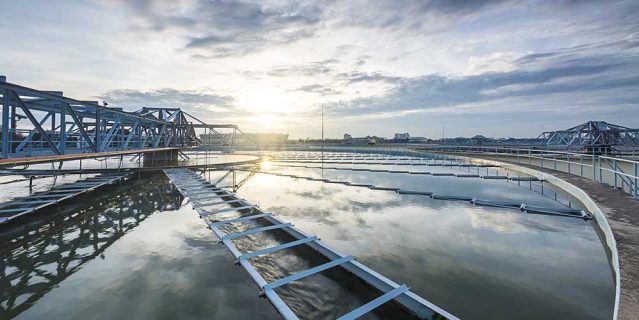

Using a high-quality water filter in industrial settings offers significant advantages. Firstly, it effectively removes impurities and contaminants from water, ensuring the purity required for production processes, thereby enhancing product quality and consistency. Secondly, high-quality water filters reduce equipment damage and maintenance costs, prolonging equipment lifespan, and improving production efficiency and reliability.
Key Advantages:
Micron rating is an important factor to the effectiveness and filtration performance of a filter cartridge or a filter bag. If you want to get a perfect filtration result, it is essential to select the right micron rating for your operation condition.
If you want to know more about microns, or choose a proper filter cartridges based on needed micron ratings, feel free to contact us.
