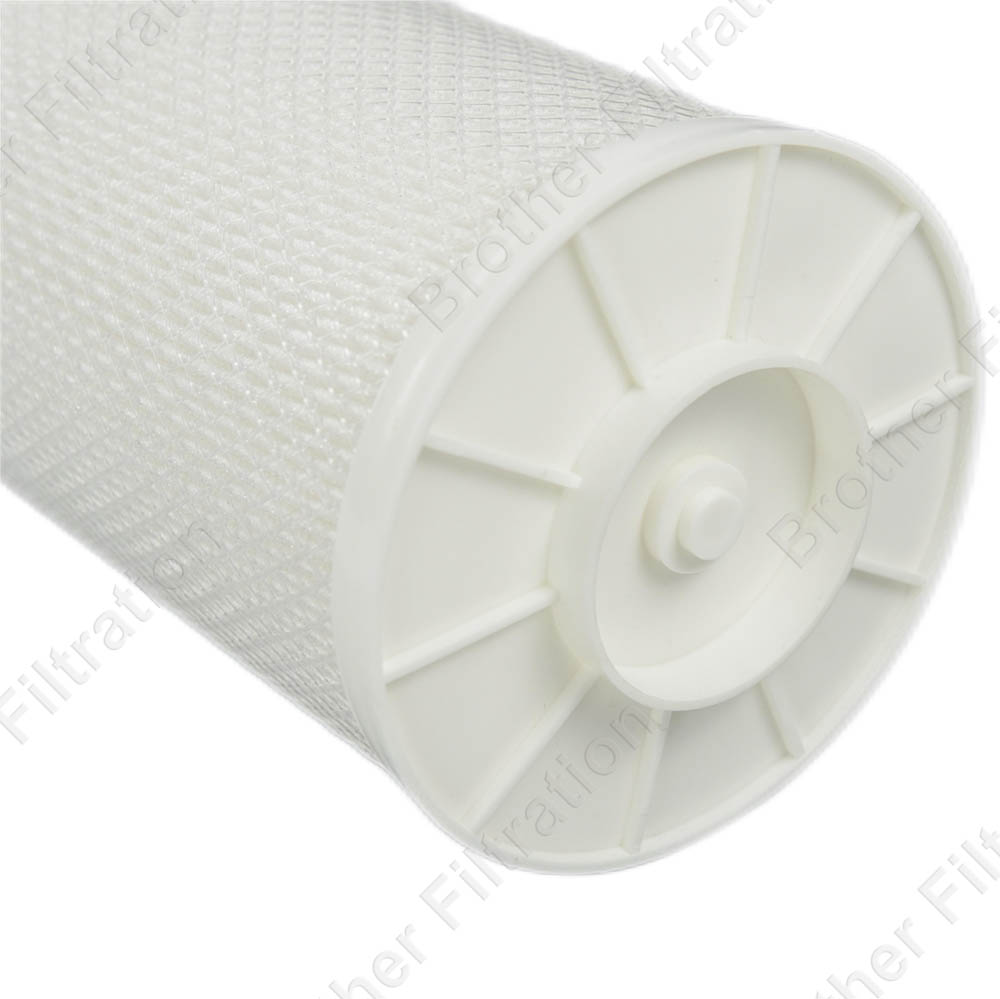

Polykleen Bag Pleated High Flow Filter Cartridge

Description

Polykleen Bag Pleated High Flow Filter Cartridge is a perfect replacement of Pall Marksman high flow bag filters. High flow bag pleated filters are inside-to-outside fluid flow, combining the performance advantages of filter cartridges and filter bags used in bag filter systems. High flow bag filters provide high quality benefits and economic value, not only shown in more effective filtration area with higher flow rate brought by pleated design, but also shown in longer service life and lower operating costs.



Product Features of Polykleen Bag Pleated High Flow Filter Cartridge

  • High dirt-holding capacity pleated construction makes high efficiency
  • Greater surface area compared with traditional bag filter
  • Wide range of chemical compatibility
  • Fitting into all standard filter bag baskets and housings
  • Nominally rated with retention ratings between 1-100µm at 90-95% efficiencies
  • Absolute rated with retention ratings between 1-20µm at 98-99% efficiencies
  • Silicone free construction
  • Two layers of polypropylene or glass fiber media along with thermally bonded end caps
  • Help prevent particulate bypass and offers 5-10 times the surface area of standard bag filters
  • Polypropylene materials in compliance with FDA regulations for food contact under CFR21
  • Type A can be fit in CSC/CST Classic Single Bag Housing and Classic Multi Bag FilterHousing; Type B can fit in Falt Single Cartridge Stainless housing.



Applications of Polykleen Bag Pleated High Flow Filter Cartridge

  • Prefiltration for RO Desalination
  • Oil & Gas
  • Power Generation Condensate System
  • Petrochemicals
  • Food & Beverage
  • Pharmaceutical
  • Automotive Wastewater



Technical Data

Materials

Filter Media Polypropylene/Glass Fiber
Inner Core& Outer cage & End caps Polypropylene
Gasket EPDM/Silicone/Buna-N/Viton



Size

Length 320mm (equivalent bag filter size#1)

660mm (equivalent bag filter size#2)

OD 6inch(152mm)



Filtration area [email protected]#1 PP, [email protected]#2 PP

[email protected]#1 GF, [email protected]#2 GF



Operation conditions

Max. Temperature ~80 ℃
Recommended DP for change-out 2.1-2.4bar

Max. Flow Rate Recommended Flow Rate
Size 1# 25m³/hr 15m³/hr
Size 2# 40m³/hr 25m³/hr



Order Information



BHFB -PP -1 -N -0100 -E -H
Model Media Material Length Filtration Efficency Micron Rating O-ring Surface Treatment
 Polykleen Bag Pleated High Flow Filter Cartridge PP=Polypropylene
GF=Glass Fiber
1= Size 1
2=Size 2
N=Nominal        A=Absolute(1-20um) 0100=1um
0500=5um
1000=10um
1500=15um
2000=20um
4000=40um
7000=70um
10000=100um
E=EPDM
S=Silicon
V=Viton
B=Buna-N
H=Hard Cage
N=Netting



1 Inch =25.4 mm
Notice: Due to filter has variety in design, please contact with BROTHER sales for more information



Housing Options of Polykleen Bag Pleated High Flow Filter Cartridge

Classic Bag Filter Housing

Classic Bag Filter Housing
