The Self-Cleaning Filter: An Essential Tool for Industrial Filtration

In today’s industrial landscape, maintaining the quality and purity of various substances such as resin or coat is of utmost importance. To achieve this, industries rely on automatic self cleaning filter, and advanced filtration systems designed to effectively remove impurities and ensure product integrity.

In this blog post, we will explore the workflow, internal structure, advantages, applications and steps involved in utilizing self-cleaning filters in these industries.

How Does The Automatic Self-Cleaning Filter Work?

Self-cleaning filters employ an innovative and efficient filtration process. Those begin their work by trapping and retaining unwanted impurities and contaminants present in the substances being processed. The filtration process involves the passage of the substance through a series of filtering elements, which effectively remove particles of varying sizes.

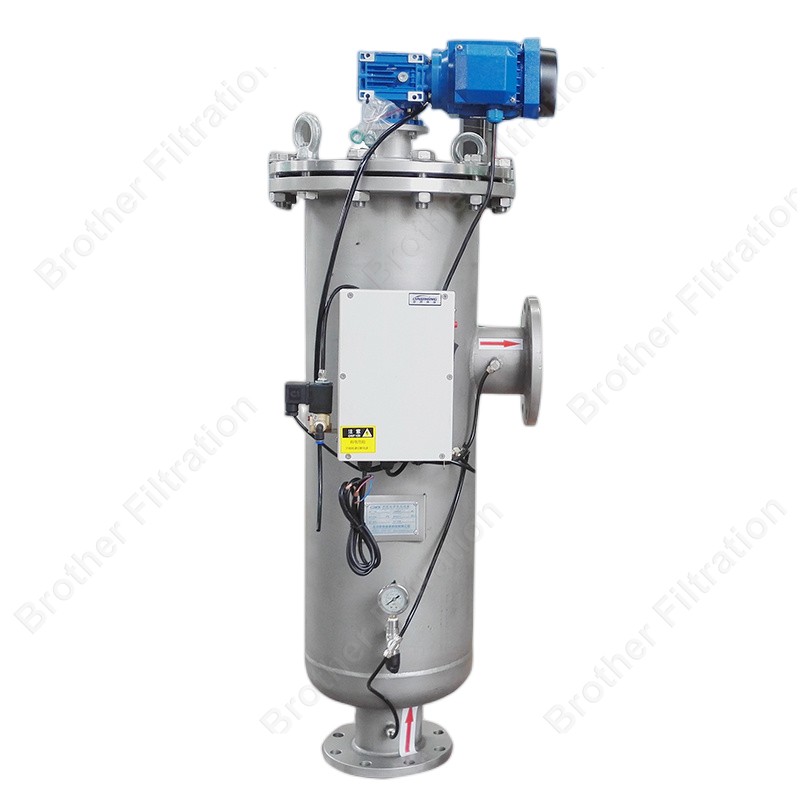

Once the filtration cycle is complete and the filter becomes clogged or reaches its capacity, the self-cleaning mechanism kicks in. A rotary scraper uses a gear motor to drain the pollutants from the filter due to its carefully calibrated position and ideal scraping angle. This process involves the removal of accumulated debris from the filter elements, ensuring optimal performance and preventing premature blockages.

After cleaning, the self-cleaning filter resumes its operation, ready to handle the next batch of substances. This continuous operation minimizes downtime and ensures a consistent flow of filtered products.

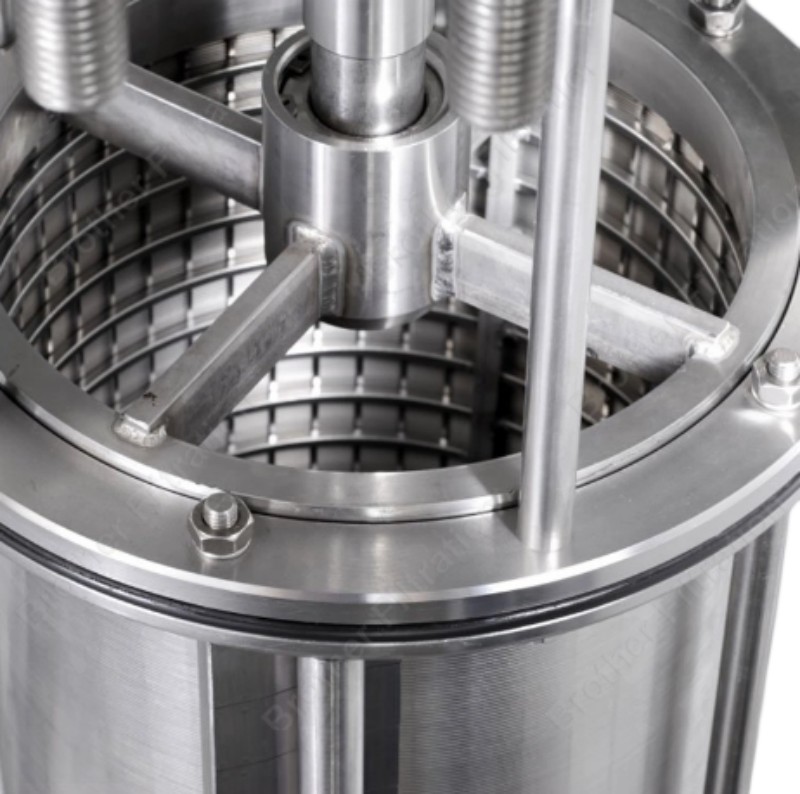

Internal Structure of a Self-Cleaning Filter

Self-cleaning filters are built with a robust internal structure to support their efficient functioning. Some essential components include:

Filter Elements

These are designed to capture and retain contaminants during the filtration process. Filter elements may vary depending on the industry and specific application, but they are often made of materials like stainless steel or specialized alloys.

Control System

The self-cleaning filter relies on a sophisticated control system that monitors factors such as pressure, flow rates, and filtration efficiency. The control system initiates the cleaning process when predetermined thresholds are reached, ensuring optimal performance.

Cleaning Mechanism

Self-cleaning filters employ various cleaning mechanisms such as backwashing, suction, or mechanical scraping to remove accumulated particles from the filter elements. The cleaning process can be automated or triggered manually, depending on system requirements.

Advantages of Self-Cleaning Filters

The use of self-cleaning filters offers several advantages for industries operating in the resin, paint, and other sectors:

Enhanced Efficiency: Self-cleaning filters maintain a consistent flow rate and prevent clogging, resulting in uninterrupted production and improved efficiency.

Cost Savings: By reducing the need for manual cleaning or replacement of filter elements, self-cleaning filters contribute to cost savings in labor and maintenance.

Product Quality: The removal of impurities results in higher-quality end products, meeting industry standards and customer expectations.

Environmental Considerations: Self-cleaning filters help in minimizing the discharge of waste materials into the environment, reducing the environmental impact of industrial processes.

Steps for Utilizing a Self-Cleaning Filter

Utilizing a self-cleaning filter involves several important steps. Here are the key steps to consider:

Step 1: Begin by assessing your specific filtration needs and requirements. Identify the type and size of particles or impurities you need to remove, as well as the desired filtration efficiency and flow rate.

Step 2: There are different types of self-cleaning filters available, such as backwash, automatic, or self-flushing filters. Choose the filter that best suits your application based on factors like filtration capacity, operating pressure, and compatibility with the filtered material.

Step 3: Follow the manufacturer’s instructions to properly install the self-cleaning filter. Ensure that it is connected correctly to the pipeline or system where it will be used. Take note of any specific installation considerations, such as orientation, flow direction, or external support requirements.

Step 4: Self-cleaning filters are designed to remove accumulated debris or particles from the filtration element automatically. Adjust the cleaning mechanism settings, such as frequency, duration, and intensity, to match the filtration requirements and the characteristics of the filtered material.

Step 5: Regularly monitor the performance of the self-cleaning filter to ensure it is operating effectively. Check for any signs of clogging, pressure drop, or malfunction. Clean or replace filter elements as needed according to the manufacturer’s recommendations.

Step 6: Fine-tune the operation of the self-cleaning filter over time to achieve the desired filtration efficiency, flow rate, and maintenance intervals. Make adjustments to the cleaning mechanism settings if necessary to optimize performance and minimize downtime.

Step 7: Conduct periodic inspections of the self-cleaning filter to evaluate its overall condition. Perform routine maintenance tasks, such as lubrication, seal replacement, or calibration, as recommended by the manufacturer. This will help to extend the filter’s lifespan and ensure reliable operation.

Applications of self-cleaning filters

Self-cleaning filters are indispensable tools in many industries. By utilizing self-cleaning filters, industries can effectively ensure the purity and integrity of their products, ultimately enhancing customer satisfaction and market competitiveness.

Resin industry

Self-cleaning filters are utilized to remove impurities and particles during the production and filtration stages. These self cleaning filters help maintain the purity of the resin, resulting in enhanced product quality and consistency.

The use of inline filters in the Resin industry enables a higher throughput rate compared to traditional static basket strainers. These strainers often get blocked up and require frequent cleaning, leading to maintenance hassles. Inline filters effectively remove contaminants, allowing the resin to be processed and stored in drums without interruptions.

Coating industry

Self-cleaning filters are extensively used to remove particles, sediments, and impurities from coating formulations. These filters ensure a smooth and consistent coating application by eliminating contaminants that could compromise the finish.

By maintaining the purity of the coating materials throughout the production process, self-cleaning filters enhance product quality, reduce defects, and improve overall efficiency in the coating industry.

Grain and Oil industry

Self-cleaning filters in the Grain and Oil industry utilize a process that involves the use of system pressure to clean themselves. The filters are equipped with a rigid cylinder screen that strains the particles from the grain or oil source and traps the debris inside.

As the filtering process continues, a buildup of debris occurs, causing a differential pressure between the inlet and outlet of the filter. When the pressure differential reaches a predetermined control level, a flush cycle is initiated to remove the accumulated contaminants from the filter.

FAQ

How often does a self-cleaning filter need to clean itself?

Most units clean automatically when pressure builds up to a set level, not on a fixed schedule. This can range from every few minutes to once a day, depending on how dirty the fluid is.

What’s the difference between a scraper self-cleaning filter and a backwash filter?

A scraper filter uses a rotating blade to physically scrape debris off the screen. A backwash filter reverses the flow to flush debris out. Brother Filtration offers both types.

Can a self-cleaning filter run without stopping production?

Yes. The cleaning cycle happens while the filter stays in operation, so fluid keeps flowing and production doesn’t need to pause.

What industries use automatic self-cleaning filters?

They’re common in resin production, paint and coating, grain and oil processing, and water treatment, anywhere fluids need continuous filtering with minimal manual cleaning.

How long do self-cleaning filter elements last?

With proper maintenance, filter elements can last one to several years. Lifespan depends on the material, the fluid being filtered, and how often the cleaning cycle runs.

Conclusion

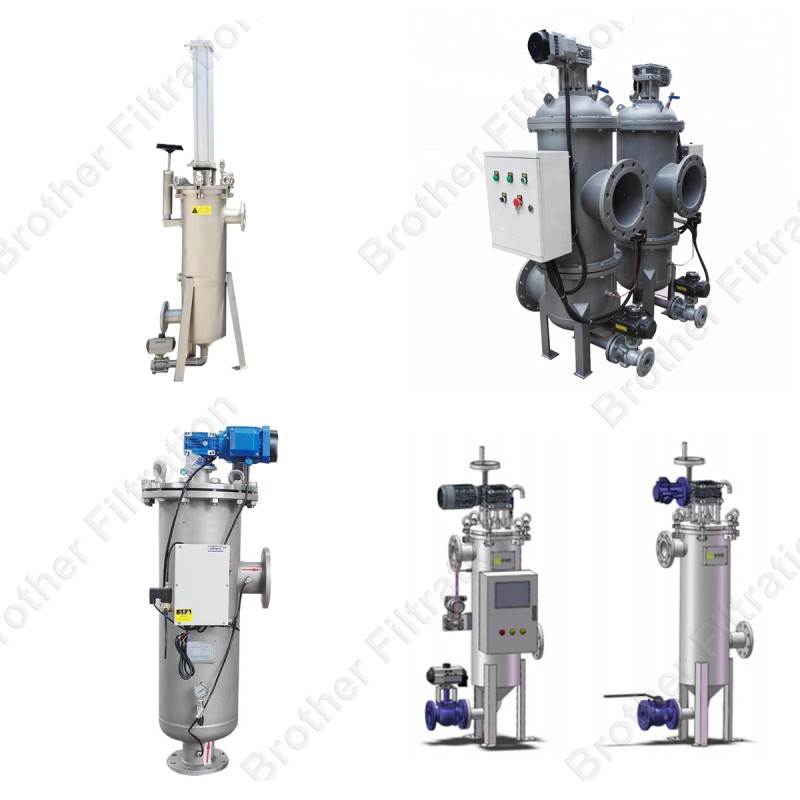

As a filter manufacturer Pioneer, we provide 4 types of Pneumatic disc filters, Outer scraper self-cleaning filters, Inner scraper self cleaning filters, and Automatic backwash filters for you to choose from.

If your filtration system is becoming more demanding in terms of maintenance or if you’re considering an upgrade, an automatic self-cleaning filtration system is worth considering.  If you’re seeking a solution that optimizes your business operations, do not hesitate to contact us for more information.
